Description

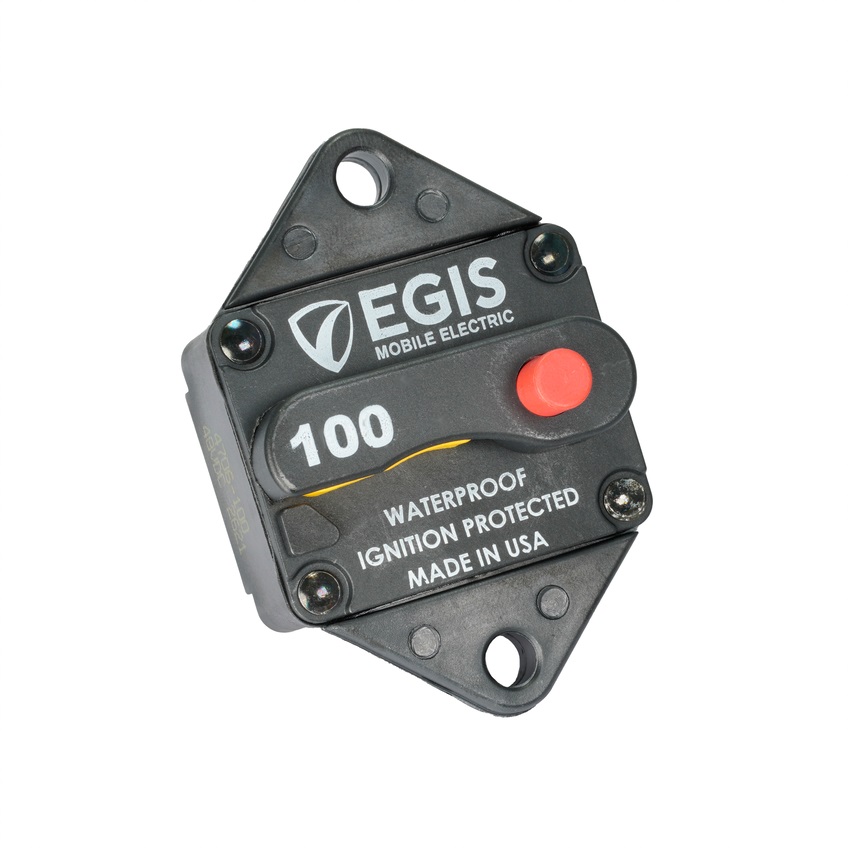

EGIS 285-Series 100 Amp Circuit Breaker Panel Mount
Model: 4706-100
- ON/OFF High Visibility Controls Sealed against dust and moisture penetration. High temp rated for all installation locations.
- Panel Mount Flange Provides Rear / Front panel installation options.
- Stainless Steel Hardware / KEPS Locking Nuts Corrosion and vibration resistant for harsh environment applications.
- Made in the USA of high quality components.
Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation.
High Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.
High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current.
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power.
4 Year Warranty: We stand behind our product’s ability to meet your needs.
Specifications
| CONTINUOUS CURRENT (AMPS) | 100 |
| CONTINUOUS CURRENT (AMPS) | 48 |
| CYCLING ENDURANCE | 6,000 |
| INTERRUPT CURRENT @ 16 VDC (AMPS) | 5,000 |
| INTERRUPT CURRENT @ 28 VDC (AMPS) | 3,000 |
| INGRESS PROTECTION RATING | IP67 |
