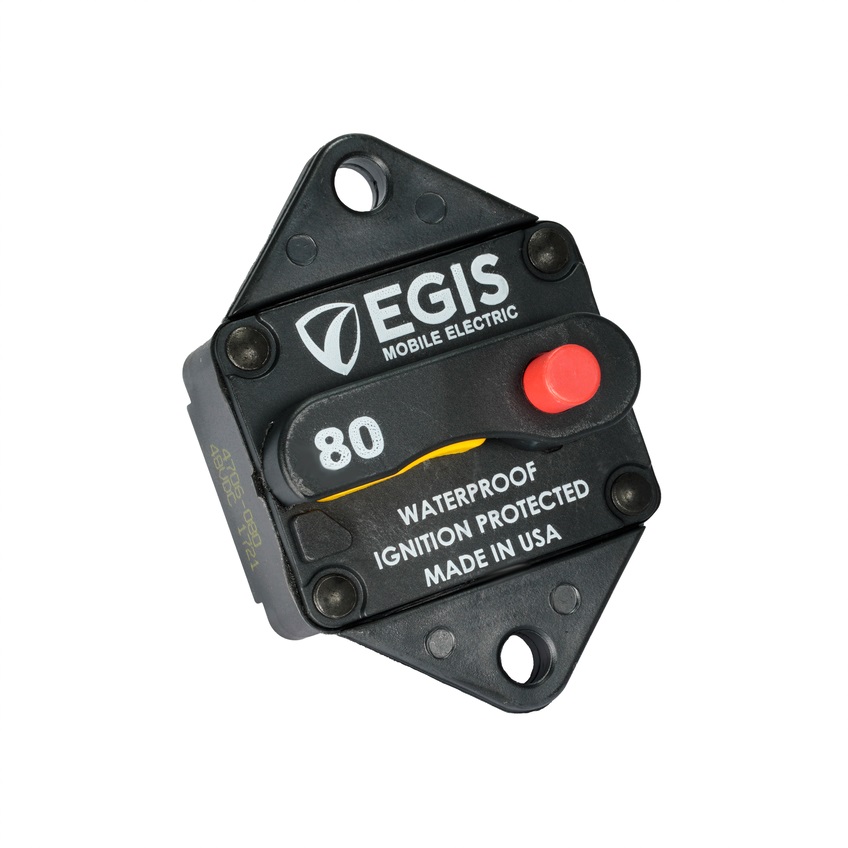

EGIS 285-Series 80 Amp Circuit Breaker Panel Mount

EME4706080
Egis Mobile Electronics

$46.00 $27.17

5 in stock
Qty :

Description

EGIS 285-Series 80 Amp Circuit Breaker Panel Mount

Model: 4706-080

  • ON/OFF HIGH VISIBILITY CONTROLS Sealed against dust and moisture penetration. High temp rated for all installation locations.
  • PANEL MOUNT FLANGE Provides Rear / Front panel installation options
  • STAINLESS HARDWARE / SERRATED FLANGE NUTS Corrosion and vibration resistant for harsh environment applications.

Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation

High Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering improved protection for 36 and 48 Vdc systems rather than using fuses.

High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current

High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power

4 Year Warranty: We stand behind our product’s ability to meet your needs.

Specifications

CONTINUOUS CURRENT (AMPS) 80
Max Voltage (vdc) 48
cycling ENDURANCE 6,000
Interrupt Current @ 16 Vdc (Amps) 5,000
INTERRUPT CURRENT @ 28 VDC (AMPS) 3,000
ingress protection rating IP67

Additional information

Weight 0.00 lbs
Model Number 4706-080
UPC 850035199060
