Description

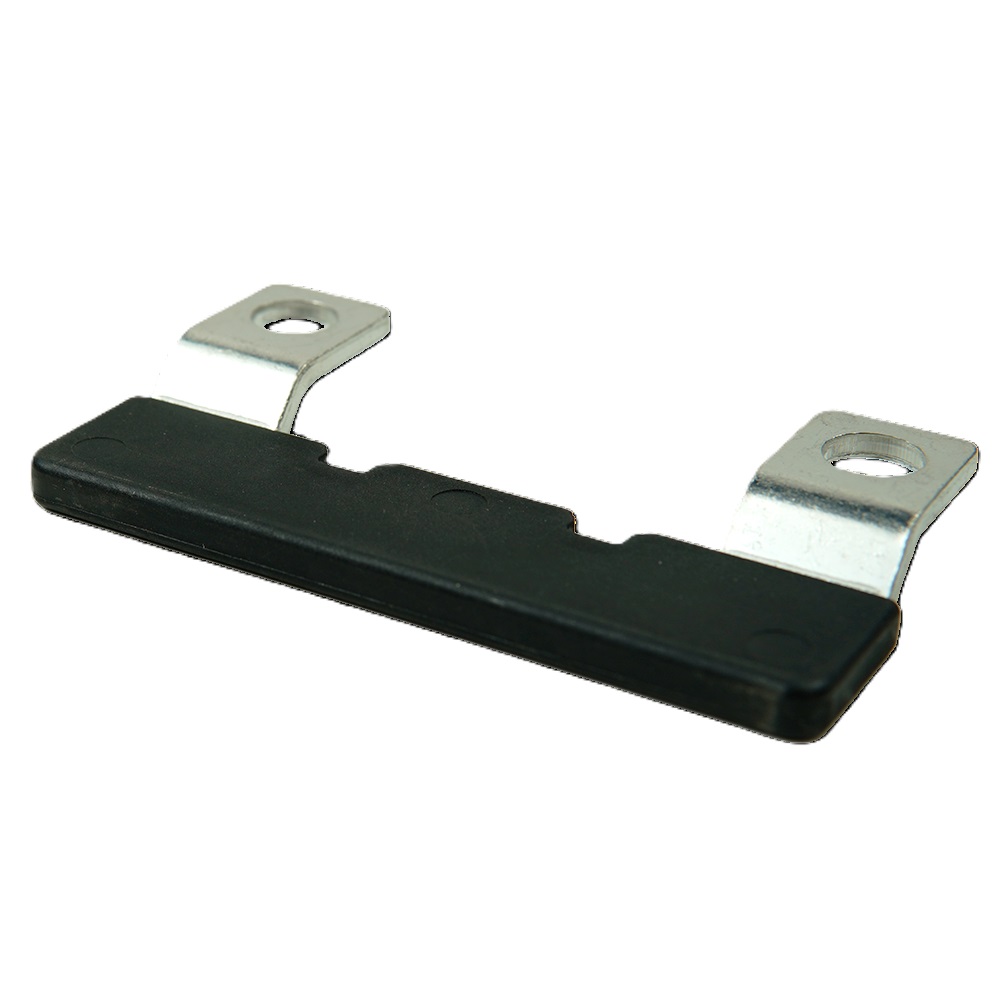

EGIS Crossover bus XD Relay Overmolded
Model: 8791
Tin Plated Copper to ensure reliable circuit connectivity and anti-corrosive feature keep it last long term.
Robust Protective Insulation ensure no accidental contact shorts between XD relays.
Specifications
| CONTINUOUS CURRENT (AMPS) | 500 |
| MAX VOLTAGE (VDC) | 72 |
| MATERIAL | Tin Plated Copper |
| SIZE | 90mm L x 47mm W |
| THICKNESS | 2.8 mm (1/8″) |
| Terminal Stud Hole Size | 10.5mm (3/8″) |
