Egis MRBF Dual Output Terminal Block – 30-300 Amp

107409
Egis Mobile Electric

$19.89 $12.57

0 in stock
Qty :

Description

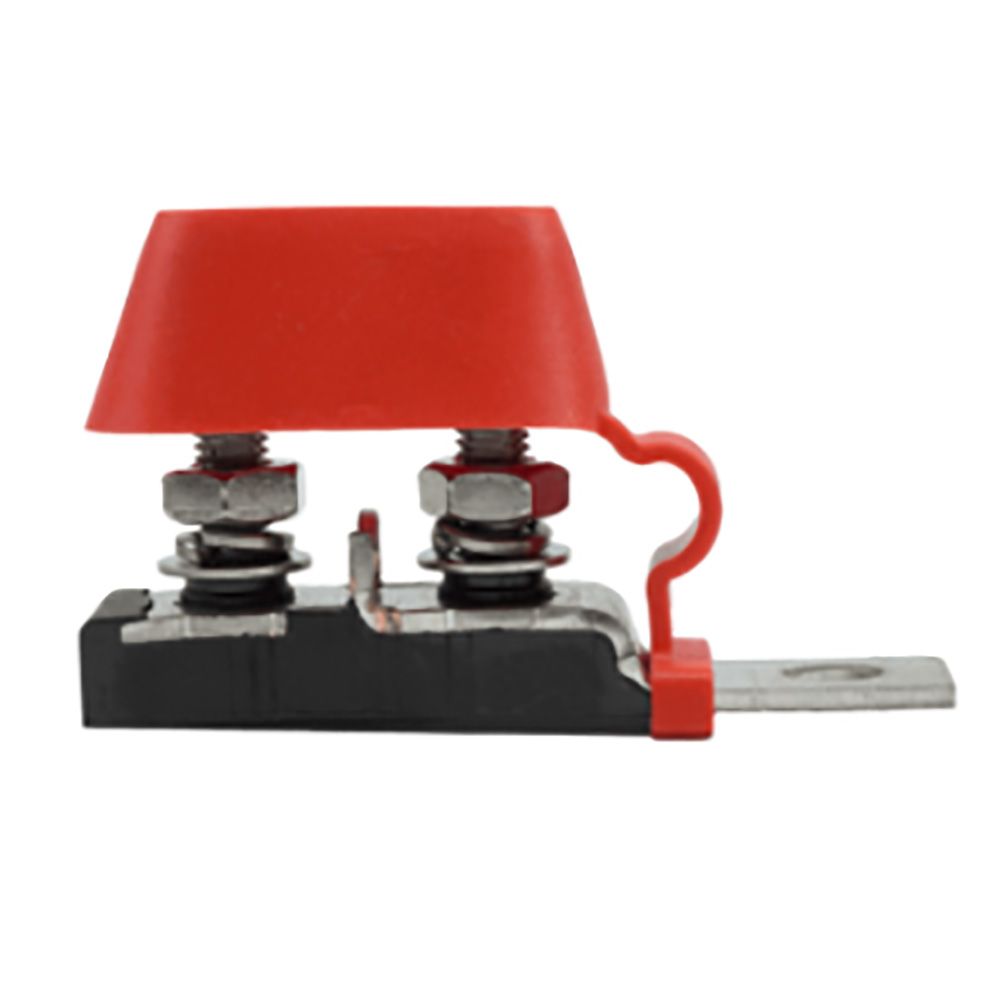

MRBF Dual Output Terminal Block – 30-300 Amp

Features:

  • Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
  • Ignition Protected When Used With Egis Mobile Electric MRBF Fuses safe for installation in closed compartments with potential explosive gases. Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
  • Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
  •  58 Vdc Rating: easily supports 12 to 48V nominal applications.
  • 4-Year Warranty: We stand behind our product's ability to meet your needs.

Specifications:

  • Continuous Current (Amps): 30-300A
  • Stud Size: M8 (5/16")
  • Mounting Hole Size: M10 (3/8")
  • Interrupt Rating @ 48 Vdc (Amps): 5,000
  • Interrupt Rating @ 58Vdc (Amps): 2,000
  • Ingress Protection: IP66

Amperage = 30-300 | Fuse Type = Terminal | Type = Fuse Blocks

Additional information

Weight 0.3 lbs
Dimensions 5 × 3 × 3 in
Model Number 3602
UPC 850053879531
