Description

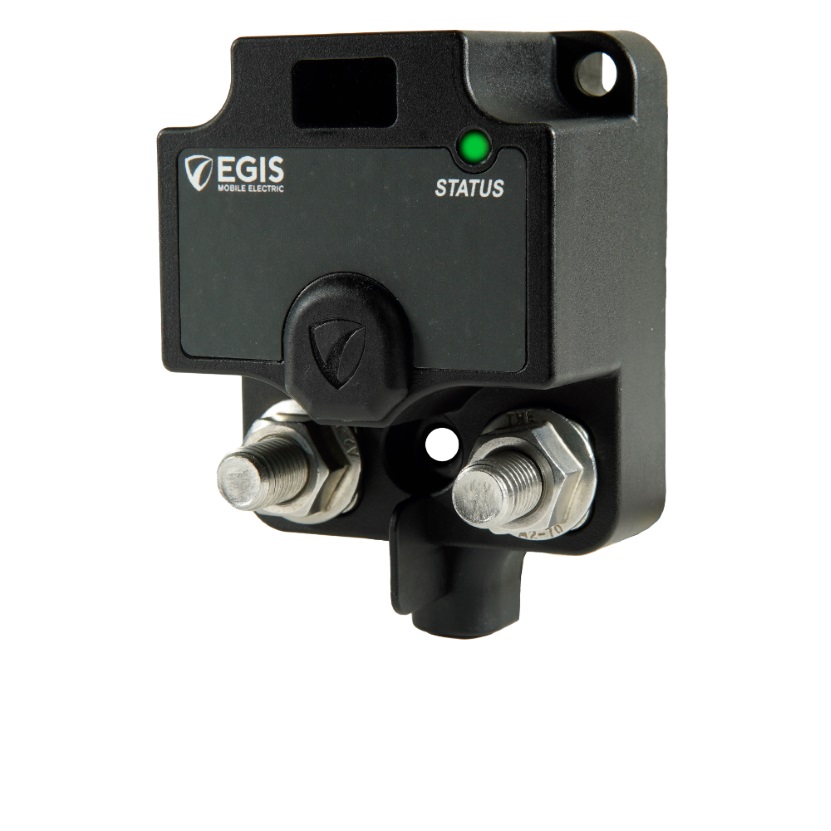

EGIS XD Single Solenoid Tinned Wires
Model: 8710-1600
- LED STATUS DISPLAY:
Easy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED - 40 CIRCUIT LABEL SHEET INCLUDED:
Convenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications. - PROTECTIVE COVER INCLUDED:
Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. - STAINLESS HARDWARE:
Corrosion is no issue with quality stainless steel studs and self locking flanged nuts. - PROGRAMMABLE:
Via dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications. - SMALLER FOOTPRINT:
XD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum. - INTEGRATED VENT:
High quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.
Bullet-proof Construction: Sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware.
Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.
Plug & Play Compatible with Legacy Competitor Products: Single, dual and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays.
90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality
Specifications
| 500 | |
| MAX CRANKING CURRENT (AMPS) | 1500 |
| MECHANICAL SWITCHING LIFE | 1,000,000 Cycles |
| VOLTAGE RANGE (V DC) | 8 – 36 |
| OFF-STATE CURRENT DRAW (mA) | 1.3 |
| STATE CHANGE CURRENT | 5A @ 12 Vdc / 3A @ 24 Vdc |
