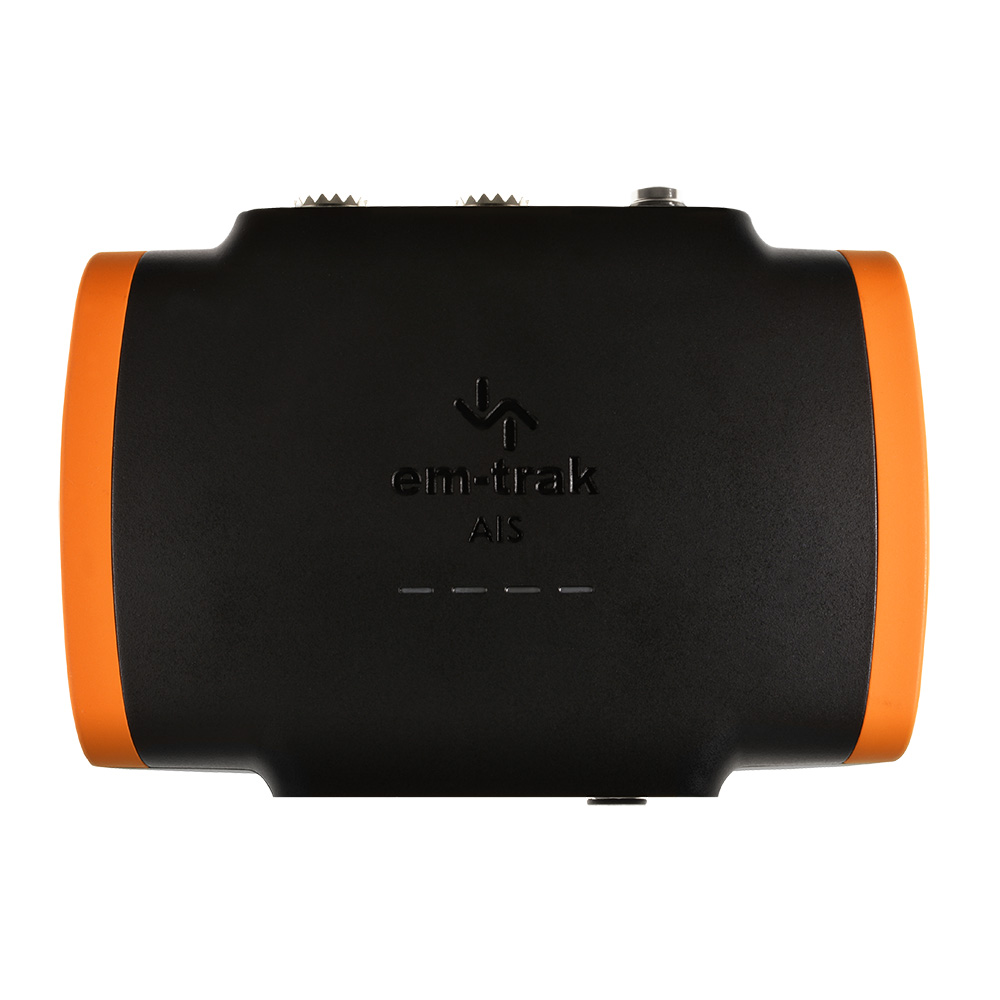

em-trak B954 Class B AIS Transceiver – 5W SOTDMA w/WiFi, Bluetooth, & VHF Antenna Splitter

98708
em-trak

$1318.00 $1186.00

(MRP Pricing)

29 in stock
Qty :

Description

B954 Class B AIS Transceiver – 5W SOTDMA with WiFi, Bluetooth, & VHF Antenna Splitter

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at the time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner’s signature on the completed programming form.**

Click here to download form.

The B954 is the most feature-rich high transmit power (5W SOTDMA) AIS transceiver in the B900 range. The B954 combines Wi-Fi & Bluetooth for seamless wireless connectivity and AIS data streaming to any mobile device, PC or wearable, with an integrated VHF antenna splitter to enable your transceiver to share your existing VHF antenna without any loss of performance. Like all B900 transceivers, it also includes an integrated next-generation GPS receiver and antenna and is designed for em-trak’s unique FLEXI-FIT® bracket system to make installation as easy as possible.

Lightweight and completely weatherproof, the B954 delivers the very best AIS receive and transmit performance with increased range and transmission priority. Your transceiver will also work with our CONNECT-AIS mobile phone app to make programming, configuration, and transceiver health monitoring simple and convenient.

Features:

  • Certified AIS Class B – 5W SOTDMA
  • Integrated WiFi and Bluetooth
  • Integrated VHF antenna splitter
  • Global certification – USCG / FCC / Canada / Europe
  • SRT-AIS™ Transceiver Engine for superlative proven performance
  • FLEXI-FIT™ bracket system for easy, convenient, and secure installation
  • Internal high-performance GPS receiver and antenna (external antenna optional)
  • Water, pressure spray, and damp proof (IPx6, IPx7 certified)
  • Protected from vibration, shock, and extreme temperatures
  • Small and lightweight
  • Ultra-low power consumption – best in class
  • Guaranteed connectivity and interoperability with any app, chart plotter, smartphone, tablet, or PC
  • NMEA 0183 & NMEA 2000
  • Automated health and performance monitoring
  • Silent mode (transmit-off) function
  • Enhanced RF screening to protect against electromagnetic interference
  • Built-in power surge protection
  • Fail-safe VHF radio operation

Physical & Environmental Specifications:

  • Size (H x W x D): 150 x 115 x 45mm
  • Weight: 425kg
  • Operating temperature: -25°C to +55°C
  • Storage temperature: -25°C to +70°C
  • Ingress protection: IPx6 and IPx7

Electrical Specifications:

  • Supply voltage: 12V or 24V DC
  • Supply voltage range: 9.6V – 31.2V DC
  • Average current (at 12V): 280mA
  • Average current (at 12V) (wireless off): 245mA
  • Peak current: 2.5A
  • Average power consumption (at 12V): 3.4W
  • Average power consumption (at 12V) (wireless off): 2.9W
  • Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port

Connectors:

  • VHF antenna: SO-239
  • VHF radio: SO-239
  • GNSS: TNC
  • Power: 12-way circular multipole
  • NMEA 2000: 5-way Micro-C connector
  • USB: USB Micro-B

Data Interfaces:

  • NMEA 0183: 2 x bi-directional ports
  • NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
  • USB: PC virtual com port for NMEA 0183 data
  • Wi-Fi: IEEE 802.11 (a/b/g), client and access point mode supported (2 connections in access point mode)
  • Bluetooth: BT Classic 4.0, 7 concurrent connections

Standards Compliance:

  • AIS standards: IEC 62287-2 Ed. 2, ITU-R M.1371.5
  • Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 EN62311:2008
  • Environmental standards: IEC 60945 Ed. 4
  • Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0
  • NMEA 2000: NMEA 2000 Ed 3.101
  • GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0

GNSS:

  • Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
  • Channels: 72
  • Internal/external antenna: Internal or optional external antenna
  • Time to first fix from the cold start: 26s

VHF Transceiver:

  • VDL access scheme: SOTDMA
  • Operating frequency: 156.025MHz – 162.025MHz
  • Channel bandwidth: 25kHz
  • Receivers/transmitters: 2 x receivers, 1 x transmitter
  • AIS receiver sensitivity (20% PER): -111dBm
  • AIS transmitter power: 5W (+37dBm)

User Interface:

  • Indicators: Power, transmit timeout, error, silent mode

In the Box:

  • 1 x AIS transceiver
  • 1 x Power and data cable (2M)
  • 1 x VHF radio accessory cable
  • 1 x FLEXI-FIT™ mounting bracket
  • Complete with screws & optional fixing tape

Quick Guide Litreture

Brochure Litreture

AIS Class = B | Antenna Included = Yes | Display Included = No | Function = Receive/Transmit | GPS Included = Yes

Additional information

Weight 1.8 lbs
Dimensions 7 × 7 × 6 in
Model Number 430-0015
UPC 672975210571
