Facnor FX+0900 Flying Sail Furler

102834

$1269.00 $952.34

0 in stock
Qty :

Description

FX+0900 Flying Sail Furler

Further to constructive technical exchanges with ocean racers, Facnor has developed for over 20 years a sophisticated range of Gennaker/Code Zero furlers: the FX+. These furlers are known to be light, easy to fit, and aesthetic. Also, this furler is reliable for cruising or racing.

Features:

  • Adapted to sailboat from 6 to 10.5m (20 to 30 ft.)
  • Code sail surface of 30m²/ 322ft² maximum
  • Captive quick-release pin
  • Possible conversion for asymmetric Spinnaker
  • Composite/carbon housing
  • Maintenance-free units (sealed bearings)

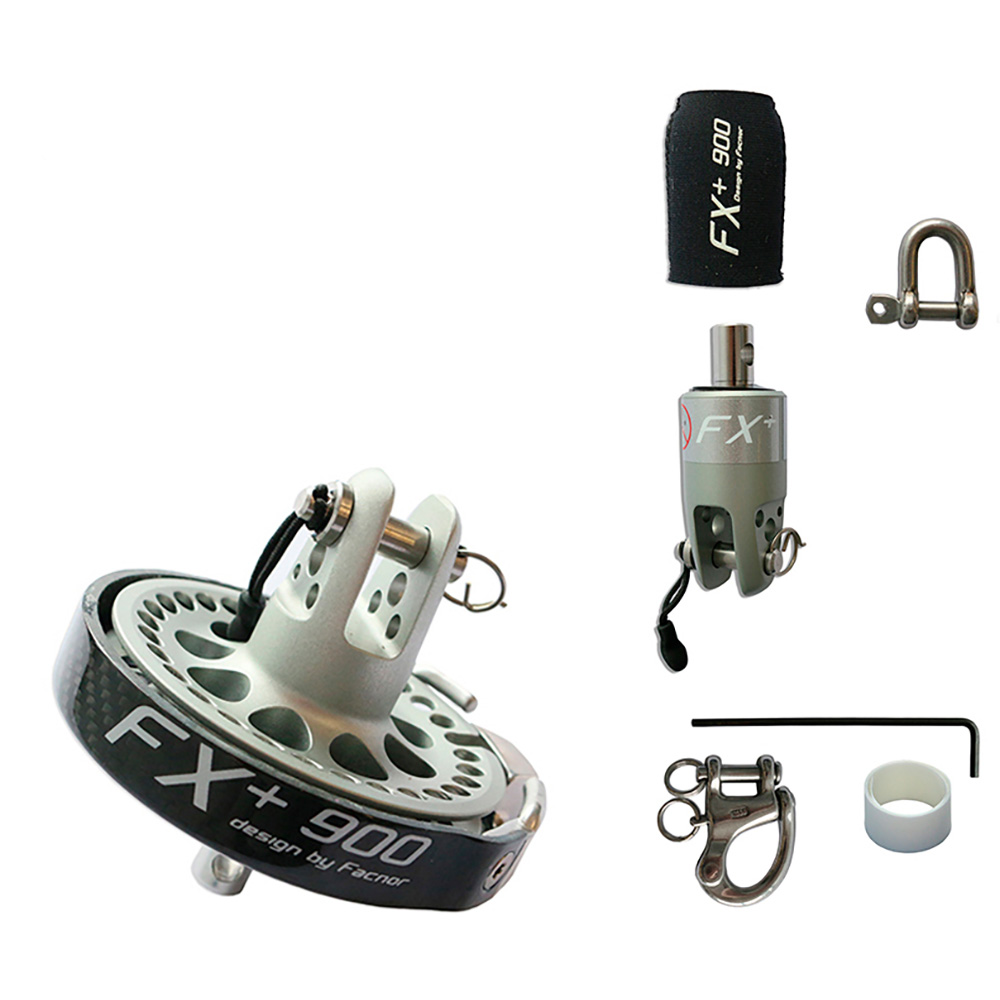

The Standard Kit of the FX+900 Furler Includes:

  • One continuous line drum in anodized aluminum and CNC machined in a solid block, protected by a composite/carbon housing, low-profile drum
  • One swivel also in anodized aluminum and CNC machined in a solid block, including a neoprene anti-impact cover with high-visibility marking
  • One snap shackle as the bottom drum attachment (Optional SSH+900/1500 solid sheave as an alternative)
  • One shackle as the top swivel attachment (optional FRX900/1500 2-to-1 friction ring as an alternative)

Offers Comfort in Sail Handling, Reliability, and Easy Manipulation:

  • Monoblock’s conception of the mechanisms for more sturdiness and long-lasting
  • Intuitive manipulation to connect the sail to the mechanisms thanks to a fitted-in, compact, and unique captive quick-release pin
  • Bottom drive unit with a largely dimensioned diameter for strong torque and therefore more comfortable handling
  • Is rotation transmitted through an anti-torsion luff rope? Optional—sliding inside the luff tape and fitted with a thimble on each end
  • Optimize the investment by converting the furlers for use with the asymmetric spinnaker; just add a FAST top-down thimble

Specifications:

  • Weight: 0.57 kg
  • Sailboat Length (feet): 20′-30′
  • Code Sail Area (m²): 30,00
  • Code Sail Area (ft²): 322,00
  • Staysail Area (m²): Not adapted to furl a staysail
  • Staysail Area (ft²): Not adapted to furl a staysail
  • Safe Working Load (tons): 0,90
  • Standard Top Swivel Attachment: Shackle
  • Standard Bottom Drum Attachment: Snapshackle
  • Ratchet Option: NOT available
  • Continuous Line Drum Ø: 85,00mm
  • Spliced Furling Line Ø: 6,00mm
  • Warranty: 3 years

*Optimize the investment by converting the furler for use with an asymmetric spinnaker; just add the FAST 900 top-down thimble.

https://www.youtube.com/embed/O3r5ra8NDaw?si=060ihf0lq2Zt9wSU

Additional information

Model Number 43410700945
