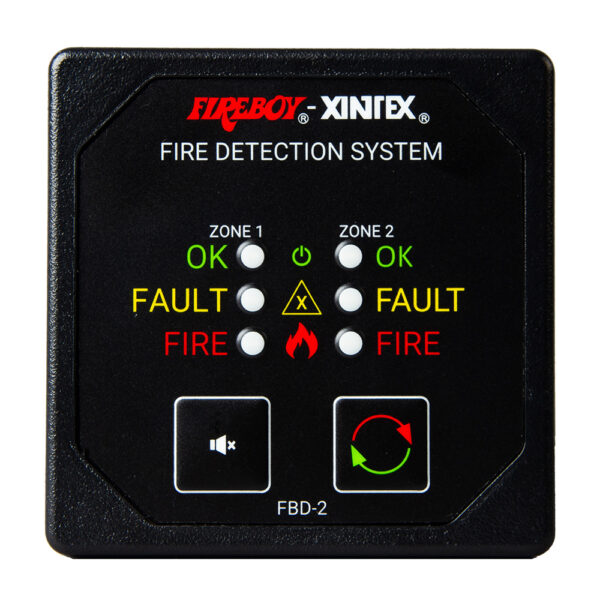

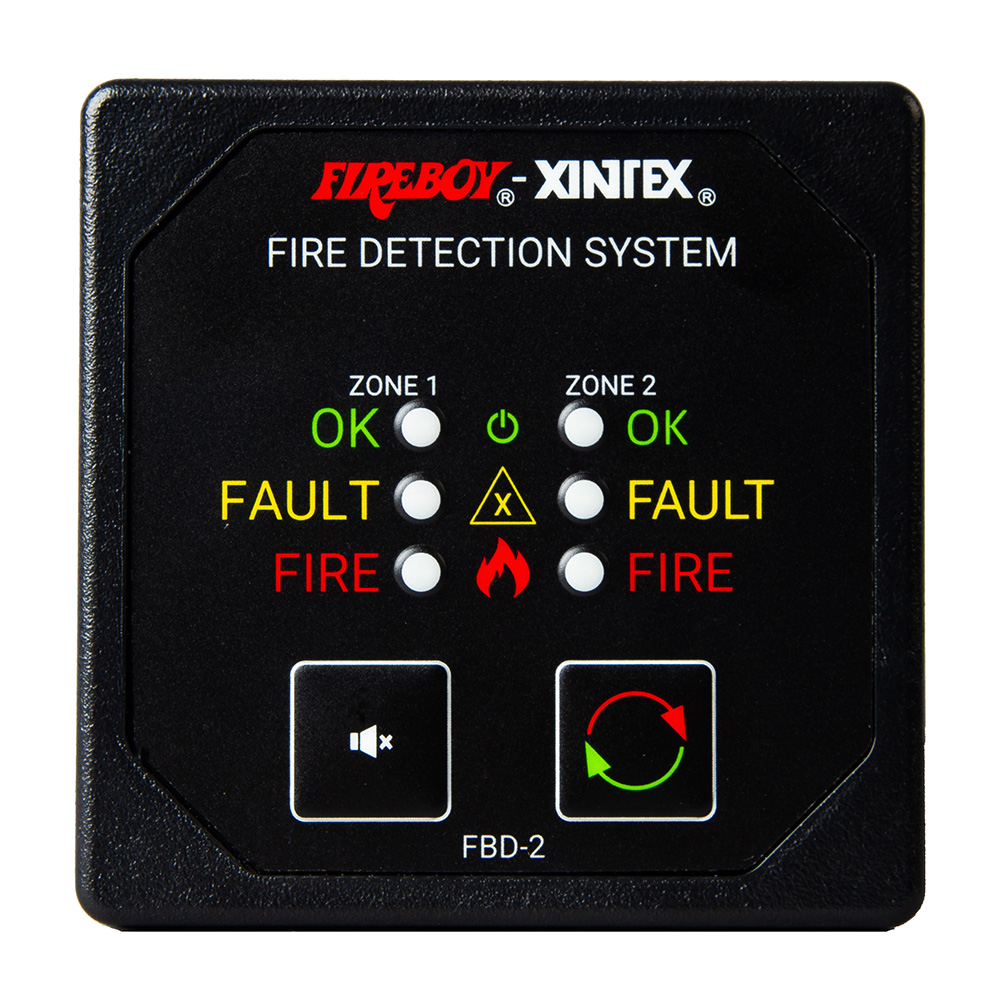

Fireboy-Xintex Two Zone Detection & Alarm Panel – 2-5/8″ Display – 12/24V DC

100089
Fireboy-Xintex

$975.00 $531.38

0 in stock
Qty :
,

Description

Two Zone Detection & Alarm Panel – 2-5/8″ Display – 12/24V DC

Each system consists of a monitor panel and up to 14 smoke or heat detectors and/or rate of rise heat detectors connected to each zone (sold separately.)

Features:

  • Visual and audible indications of a fire or fault
  • Water resistant display
  • Voltage and EMI protected
  • Reverse polarity protected

Specifications:

  • Supply Voltage: 9-32V DC
  • Zone Loop Voltage: 24V DC (regardless of input voltage)
  • Minimum Alarm Current: 15mA
  • Maximum Current Per Zone: 400mA
  • Maximum Sensors Per Zone: 8
  • EOL Resistor: 5.6kΩ
  • Potential Free Transistor Output (Fault, Alarm): 50V max
  • Relay Output (Buzzer): 2A

Owner Manual

Blower Relay = NONE | Fume Type = NONE | Generator Shutdown = NONE | Sensors Included = NONE | Voltage - Input Range (Volts) = NONE

Additional information

Model Number FBD-2-R
