Description

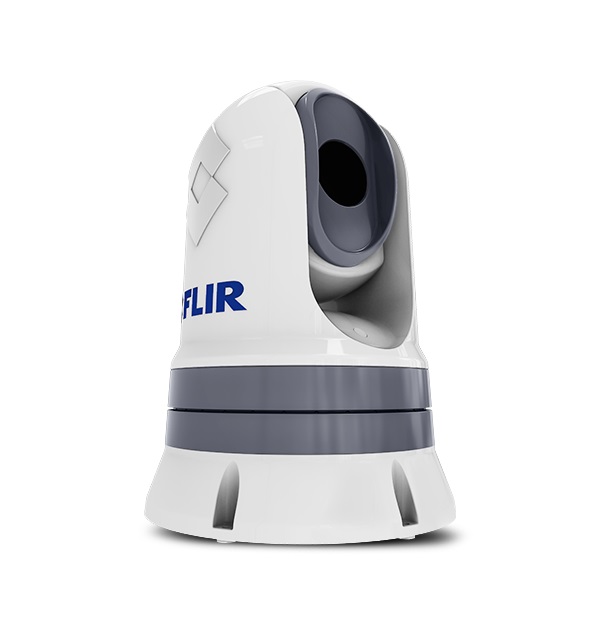

FLIR M300C Single Payload HD Camera No JCU
Model: M300C
Combining a high-performance visible marine camera with long-range optical zoom capability, the M300C offers positive target identification for law enforcement, commercial, and recreational applications. Advanced gyro-stabilization provides steady imaging in rough sea conditions and allows the M300C to monitor targets or hazards over long distances continuously. Exceptional low light performance from the M300C gives captains enhanced awareness once the sun dips below the horizon.
Low light HD visible imaging sensor and long-range zoom offer enhanced target identification
Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.
Exceptional connectivity with navigation and security systems.
Specifications
| General | |
| HD-SDI Lossless Video Output | Yes |
| Network Video Output | Single H.264 Network Video Stream |
| Pan & Tilt Adjustment Range | 360° Continuous Pan, +/- 90° Tilt |
| Pan/Tilt | Yes |
| Color Camera | |
| E-Zoom – Color | 12x |
| Connections & Communications | |
| Analog Video Output | NTSC/PAL User Settable |
| Analog Video Connector Types | BNC |
| Daylight Imaging | |
| Zoom | 30x Optical Zoom |
| Detector Type – Daylight | 1/2.8" Exmor R CMOS |
| Field of View – Daylight | Optical 63.7° x 35.8° WFOV to 2.3° x 1.29° NFOV |
| Focal Length – Daylight | 129 mm to 4.3 mm |
| Lines of Resolution – Daylight | High Definition up to 1080/30p |
| Minimum Illumination – Daylight | 0.1 lux (50 IRE, 1/30s, ICR off, slow shutter off, high sensitivity off) / 0.0008 lux (30 IRE, ICR on, slow shutter 1/4s, high sensitivity on) |
| Environmental | |
| Automatic Window Defrost | Standard at Power-Up |
| EMI | IEC60945 |
| Lightning Protection | Standard |
| Operating Temperature Range | -13°F to +131°F (-25°C to +55°C) |
| Salt Mist | IEC60945 |
| Shock | 15g vertical, 9g horizontal |
| Storage Temperature Range | -30°F to +158°F (-30°C to +70°C) |
| Vibration | IEC60945 |
| Water Ingress | IPX6 (heavy seas, power jets of water) |
| Wind | 100 knots (115.2 MPH) |
| Sand & Dust Ingress | Mil-Std-810E or IP6X |
What’s in the Box:
- M300C Camera
- Camera base-seal
- Camera gasket
- RayNet-to-RJ45 adaptor cable 120 mm (4.72 in.)
- Right-angled RayNet-to-RayNet cable 3 m (9.8 ft.)
- Right-angled BNC-to-BNC cable 3 m (9.8 ft.)
- Right-angled 3-pin power cable 3 m (9.8 ft.)
- Mounting riser
- 3 x camera fixings: nuts, dome nuts, spring and flat washers, threaded studs
