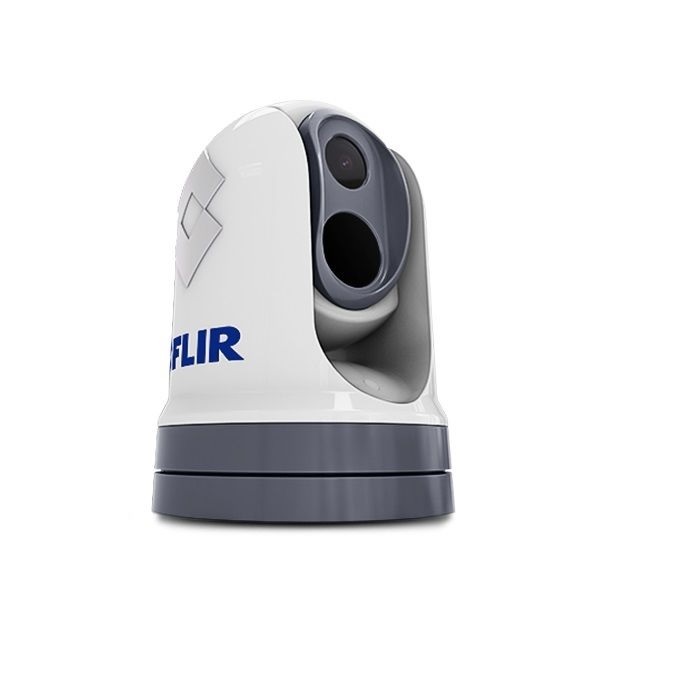

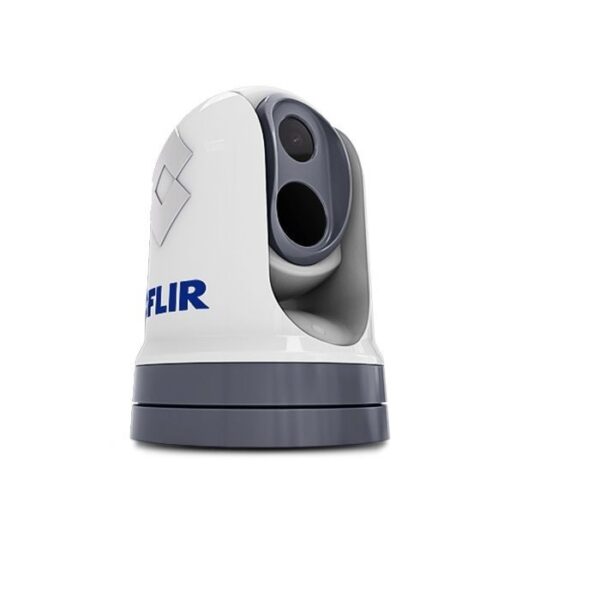

FLIR M364C Dual Payload
Thermal Camera No JCU 640 x 480 18D HFoV
Model: M364C
Featuring a high definition low light camera and one of the most advanced FLIR thermal imaging cores, the M364C and M364C-LR provide an elite level of awareness on the water. Both cameras use multispectral imaging to deliver exclusive FLIR Color Thermal Vision™ (CTV) technology. Color Thermal Vision blends visible camera details with a thermal image, overlaying vital color imagery that allows captains to positively identify navigation aids and other vessels within the thermal scene. Outstanding imaging performance, intelligent object recognition technology, and enhanced gyro-stabilization make the M364C and M364-LR indispensable tools for law enforcement professionals, commercial mariners, and serious recreational boaters.
Thermal and visible imaging featuring FLIR Color Thermal Vision and MSX®.
Low light HD visible imaging sensor and long-range zoom offer enhanced target identification.
Two-axis mechanical stabilization virtually eliminates the effects of pitch, heave, and yaw.
Specifications
| General | |
| Detector Type | 640 x 512 VOx Microbolometer |
| Field of View | 24° x 18° |
| Image Processing | FLIR Proprietary Digital Detail Enhancement |
| HD-SDI Lossless Video Output | Yes |
| Network Video Output | Single H.264 Network Video Stream |
| Pan & Tilt Adjustment Range | 360° Continuous Pan, +/- 90° Tilt |
| Pan/Tilt | Yes |
| Color Camera | |
| E-Zoom – Color | 12x |
| Connections & Communications | |
| Analog Video Output | NTSC/PAL User Settable |
| Analog Video Connector Types | BNC |
| Daylight Imaging | |
| Zoom | 30x Optical Zoom |
| Detector Type – Daylight | 1/2.8" Exmor R CMOS |
| Field of View – Daylight | Optical 63.7° x 35.8° WFOV to 2.3° x 1.29° NFOV |
| Focal Length – Daylight | 129 mm to 4.3 mm |
| Lines of Resolution – Daylight | High Definition up to 1080/30p |
| Minimum Illumination – Daylight | 0.1 lux (50 IRE, 1/30s, ICR off, slow shutter off, high sensitivity off) / 0.0008 lux (30 IRE, ICR on, slow shutter 1/4s, high sensitivity on) |
| Environmental | |
| Automatic Window Defrost | Standard at Power-Up |
| EMI | IEC60945 |
| Lightning Protection | Standard |
| Operating Temperature Range | -13°F to +131°F (-25°C to +55°C) |
| Salt Mist | IEC60945 |
| Shock | 15g vertical, 9g horizontal |
| Storage Temperature Range | -30°F to +158°F (-30°C to +70°C) |
| Vibration | IEC60945 |
| Water Ingress | IPX6 (heavy seas, power jets of water) |
| Wind | 100 knots (115.2 MPH) |
| Sand & Dust Ingress | Mil-Std-810E or IP6X |
| Marine Imaging & Optical | |
| Focus | Fixed 12ft (3m) to infinity |
| Thermal Imaging | |
| Continuous E-Zoom | 8x |
| Focal Length – Thermal | 18mm |
| Video Refresh Rate – Thermal | 30 Hz |
What’s in the Box:
- M364C LR Camera
- Camera base seal
- Camera gasket
- RayNet-to-RJ45 adaptor cable 120 mm (4.72 in.)
- Right-angled RayNet-to-RayNet cable 3 m (9.8 ft.
- Right-angled BNC-to-BNC cable 3 m (9.8 ft.)
- Right-angled 3-pin power cable 3 m (9.8 ft.)
- Mounting riser
- 3x camera fixings: nuts, dome nuts, spring and flat washers, threaded studs
- 2 x self-adhesive decals (for ball-down mounting only)
- Documentation pac
