FLIR M400 Multi-Sensor Thermal/Visable Camera 30Hz with JCU2

FLI43200120800
FLIR

$74995.00 $64098.23

0 in stock
Qty :

Description

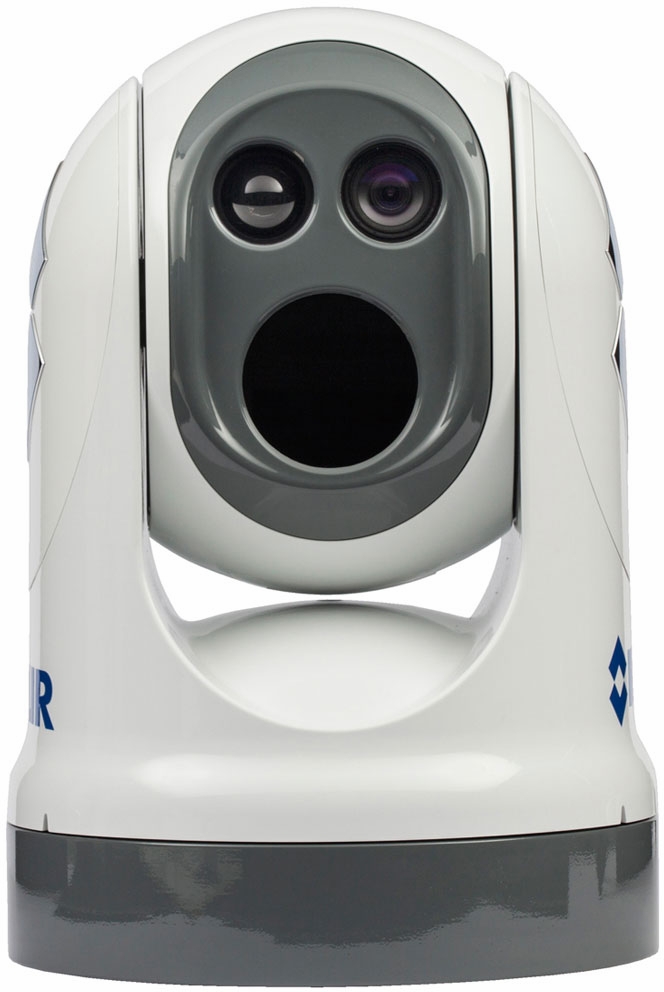

FLIR M400 Premium Multi-Sensor Marine Thermal Camera

Model: 432-0012-08-00

  • Digital Detail Enhancement (DDE) assures a crisp thermal image, even in scenes with extreme temperature dynamics.
  • High intensity LED spot light
  • Gyro-stabilized to ensure steady viewing in heavy sea conditions.
  • HD color lowlight camera with 30x optical zoom
  • High resolution 640×480 thermal sensor with optical zoom 18° to 6° Horizontal Field of View
  • Rugged, waterproof gimbal enclosure with 360° pan and +/-90° tilt capability

The FLIR M400 thermal night vision camera is a versatile, high-performance pan/tilt marine camera system designed for best-in-class short and long range target identification. The M400’s advanced 640×480 sensor delivers crisp thermal video images in total darkness and lowlight conditions. An integrated HD color visable camera and tight-beam LED spotlight augment target identification for added safety. M400 has a continuous optical thermal zoom lens (up to 4X) that allows operators to see other vessels and targets at longer ranges. Active gyrostabilization insures a steady image, plus radar tracking and optional video tracking keep potentially dangerous targets in view at all times.

Specifications

GENERAL
Camera Head Size 15.18″ x 18.68″ / 15.5″ x 22″ Swept Volume Cylinder
Field of View 64° to 2.3° Optical HFOV / 0.2 NFOV e-zoom
Integration Options IP Control by FLIR Joystick, PC,and Web Browser Integration with leading Multifunction Navigation Displays (Nexus SDK) FLIR Sensors Manager Integration RS-485/422 Serial Control by Pelco D NMEA 0183 Serial Communications (for radar tracking)
Pan & Tilt Coverage 360° Continuous Pan, +/-90° Tilt
Typical Configuration Camera Head, Joystick Control Unit, Cables, & Operator Manual, Glass-filled top down riser
Warranty 2 Year / 3 years with registration
CONNECTIONS & COMMUNICATIONS
Construction Type BNC
Video Output Dual, independent H.264 Network Video Streams HD-SDI Lossless Digital Video Interface High Definition Serial Data Interface Broadcast-quality video output Provides HD video over coax cable Switchable Composite Analog Video Output (SD) NTSC or PAL
DAYLIGHT IMAGING
Detector Type – Daylight Long range color daylight and low light viewing
Field of View – Daylight 64° to 2.3° Optical HFOV / 0.2 NFOV e-zoom
Focal Length – Daylight 129 mm to 4.3 mm
Minimum Illumination – Daylight >0.5 lux at 50 IRE / .05 Lux in ICR Mode (B/W)
Resolution – Daylight High Definition up to 1080/30p
Zoom 30X Optical Zoom
ENVIRONMENTAL
Automatic Window Defrost Standard
Operating Temperature Range -20 to 55 deg C
Storage Temperature Range -50°C to 80°C
MARINE IMAGING & OPTICAL
Video Tracking No
POWER
Power Consumption <50 W nominal; 130 W peak, 270 W 2/heaters
Power Requirements 24V DC
SPOTLIGHT
Beam 5° Divergence Angle
Lumens 580.0
Type LED
THERMAL IMAGING
Detector Type – Thermal 640 480 VOx Microbolometer
E-Zoom – Thermal 1x to 4x
Field of View – Thermal 18° to 6° / 1.5° HFOV with e-zoom
Field of View (H x V) – Thermal 18° to 6° / 1.5° HFOV with e-zoom
Focal Length – Thermal 35mm (wide) to 105mm (narrow)
Image Processing – Thermal FLIR Propriety Digital Detail Enhancement™
Thermal Resolution 640 x 480

What’s in the Box:

  • M400 Camera
  • JCU2
  • Ethernet switch with PoE

Additional information

Weight 30.00 lbs
Model Number 432-0012-08-00
UPC 723193824917
