Description
MD-Series

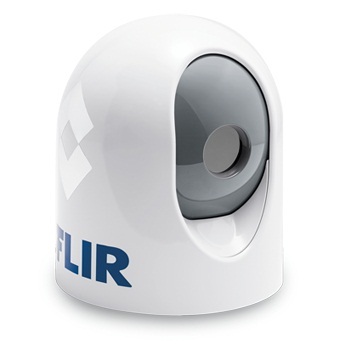

This affordable, fixed-mount thermal night vision system helps with steering around obstacles, collision avoidance and finding people in the water at night. Simple to mount and easy to integrate into your existing electronics, MD-Series display can be mounted separately on your dashboard, or the feed can be integrated into an existing display to save space.
Key Features
- Available in 320 x 240 ( MD324 ) and 640 x 480 (MD625) resolutions
- 2x e-zoom standard; 4x e-zoom included on MD-625
- Ethernet-enabled for simple integration into your current electronics
- Slim profile (7″ high and only three pounds) makes for an unobtrusive mount
Specifications
| Model Number |
MD-324 |
MD-625 |
Thermal Imaging Specifications |
||
| Detector Type | 320 240 VOx Microbolometer | 640 480 VOx Microbolometer |
| FOV | 24 x 18 (NTSC) | 25° 20° (NTSC) |
| Focal Length | 19 mm | 25 mm |
| E-zoom | 2 | 2 , 4 |
| Image Processing | FLIR Proprietary Digital Detail Enhancement | |
System Specifications |
||
| Size | 6″ dia. 7″ ht. | |
| Weight | ~ 3 lbs | |
| Pan/Tilt Coverage | Pan: 30° per key, Tilt: +34°, -27° locked in at installation |
|
| Video Output | NTSC or PAL, 30 Hz or <9Hz | |
| Connector Types | F-type BNC with BNC-to-RCA adapter included for video out | |
| Power Requirements | PoE injector required per IEEE 802.3af | |
| Power Consumption | 4.8 W nominal; 12.5 W max | |
Environmental |
||
| Operating Temperature Range | -25°C to +55°C | |
| Storage Temperature Range | -40°C to +85°C | |
| Automatic Window Defrost | Standard at Power-Up | |
| Sand/Dust | Mil-Std-810E | |
| Water Ingress | IPx6 | |
| Shock | 15 g vertical, 9 g horizontal | |
| Vibration | IEC 60945; MIL-STD-810E | |
| Lightening Protection | Standard | |
| Salt Mist | IEC60945 | |
| Wind | 100 knot (115.2 mph) | |
| EMI | IEC 60945 | |
Other |
||
| Standard Package | Camera Head with ~5"of Cable, Analog Video, and Ethernet (PoE powered device); Operator Manual CD | |
| Warranty | 2 year | |
| Optional Accessories | Joystick Control Unit; Low Smoke, Zero Halogen Ethernet Cables; Standard Cat 5e Ethernet Cables | |
iOS App
Use a single application to control all of your FLIR Thermal imaging, night vision, and infrared cameras from your iPad or iPhone. The app allows for intuitive control with natural gestures, featuring:
- Automatic discovery and configuration
- Quick browsing of your cameras with a single finger scroll gesture
- Night/thermal/TV signal switch with a single touch of a button
- Video recording and snapshot capturing
Note: At least one properly configured Nexus-enabled sensor device by FLIR is needed for this app to work. This application does not make us of your iPhone, iPad, or iPod camera.
Ways to control the MD Series Zoom, scene, color, etc.:
- Use Joystick Control unit for M-Series #500-0395-00 (Includes Joystick Control Unit with weather cover, and mounting hardware)
- If you have a WiFi network set up you can use the Free FLIR app.
- Certain Raymarine C and E displays via Ethernet.
In the box:
- Single payload camera with 320 x 240 pixel microbolometer
- 25 foot analog video cable (308-0164-25)
- 25 foot shielded Ethernet cable (308-0163-25)
- Weather proof Ethernet coupler (4115028)
- PoE Injector (4113746)
- Mounting Hardware
- Operator’s Manual, Installation Guide on CD
- Joystick Control Unit p/n 500-0395-00
