Description

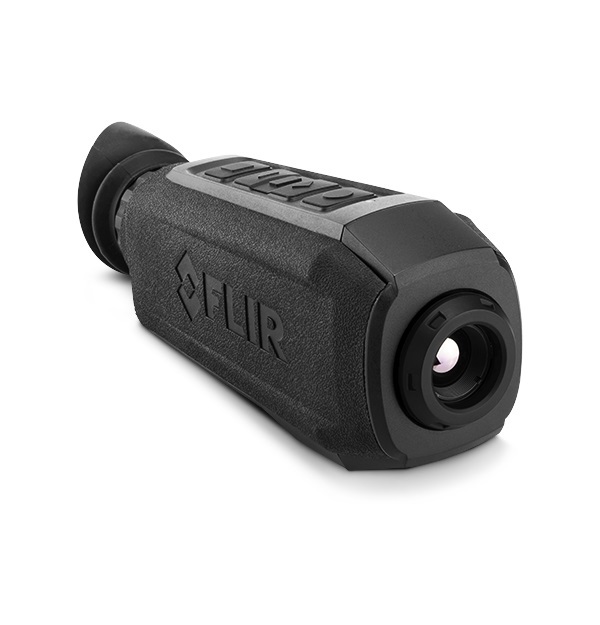

FLIR SCION PTM366 Thermal Imager 640×480 60 Hz 14mm
Model: 7TM-01-F330
- Pairing Scion PTM with FLIR’s innovative TruWITNESS platform provides public safety agencies with enhanced situational awareness and real-time centralized information.
- The full-featured Scion PTM packs onboard recording, picture-in-picture zoom, and intuitive controls into a rugged thermal optic
- The advanced image processing of FLIR’s Boson® thermal core paired with a 60 Hz image refresh rate provide smooth, unwavering vision in challenging environments.
Specifications
| Detector Type | 640 x 512 |
| Internal Memory | 2 GB Internal Storage / Optional microSD™ Card (up to 128 GB) |
| Size | 227 76.8 60.5 mm (9 3 2.4 in) |
| Weight | Without Batteries: 452 g; With Batteries 572 g |
| SYSTEM OVERVIEW | |
| Eye Relief | 16 mm |
| Color (housing) | Black |
| Lens System | 25 mm |
| Optical Magnification | 1.3x |
| Display Focus | Manual |
| Core Technology | BOSON 12 µm Vox Microbolometer |
| CONNECTIONS & COMMUNICATIONS | |
| Bluetooth | BLE 4.1+ |
| USB | USB-C; Power In; Video Out; Video and Image File Transfer |
| Geo Positioning [GPS] | No |
| Wifi | Video Streaming, File Transfer |
| ENVIRONMENTAL | |
| Mounting | ¼-20 Tripod Mount |
| IMAGING & OPTICAL | |
| Digital Zoom | 1X , 2X , 4X,8x |
| Field of View | 18° 13° |
| Refresh Rate | 60hz |
| Detection Range Performance [1.8 m man] | 1000m |
| METER DATA | |
| Auto Power Off | Yes |
| Display | Quad-VGA (1280×960) High definition display |
| POWER | |
| Battery Life | Up to 4.5 hours at 20°C |
| Battery Type | 6x CR123A 3V Lithium Battery |
| UI-UX | |
| Temperature Imaging Modes | White Hot; Black Hot; Iron Bow; Rainbow; Graded Fire; Lava |
| Viewing Modes | Scouting, Picture-in-Picture |
| Picture While Recording | Yes |
| Real Time Clock | Yes |
| DateTime Stamp | Yes |
| Magnetic Compass | Yes |
| Accelerometer | Yes |
