6kW UHD Digital Radar – Less Antenna and Cable
DRS6AX “X-Class”, a whole new class of Radar!
Pushing the boundaries of what is possible with conventional Radar technology, DRS6AX “X-Class” marks yet another leap forward for FURUNO. Improved in almost all aspects, DRS6AX “X-Class” Radar features improved short range detection, as well as an impressive long range detection of up to 120 nautical miles.
The redesigned pedestal unit is 20% lighter than previous DRS6AX model and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.
Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS6AX “X-Class.” Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.
Features:
- 6kW Power Output
- Enhanced target detection, both short and long range
- Minimum detection range of just 20M
- Fast Target Tracking™
- Bird Mode

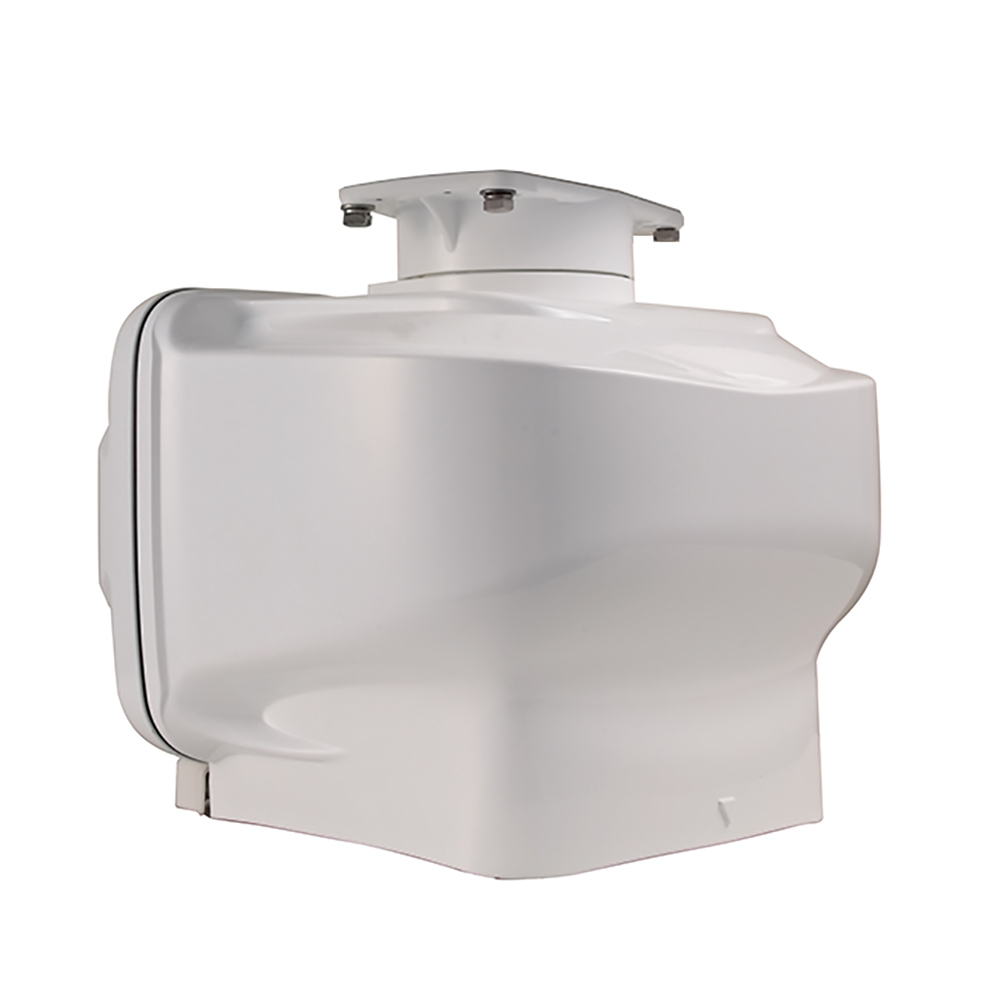

- Pedestal unit, 20% lighter than previous DRS6A unit, updated low noise motor
- No PSU required, decreasing total costs
- Easy installation without the need to open pedestal unit
- New smart-connector cable
- Choice of 3.5′, 4′ or 6′ Antenna
- Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)
- The DRS6AX is a 24V system; a converter will be required for use with 12V power systems
- Requires a signal/power cable
Resolution (VxH) = NONE | Screen Size = NONE | Array Size (Inches) = NONE | Power - Output = 6kW | Range - Max (Miles) = NONE
