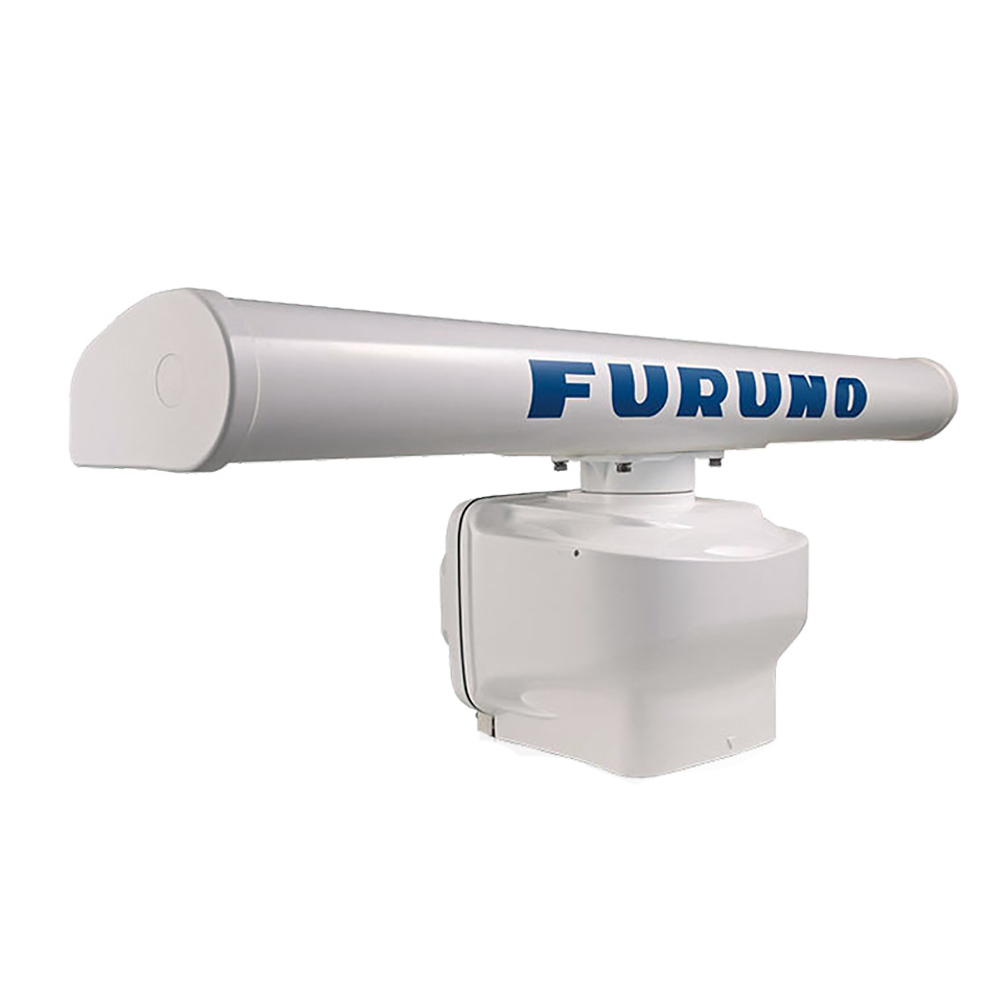

Furuno DRS25AX 25kW UHD Digital Radar w/Pedestal, 15M Cable & 4' Open Array

83547
Furuno

$7470.00

(MRP Pricing)

0 in stock
Qty :

Description

DRS25AX 25kW UHD Digital Radar with Pedestal, 15M Cable & 4′ Open Array

25kW UHD Digital Radar for TZtouch, TZtouch2 and TZtouch3. DRS25AX “X-Class”, a whole new class of Radar!

Pushing the boundaries of what is possible with conventional Radar technology, DRS25AX “X-Class” marks yet another leap forward for Furuno. Improved in almost all aspects, DRS25AX “X-Class” Radar features improved short range detection, as well as an impressive long range detection of up to 96 nautical miles.

The redesigned pedestal unit is 20% lighter than previous models and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.

Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS25AX “X-Class.” Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.

Features:

  • 25kW Power Output
  • Enhanced target detection, both short and long range
  • Minimum detection range of just 20 m
  • Fast Target Tracking™
  • Bird Mode
  • Pedestal unit 20% lighter than previous unit, updated with new, low noise motor
  • No PSU required, decreasing total costs
  • Easy installation without the need to open pedestal unit
  • Smart-connector cable
  • 4′ Open Array
  • 15M Cable
  • Compatible with NavNet TZtouch, NavNet TZtouch2 and TZtouch3 (not compatible with NavNet 3D or earlier NavNet models)
  • The DRS25AX is a 24V system; a converter will be required for use with 12V power systems

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Screen Size = NONE | Power - Output = 25kW | Array Size (Inches) = 48" | Resolution (VxH) = NONE | Range - Max (Miles) = NONE

Additional information

Weight 64.6 lbs
Dimensions 20 × 18 × 16 in
Model Number DRS25AX/4
