Description

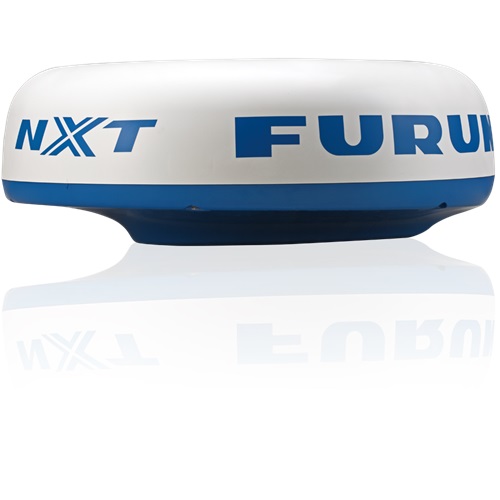

Furuno DRS4DNXT Doppler Radar

Model: DRS44DNXT

• NXT Solid-State pulse compression Radar
• Revolutionary Target Analyzer™ function
• RezBoost™ beam sharpening, equivalent to 2 degree beam width
• Automatic target acquisition with Doppler technology, up to 100 targets
• Compact 24″ radome with 25W output power (equivalent to 4kW magnetron)
• Bird Mode
• No external PSU required
• Easy installation, no need to open the radome
• No warm-up time

The Furuno DRS4DNXT is the next step in Radar evolution; a Solid-State Radar with pulse compression, Target Analyzer™ and Fast Target Tracking™ utilizing Doppler technology. Combined with FURUNO exclusive RezBoost™ technology for beam sharpening, the DRS4DNXT packs the performance of an open array radar, in a compact 24″ radome.

DRS4DNXT is the first radar in the world to use the new Furuno exclusive Target Analyzer™ function, where targets that are approaching your vessel automatically change color. Green targets are targets that stay stationary, or are moving away from you, while red targets are moving towards your vessel. Target Analyzer™ works independent of vessel speed, both your own vessels and target vessels, with minor limitations. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ can increase safety, as well as improve situational awareness.

Once a target has been selected, a speed and course vector is displayed in seconds. With accurate tracking information, estimation of other vessel’s course and speed is greatly simplified. With Doppler technology, any vessel approaching yours will automatically display a target vector, as well as sound an alarm.

For the first time Furuno’s exclusive RezBoost™ technology is used in one of our Radar units, with impressive performance. With RezBoost™ set to MAX, the sharpness of a 2 degree beam width can be achieved.

Specifications

What’s in the Box:

• RSB135-115 Dome
• Hardware pack
• Documentation
