Description

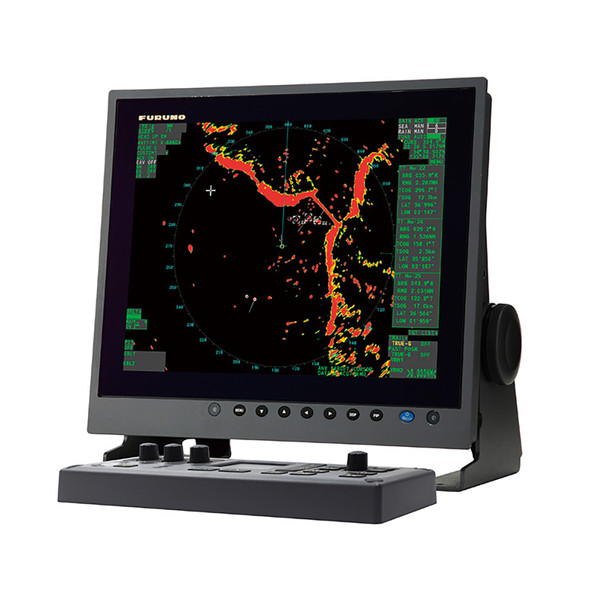

Furuno FAR1513 12 kW Transmitter, 96 NM Black Box Radar System, less Antenna and Cable
Model: FAR1513
This new Radar has it all! Its compact and easy-to-use control unit includes individual knobs for gain/sea/rain clutter suppression, as well as a RotoKey and touch panel for simple, efficient operation. An optional trackball unit can also be connected.
Quickly adjust the Radar image with the push of a single button. With ACE activated, the system automatically adjusts clutter reduction filters and gain control according to sea and weather conditions selected by the user (calm/ rough sea/hard rain).
The Target Analyzer function displays moving target, stationary targets, rain, sea surface and targets closing in on your vessel in different colors. You can immediately spot hazardous targets directly, simply by the color they are displayed in. Target Analyzer can increase safety as well as improve situational awareness.
After selecting a target, it only takes a few seconds for a speed and course vector to be displayed. With accurate tracking information, estimation of other vessels course and speed is made easier.
Specifications
| Display | Sold Separately |
| Band | X-Band |
| Power Output | 12 kW |
| Antenna Type | Open Array – Sold Separately |
| Antenna Size | 4 ft or 6 Ft – Sold Separately |
| Power usage | 12vDC |
| Range | 96 nm |
What’s in the Box:
- RPU024/1513 processor
- RCU028 Control unit
- RSB0070-086A 12kW gearbox
