Furuno PM265LH Bronze Pocket Mount CHIRP Transducer – 12-Pin

83661
Furuno

$1600.00 $1571.55

0 in stock
Qty :

Description

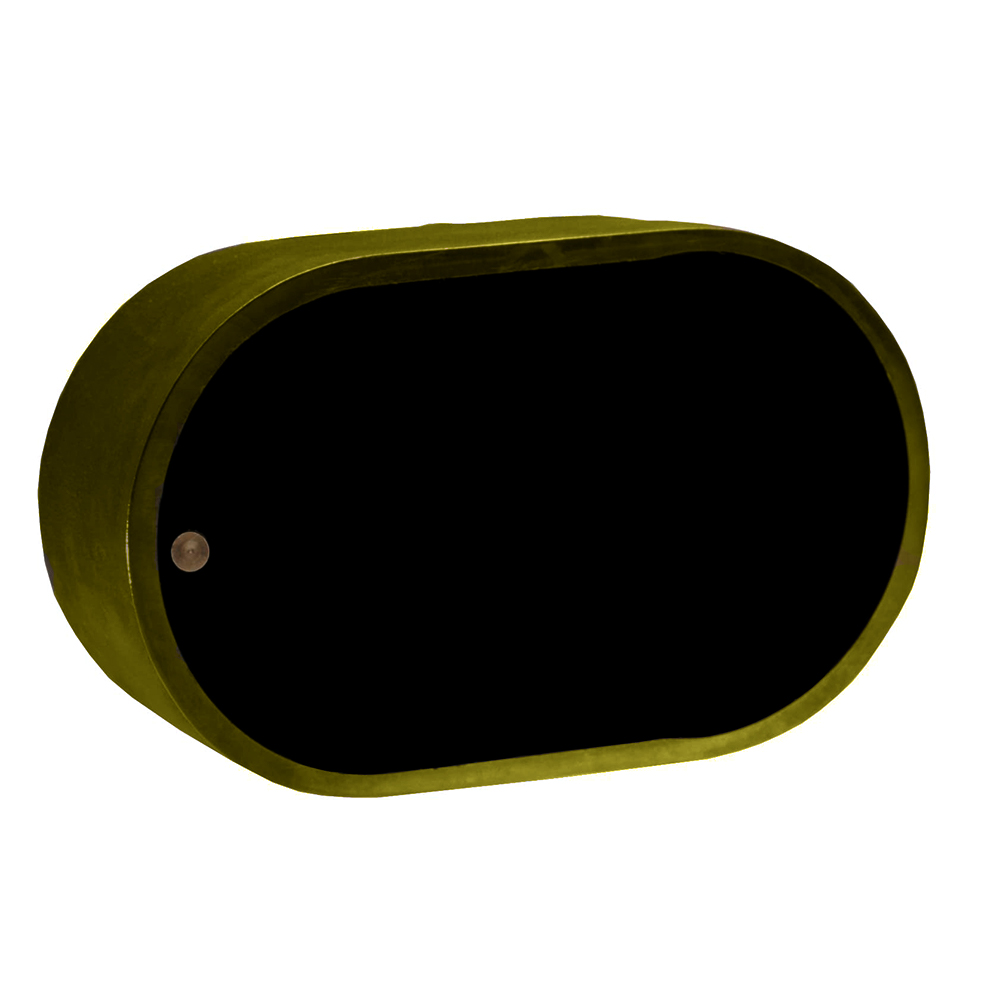

PM265LH Bronze Pocket Mount CHIRP Transducer – 12-Pin

Bronze, Pocket Mount CHIRP Transducer with Temp, with 12-Pin Connector, Low-Freq: 42-65 kHz, High-Freq: 130-210 kHz.

The PM265LH is a bronze CHIRP transducer with Temp for use with Furuno’s CHIRP broadband Fish Finders.Its flat-faced design is ideal for pocket/keel-mount installations.

Traditional marine Fish Finders operate at discrete frequencies such as 50 kHz and 200 kHz, use relatively short-duration transmit pulses, and use narrowband sonar transducers. In contrast, CHIRP (Compressed High-Intensity Radar Pulse) uses a precise sweep pattern of many frequencies within a long-duration transmit pulse from a broadband transducer. The equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional marine Fish Finder. The echo energy returning to the transducer is likewise superior to that generated by a conventional transducer. The combination of CHIRP, a broadband transducer, and Furuno’s superior Digital Signal Processing, results in dramatically increased fish and bottom detection.

The PM265LH CHIRPS across the following bandwidths:

  • Low-Frequency: 42-65 kHz
  • High-Frequency: 130-210 kHz

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Speed Included = NONE | Pins = NONE | Imagining = NONE | Mounting Style = NONE | Temperature = NONE | Chirp = NONE | Cable Length (Feet) = NONE

Additional information

Model Number PM265LH-12P
