Description

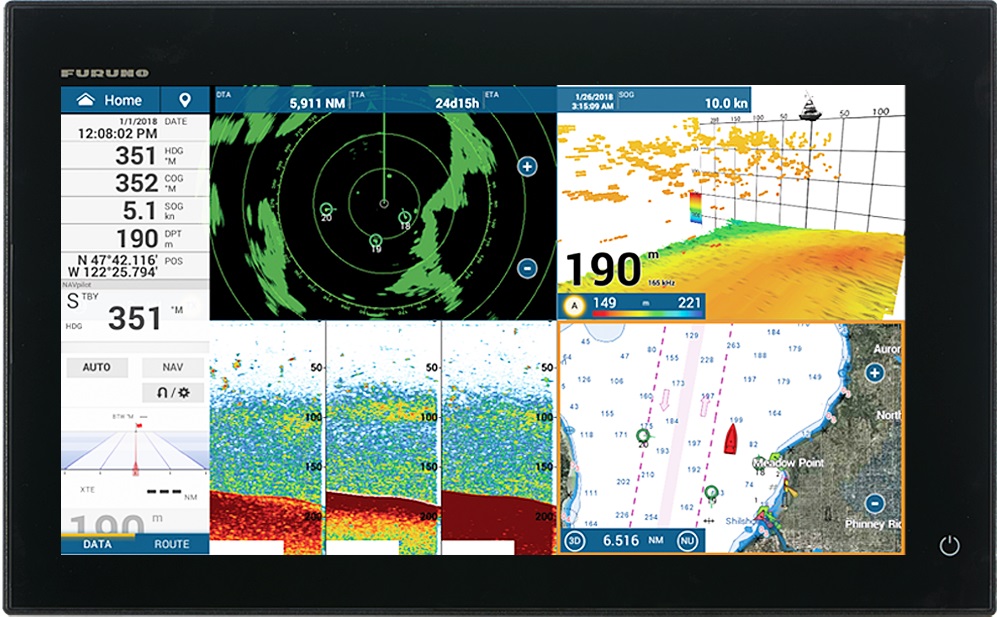

Furuno TZT16F 16″ TZtouch3 Chart Plotter/Fish Finder
Model: TZT16F
- Go on a power trip with the most powerful MFD series available
- EASY to use; because finding your happy place shouldn’t be difficult!
- The return of Hybrid Control
- Protect your livelihood with new PIN CODE security
- Never lose waypoints, routes or settings again with TZ Cloud
- We gave you something to CHIRP about!
This lightning-fast 16" Multi Function Display features a sleek edge-to-edge glass display that delivers ultra-clear images from any angle. This MFD will not only make your helm functional but will also add style and ergonomics. Featuring a new, powerful quad-core processor for lighting-fast response time and a built-in Dual Channel 1kW TruEcho CHIRP™ & CW Fish Finder.
We listened to you and worked tirelessly to make TZtouch3 the easiest MFD on the market to use… bar none. With edge-swipe features and single tap menu options, you’re never more than a tap or swipe away from what you want to see or do. It’s that simple.
TZtouch3 incorporates a fast quad-core processor so you can scroll, pan, and zoom in/out completely smooth & seamlessly. Plus, you can navigate in a 3D environment, offering you a realistic perspective and an expanded view of the area around your boat. The 3D chart perspective is perfect for planning and navigating routes.
The new PIN CODE Lock feature allows you to require a four-digit password to be entered upon startup, keeping your data safe against theft.
Create your routes at home using TZ Navigator, a web browser*, or TZ iBoat iOS App. Then you can retrieve them from the cloud & download to your TZtouch3. Also, create events on your MFD and retrieve them at home because the data is synchronized automatically & securely to My TimeZero. TZ Cloud also stores marks, routes, boundaries, photos, and catch data! (*Cloud.MyTimezero.com raster planning charts for US only)
You spoke. We listened. And now we delivered! TZtouch3 incorporates a powerful internal 1kW TruEcho CHIRP™ Fish Finder. For many, this is the perfect Fish Finder, but for some, they need even more. So, we proudly bring you Deep Impact (DI-FFAMP), a high-powered 2kW/3kW amplifier that connects to the internal TruEcho CHIRP™ Fish Finder. But if that’s not enough, Deep Impact allows you to connect a 5kW or 10kW transducer with the BT-5. Go big or go home!
Are you ready to go on a Radar power trip? Nowhere else will you find Radar as powerful or with the amazing target detection of Furuno’s NXT and X-Class Radars. We juiced the power of our NXT Solid-State Doppler Radars to give you outstanding long-distance performance that matches their amazing close range ability.
Specifications
| Display | |
| Type | Color TFT multi touch In-Plane Switching (IPS) LCD |
| Screen Size | 15.6″ Wide |
| Screen Resolution | FHD 1920 x 1080 |
| Screen Brightnes | 1000 cd/m2 (typical) |
| Display Colors | 16,770,000 colors (Chart Plotter), 64 colors (Radar/Fish Finder) |
| Language | Bulgarian, Chinese, Danish, English (USA/UK), Finnish, French, German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish GPS/WAAS |
| GPS/WAAS | |
| Receiver Type | GPS: 72 channels, SBAS: 1 channel (C/A mode, WAAS |
| Receiving Frequency | L1 (1575.42 MHz) |
| Time to First Fix | 100 s (cold start) |
| Accuracy | 10 m (GPS), 7 m (MSAS), 3 m (WAAS) |
| Position Update Interval | 0.1 s (10Hz) |
| CHART PLOTTER | |
| Cartography | MapMedia mm3d chart (C-MAP/Navionics/NOAA) |
| Memory Capacity | 30,000 user points, 30,000 points for ship’s tracks, 200 planned routes (500 points per route) |
| Alarms | Anchor Watch, XTE, Depth*, Speed, Sea Surface Temperature*, Trip Distance, Fuel Gauge*, Wind Alarm*, Boundary Alarm (*external data required) |
| Radar | |
| Display Modes | Head-up*, North-up *Heading input required. |
| Echo Trail | Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15 mins, 30 mins and continuous |
| Target Tracking | 30 ARPA Targets |
| Radar Alarms | Guard Zone, CPA/TCPA, Trigger, Video, Azimuth, Heading Line |
| FISH FINDER | |
| Transmit Frequency | CW: 50/200kHz CHIRP: 40kHz to 225kHz |
| Transducer | 300/600 W or 1 kW* *Matching box MB1100 required for some FURUNO transducers |
| Display Range | 2 to 1,200 m, shift: 0 to 1,200 m |
| Extension Mode | ACCU-FISH™, A-Scope, Auto (Fishing/Cruising), RezBoostTM, Bottom Discrimination, TruEcho CHIRPTM |
| Picture Advance | 8 steps: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop |
| Fish Finder Alarms (option) | School of fish, School of fish for bottom lock |
| INTERFACE | |
| CAN bus/NMEA2000 | 1 Port |
| NMEA0183 | 1 Serial Output Port |
| LAN | 2 Ports (100 BASE-TX) |
| USB | 1 Port (USB2.0) for touch monitor and control unit: 1 Port USB output |
| Video I/O | Input: 2 ports (NTSC/PAL) and 1 port HDMI 1920 x 1080p or less (progressive only) Output: 1 port(HDMI 1080p) |
| AUX I/O | 2 Ports (Event Switch and External Power Switch) and 1 Port Buzzer Output |
| SD Card Slot | 1 Micro SD Card Slot (Micro SDXC, rear), 2 Slots Card Unit: Model SDU-001 (option) |
| Wireless LAN | IEEE802.11b/g/n, Transmit frequency: 2.412 to 2,462 GHz, 11dBm max |
| Transducer | 1 Port, 1 Port — DI-FFAMP |
| ENVIRONMENT | |
| ENVIRONMENT | -15°C to +55°C |
| Relative Humidity | 93% or less at +40° C |
| Waterproofing | IP56 |
| POWER | |
| Voltage | 12-24 VDC |
| Current draw | 4.3 – 2.2 A |
What’s in the Box:
- Multi Function Display 15.6″
- Grey Silicone Cover
- Power Cable Assy 2m
- 12 to 10pin Transducer adapter cable
- LCD Cleaning Cloth
- Flush Mount Fixture x 2
- Flush Mount Sponge 12H x 2
- Flush Mount Sponge 12V x 2
- Slotted Head Hex Bolt M6x12 x 2
- EMI Core GRFC-10
- Connector Caps
- Flush Mounting Template
- Operator’sGuide
- Installation Manual
