Description

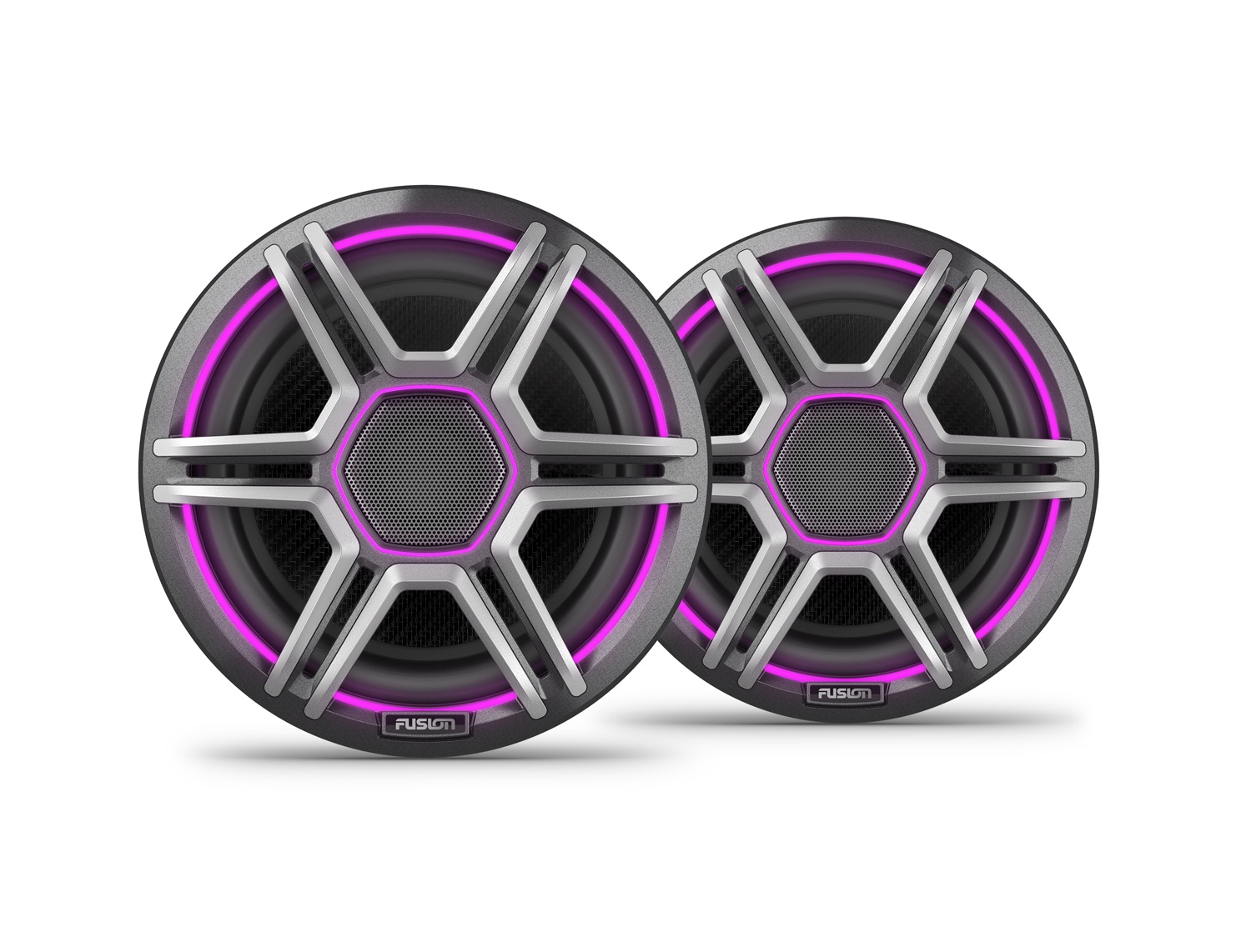

Fusion AP-FL77SPG 7.7in LED Marine Speakers with Sports Gray Grilles
Model: 010-02918-13
- Crystal-Clear Premium Cound Quality
- Match the Mood with Dual-Hue LEDLighting Rings
- Rigorously Tested Marinized Design
Enjoy immersive audio at higher volumes, thanks to updated motor designs which reduce distortion for a premium sound experience.
Showcase your boat with dual-hue LED lighting rings that provide a unique look through the distinct hexagonal tweeters. Choose from a broad range of colors to match the mood or music.
The grilles are simple to install without tools and don’t have screws for a seamless look and finish.
Fusion Apollo speakers offer a superior level of durability and are built to withstand abuse in harsh marine environments (in accordance with IP66/IP67 rating and ISO 12216 standards).
When using Garmin Spectra™, any color combination can be created using the equivalent current draw of two CRGBW LED channels. This reduces power consumption and increases the number of speakers or subwoofers Garmin Spectra can control.
Specifications
| Size | 7.7in |
| Color | Sports gray |
| Physical dimensions (Diameter x Depth) | 7.72in x 4.46in (196 x 113.2 mm) |
| Water and dust rating | IP66/IP67 |
| Configuration | Coaxial |
| Peak power | 400 W |
| RMS power | 100 W |
| Sensitivity (1 watt @ 1 meter) | 91 dB |
| Frequency response | 60 Hz – 22 kHz |
| Recommended amplifier power (RMS) | 30 – 200 W/channel |
| LED lighting | yes (CRGBW; 5 colors) |
| LED supply voltage | 10.8 – 16 VDC |
| LED load current @14.4 VDC | 0.14 A per color, per speaker |
| LED load current @14.4 VDC when using Garmin Spectra™ | 0.31 A maximum per speaker |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 1.4in |
| Cone material | CURV® Cone Technology with rubber surround |
| Tweeter type | 1in Silk Dome |
| Compass-safe distance | 9.84 ft (280 cm) |
| Speaker connection | 5.9in (150 mm) water-resistant 2-way connector (2-pin, audio positive and negative) or Male spade connectors (0.25″ (6.3 mm) positive and 0.19in (4.8 mm) negative) |
| LED connection | 5.9in (150 mm) water-resistant 6-way connector (6-pin, CRGBW and ground) |
| Warranty | 3 years |
| Mounting diameter clearance | 5.35in (136 mm) |
| Mounting depth clearance | 3.39in (86 mm) |
What’s in the Box:
- AP-FL77SPG 6.5in LED Marine Speaker Pair
- Pair of audio cables with water-resistant two-way connectors
- Pair of LED cables with water-resistant six-way connectors
- Mounting screws
- Documentation
