Description

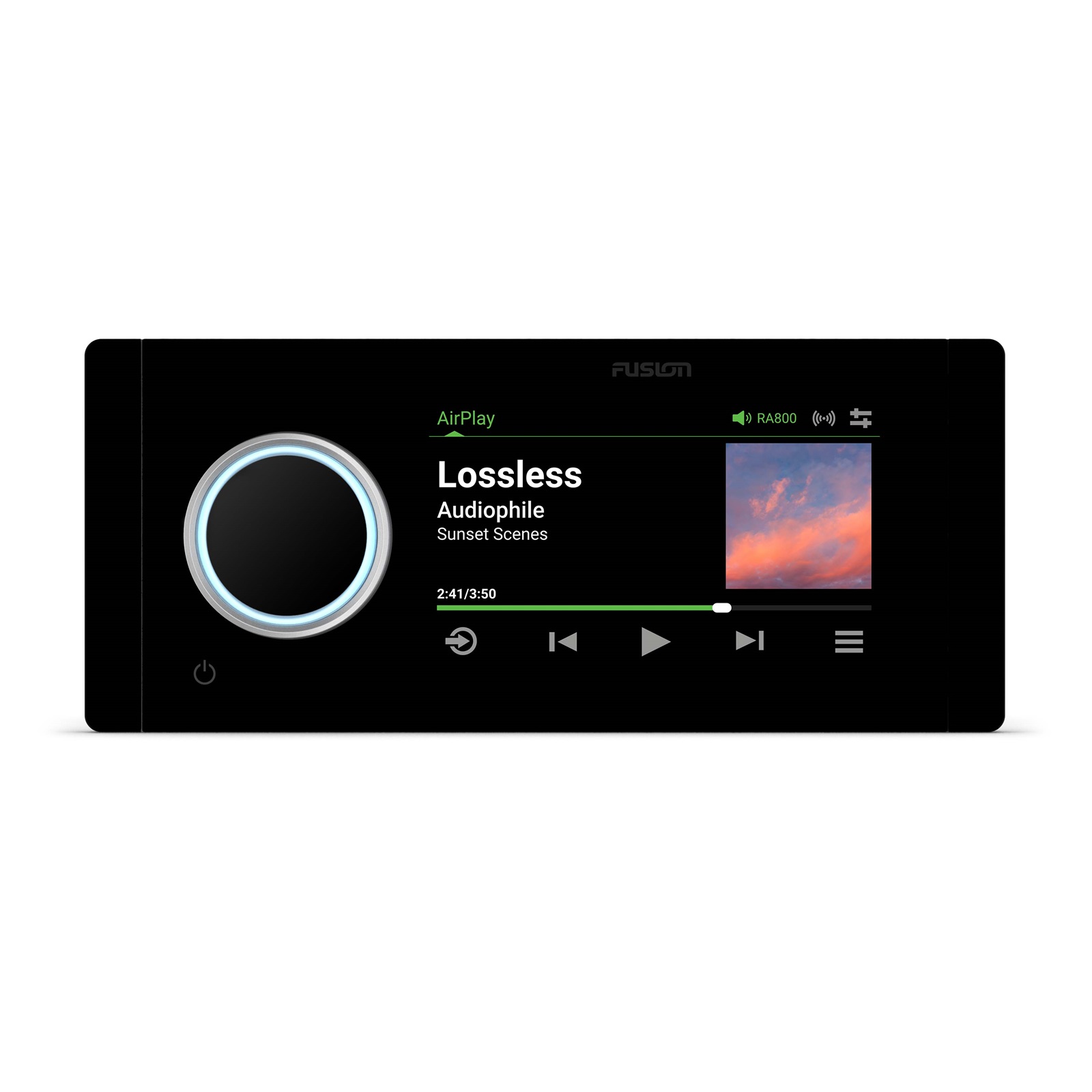

Fusion Apollo MS-RA800 Marine Stereo
Model: 010-02937-00
- SLEEK, MODERN DESIGN FEATURES EDGE-TO-EDGE GLASS DISPLAY
- ENJOY PREMIUM WI-FI STREAMING WITH HIGH-RESOLUTION LOSSLESS AUDIO
- BUILT-IN CLASS-D AMPLIFIER BOASTS 50% MORE POWER OUTPUT
- SEE QUICKER RESPONSE WITH 8 TIMES FASTER DIGITAL PROCESSING SPEED
- SHARE ONBOARD AUDIO SOURCES WITH STEREO GROUPING
- REMOTELY CONTROL YOUR MUSIC FROM COMPATIBLE DEVICES
It’s the most powerful and technologically advanced Fusion® marine stereo ever. With audiophile-level components and a built-in amplifier providing twice the power of the predecessor RA770, this system delivers lossless audio performance of unmatched clarity. Plus, its Wi-Fi® connectivity supports seamless AirPlay® audio streaming on your boat.
Our first marine stereo to support high-resolution lossless audio (up to 24 bits at 96 kHz), RA800 offers unparalleled sound quality — supported by Wi-Fi technology for seamless audio streaming.
The built-in Class-D amplifier can deliver 4 x 40 watts RMS (all channels driven) with less than 0.1% total harmonic distortion at 4 ohms — producing more than 50% more power output1 than its predecessor.
The stereo’s 4.3-inch LCD touchscreen display offers notable improvements1 in image resolution, color saturation, viewing angles and readability in bright daylight.
Connect your RA800 stereo with other Apollo Series stereos to create a network on board your boat. Enjoy advanced features, including stereo grouping, combined volume control, power options and Home Zone control.
Take advantage of a wide variety of source options available, including AirPlay streaming from Apple®, BLUETOOTH® connectivity, HDMI ARC, DAB+ radio tuner, USB connections, AM/FM radio and AUX inputs.
Easily network your RA800 stereo with a compatible Garmin MFD via NMEA 2000® networking for integrated audio control at the helm. Or use the Fusion® Audio app to wirelessly control your music from a compatible Garmin smartwatch or other smart device.
QUICK SWITCH FROM RA770 TO RA800: With an identical form factor and wiring loom as the predecessor RA770, upgrading and installation are simple with RA800.
Specifications
| General | |
| Physical dimensions (Height) | 3.23″ (82 mm) |
| Physical dimensions (Width) | 7.56″ (192 mm) |
| Physical dimensions (Depth) | 4.7″ (119.4 mm) |
| Weight | 1.37 lbs (620 g) |
| Control Surface Dust/Water Rating (when properly installed) | IPX6 and IPX7 |
| Rear Dust/Water Rating (when properly installed) | IPX3 |
| Operating temperature range | -20 to 70° C |
| Current draw (max) | 25 A at 14.4 V; 15A at 28.8 V |
| Warranty | 3 years |
| Networking | |
| NMEA 2000® LEN | 2 (65 mA) |
| BLUETOOTH® wireless range | up to 30 ft |
| ANT® wireless range | Up to 10 ft |
| Wireless frequencies/protocols | WiFi 2.4Ghz : +12dBm nominal MIMO 2 x 2 BLUETOOTH®: 2.4 GHz @ +10 dBm nominal ANT®: 2.4GHz 0dBm nominal |
| Audio | |
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) | 40 W x 4 |
| Electrical Features | |
| Power Input | 10.8 to 32 Vdc |
| Compass-safe distance | 5.9″ (150 mm) |
| Stereo Features | |
| Display size | 4.3″ (109 mm) |
| Display type | capacitive touchscreen color LCD |
| Display resolution | 800 x 480 |
| Optically bonded display | Yes |
| Built-in amplifier | Class D (4 Ohms) |
| Built-in Wi-Fi® | Yes |
| Built-in Digital Signal Processing (DSP) | Yes (with custom DSP profile setup using Fusion-Link™ app) |
| Stereo networking | Yes (wired or wireless) |
| Fusion-Link™ control | Yes (MFD, smart device and Garmin watch) |
| Multi-Zone™ technology | 4 zones |
| BLUETOOTH® wireless technology | Yes |
| ANT® wireless technology | Yes |
| Multi-language interface | Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR), Portuguese (PT), Slovenian, Spanish, Swedish, Thai, Turkish |
| Software updates | Over-the-air updates via Fusion-Link™ app (when connected to wireless network router) / USB |
| Sources | |
| Supported sources | AM, FM, BLUETOOTH®, Apple AirPlay® 2, HDMI ARC, USB audio, iPhone, iPod, AUX x2 |
| Supported audio formats (USB) | MP3, AAC, M4A, FLAC, WAV |
| Connections | |
| Auxiliary inputs (RCA) | 2 |
| HDMI ARC Ports | 1 |
| Ethernet ports | 1 |
| NMEA 2000® ports | 1 |
| USB 2.0 ports | 1 (USB-C) |
| AM/FM ports (Motorola antenna connector) | 1 |
| Speaker connections | 4 (2 zone amplified) |
| RCA pre-out (left, right and subwoofer – requires external amplification) | 4 zones |
| Line out (requires external amplification) | 4 (L + R per zone) |
| Subwoofer out (requires external amplification) | 4 (1 mono output per zone) |
What’s in the Box:
- Fusion Apollo™ MS-RA800 marine stereo
- Mounting gasket
- Four 8-gauge self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out and subwoofer-out wiring harnesses
- 6 ft (2 m) drop cable for the NMEA 2000® network
- Dust cover
- Documentation
