Description

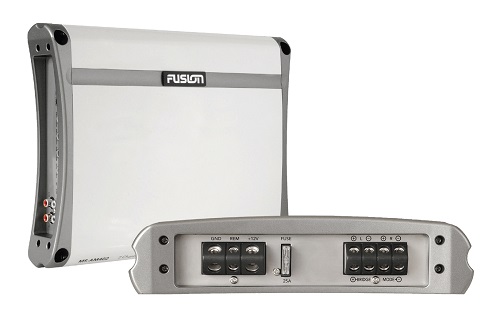

Fusion MS-ASM402 2 Channel Marine Amplifier
Model: 010-01499-00
UPC: 07537591392471
- Class AB Design – The 400 Watt 2-Ohm stable (per channel) design ensures clean and powerful amplification of the input signal, enough to rock the boat.
- Conformal Coated Circuitry – Provides added protection from salt air and moisture to ensure maximum product life.
- RCA Line Out – A pass through RCA output enables linking of multiple amplifiers for enhanced system performance
- 2 Channels – Capable of powering 2 speakers, a sub (bridged) or 4 speakers in parallel.
- Marien Grade Chassis – Stainless steel end caps and bottom plate provide a stunning finish with added environmental protection.
- Heat Sink Technology – Transfers heat more efficiently and offers more thermal stability for maximum component reliability.
Specifications
| Peak Power | 400 Watts |
| Rated Power | 14.4 Volt Power Output Specification 65 Watts RMS x 2 @ 4 Ohm 1% THD+N 100 Watts RMS x 2 @ 2 Ohm 1% THD+N 200 Watts RMS x 1 @ 4 Ohm Bridged 1% THD+N |
| Signal to noise | >95dB |
| Seperation | >60dB |
| Input sensitivity | 300mV – 8V |
| LP variable crossover | 40Hz – 160Hz @ 12dB/octave |
| HP variable crossover | 40Hz – 600Hz @ 12dB/octave |
| Variable bass boost | 0 – + 18dB @ 45Hz |
| Variable subsonic filter | 20Hz – 55Hz @ 18dB/octave |
| Input impedance | 20k? |
| Damping factor | >200 |
| T.H.D. | 0.05% |
| Fuse ratings | 1 x 25amp |
| Dimensions | 296mm L x 230mm W x 53mm H (11-2/3" L x 9" W x 2-1/6" H) |
What’s in the Box:
- Fusion AM Series Marine Amplifie400-Watt 2 Channel Marine Amplifier
- Documentation
