Description

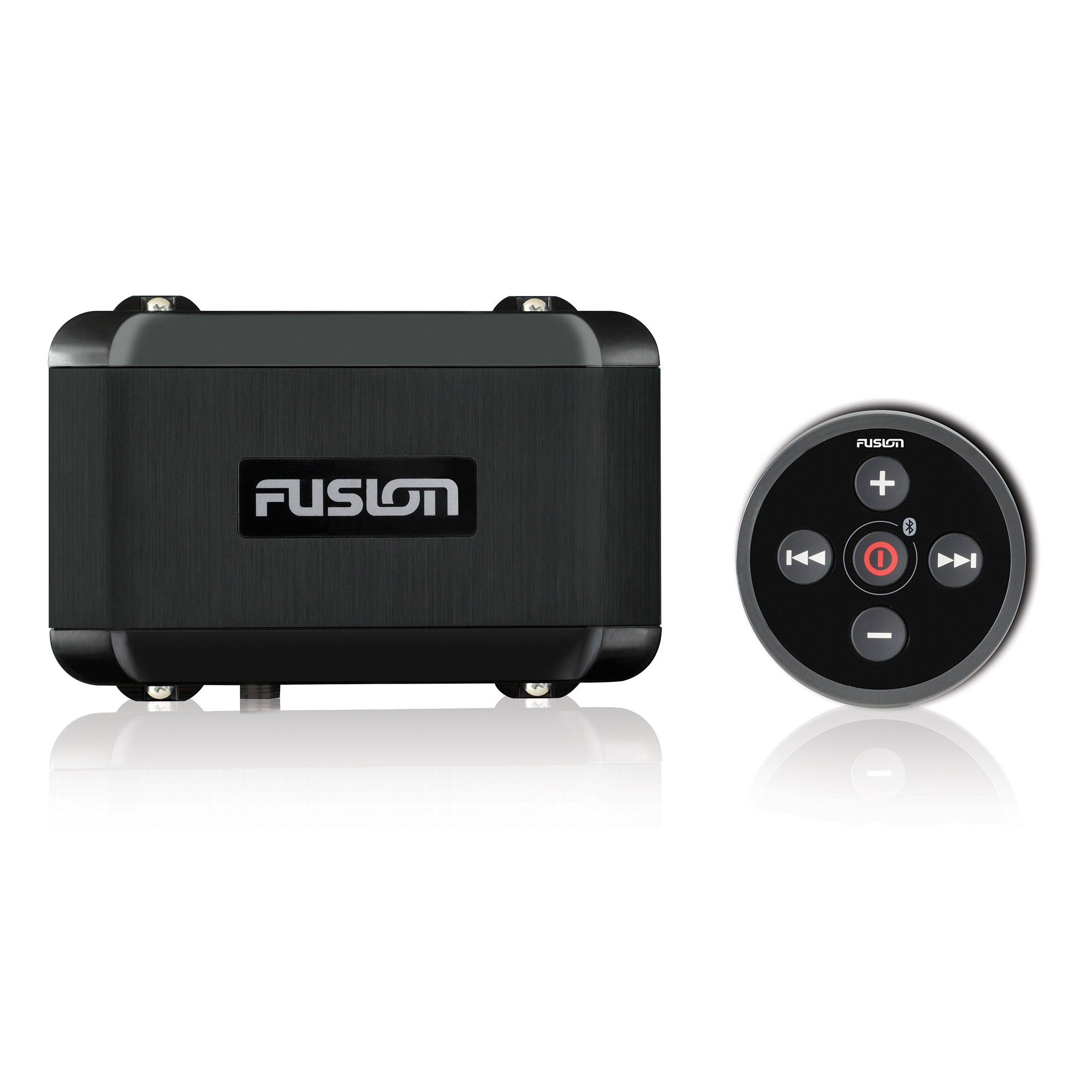

Fusion MS-BB100 Marine Black Box with Wire Remote
Model: 010-01517-01
- Small footprint Black Box design with included Bluetooth embedded wired remote
- A2DP Bluetooth Audio streaming with FUSION-Link app remote control available
- AM / FM Radio Tuner with support for DAB Radio (MS-DAB100A Module and Antenna Package)
- USB MP3 Playback with support for Apple iAP2 and Android AOA music
- IPx7 Waterproof wired remote with quick Bluetooth pairing
- Fush or Dash mounting remote control installation options
- FUSION-Link NMEA 2000 Ready for connection and control from any supported Multi-Function Display
- Multi-Zone Control (2 Zone System) Works with MS-NRX200i remote control when installed on a powered network (additional cabling required)
Introducing the MS-BB100, a compact black box entertainment solution that incorporates the marine industry supported FUSION-Link protocol and FUSION’s proven marine engineering skillset to deliver a boat load of tunes. An industry first, the BB100 includes an easy touch Bluetooth embedded IPx7 waterproof remote for quick audio adjustments. Supplied with a 2 Mtr (6.6Ft) connection cable, the wired remote is ideally shaped for hassle free installation onto a dash or boat console. With the Bluetooth receiver embedded into the remote we can reduce the likelihood of interference occurring between your smartphone and the receiver. Engineered for either dash or flush mount installation, you choose the finish to suit your vessel.
Operating the advanced FUSION-Link wired protocol via NMEA 2000, the BB100 will interface with any supported Multi-Function Display for on-screen control. The newly updated FUSION-Link wireless remote app for Apple and Android devices enables on-the-go control of the entertainment within Bluetooth range onboard your vessel.
The FUSION-Link Wireless Remote Control for iPad or iPhone is available for FREE download from iTunes.
The FUSION-Link Wireless Remote Control for Android is available for FREE download from Google Play.
Stream music from your favorite apps such as Pandora or Spotify, then switch to the remote app for zone adjustments, volume control and source selection. Supporting USB MP3 audio, Apple IAP2 and Android AOA playback the BB100 offers the users the ability to play, pause and skip tracks from the included wired remote, MFD or wireless app remote.
With two independent audio zones available, each with advanced localized menu controls, including zone naming, you can easily customize and control your listening experience in each zone. Note: Line Out/Sub Out requires additional amplification (Linked to Zone 1).
For a localized wired remote solution, the MS-NRX200i can be utilized with the BB100 when operating over a powered NMEA 2000 network.
Designed to be tucked away out of sight, saving valuable space at the helm, the MS-BB100 is easy to install. Simply secure, plug and play for effortless entertainment.
Specifications
| Amplifier | Class-AB 4 x 50W (@ 4 Ohm) |
| Android Open Accessory (AOA) | Android support is limited to devices which support AOA protocol, see supported device list for details |
| Audio Format USB | MP3 |
| Audio Zones | 3 on board amplified zones |
| Auxiliary inputs | 1 x Stereo RCA Input (AUX) |
| Bluetooth | A2DP Bluetooth Audio Streaming with AVRCP |
| DAB+ Ready | MS-DAB100A is required for DAB support, only available where DAB and DAB+ is broadcast |
| Fusion-Link Wired | Compatible with a FUSION NMEA 2000 wired remote control and any supported FUSION-Link MFD. A powered network is required for remote support |
| Fusion-Link wireless | Bluetooth remote control is available with the FUSION-Link remote control app available for download from iTunes or Google Play |
| iPod/iPhone | Made for iPod and iPhone – supports IAP 2 protocol only |
| Line out | 1 x L+R Linked to Zone 1 (requires amplification) |
| Nameable Zones | Up to 10 characters |
| NMEA 2000 Certified | LEN:1 |
| Subwoofer Out | 1 x Sub Out Linked to Zone 1 (requires amplification) |
| Tuner | AM/FM with RDS (where available) |
| Tuner Region | USA, Australasia, Europe and Japan |
| USB | 1 x USB connector at the rear of the unit, supports 1 amp charging |
| Water Resistance | IPx7 waterproof Remote from the front panel when correctly mounted. Black Box is rated IPx3 |
What’s in the Box:
- BB100 box
- BB100 wired remote
- Wire Harness
- Input harnes
- Documentation
