Description

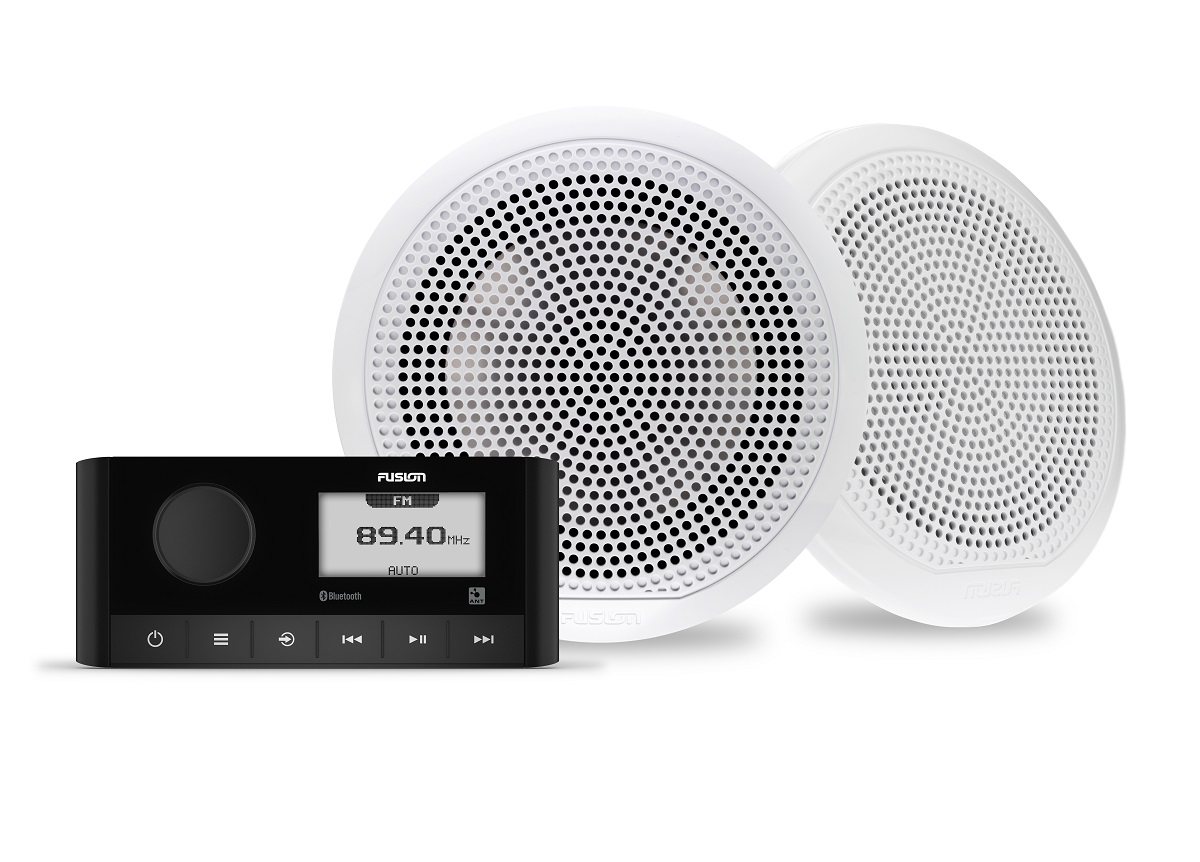

Fusion MS-RA60KCW Marine Stereo Bundle
Model: 010-02405-50
- Bonded LCD improves durability and protection against condensation and fogging.
- Built-in Class-D amplifier delivers higher efficiency and greater output.
- Enjoy convenient over-the-air software updates via BLUETOOTH® technology from the Fusion-Link™ app1.
- Enjoy convenient over-the-air software updates via BLUETOOTH® technology from the Fusion-Link™ app1.
- Control your music from your compatible smart device or Garmin watch.
The MS-RA60 is the most economical marine stereo from Fusion yet, featuring modern aesthetics, Multi-Zone™ Technology in two zones and advanced connectivity options in a compact form factor.
Designed and engineered for the harsh marine environment, the MS-RA60 stereo has an IPX6- and IPX7-rated water-resistant front panel to perform and last on board.
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.
The MS-RA60 is designed to fit in the MS-RA55 mounting profile, eliminating the need to alter your existing cutout, reducing complexity when upgrading your stereo system.
Take advantage of the multiple source options available, including BLUETOOTH technology, DAB+ radio, AM/FM radio and AUX connection.
The built-in DAB tuner supports the latest DAB and DAB+ broadcasts, allowing you to enjoy high-quality digital radio streaming wherever DAB and DAB+ are supported.
Model: 010-02080-00
The shallow basket design makes the EL Series ideal for installation where mounting depth is limited, for example, in thin wall cavities. Both the Classic and Sports speaker grilles have been specifically designed to provide the ultimate in cone protection, with a modern look to complement any vessel.
The EL Series speakers are rated IP65 for water and dust ingress protection from the front face when correctly mounted. Meeting industry standards for UV and salt fog protection, the EL Series speakers are perfect for both indoor or outdoor installation in the harsh outdoor and marine environments.
Specifications
| General | |
| Physical dimensions (H x W x D) | 2.68″ x 6.18″ x 4.06″ (68 x 156.9 x 103.2 mm) |
| Weight | 11.1 oz (316 g) |
| Water rating | IPX6 and IPX7 (front panel only, when properly installed) |
| Power input | 10.8-16 VDC |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Current (max.) | 15 A |
| BLUETOOTH wireless range | BLUETOOTH wireless range |
| ANT wireless range | Up to 10 ft (3 m) |
| Wireless frequencies/protocols | Bluetooth 2.4 GHz @ +12 dBm nominal |
| Compass-safe distance | 5.9″ (150 mm) |
| Stereo Features | |
| Display | 2.3″ perimeter bonded monochrome dot matrix LCD |
| Built-in amplifier | Class-D (minimum 4 ohm impedance) |
| Peak power | 180 W |
| Rated power output (4 ohm) | 22 W rms x 4 @ 14.4 V input, 4 ohm, 10% THD |
| Fusion-Link™ control | yes (with compatible Apple and Android devices) |
| Fusion-Link Lite control | yes (with compatible Garmin watch) |
| Multi-Zone™ technology | 2 zones |
| BLUETOOTH wireless technology | yes |
| ANT wireless technology | yes |
| DAB+ | yes (DAB tuner built in) |
| Multi-language interface | Dutch/English/French/German/Italian/Spanish |
| Software updates | Over-the-air software updates via BLUETOOTH wireless technology using the Fusion-Link app |
| Warranty | 1 year |
| Sources | |
| Sources | AM/FM/BLUETOOTH/AUX x1/DAB+ (available in Europe and Australia only) |
| Connectivity | |
| Auxiliary input | One RCA input (AUX) |
| AM/FM radio | One Motorola antenna connector port |
| Speaker | 4 x speaker connections (2 amplified zones) |
| 4 x speaker connections (2 amplified zones) | 1 zone (requires external amplification) |
| Line out | Zone 1: L + R (requires external amplification) |
| Subwoofer out | Zone 1 (requires external amplification) |
| Speakers | |
| Speaker size | 6.5″ |
| Peak power | 80 watts |
| RMS power rating | 20 watts |
| Efficiency (1W/1M) | 84dB |
| Frequency response | 100Hz-15kHz |
| Impedance | 4 Ohm |
| Cone material | Polypropylene |
| Mounting diameter clearance | 5 1/” |
| Mounting depth cllearance | 1 11/16″ |
What’s in the Box:
- Fusion MS-RA60 marine stereo
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- Documentation
- EL-F651W 6.55″ Speaker Pair
