Description

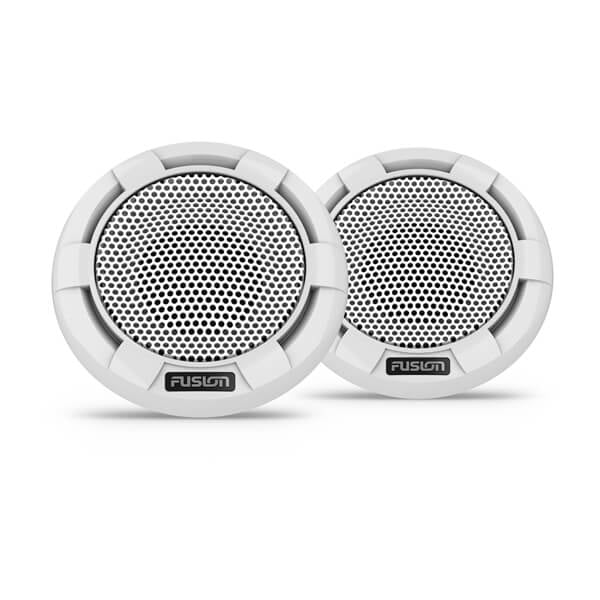

Fusion® Signature Series 3i Component Tweeters
Model: 010-02796-20
Enhance your listening experience while you’re on the move with these marinized component tweeters. Designed to be dash-mounted in raised positions to restore high frequencies, you can clearly hear vocals over engine, wind and wave noise. Key features include a compact form factor, low-profile mounting design, IP65 weather rating and True-Marine™ design with a 3-year warranty. Now with plug-and-play, water-resistant connectors as a standard, you can enjoy simplified installation and improved protection from the elements.
Specifications
| General | |
| Physical dimensions (diameter x depth) | 2.91″ x 1.64″ (74 x 41.6 mm) |
| Weight | 4.2 oz (0.12 kg) |
| Water and dust rating | IP65 |
| Tweeter size | 1″ |
| Peak power (watt) | 330 W |
| RMS power (watt) | 60 W |
| Sensitivity (1 W / 1 m) | 91 dB |
| Frequency response | 3 kHz – 20 kHz |
| Nominal impedance | 4 ohms |
| Recommended amplifier power (RMS) | 25 – 140 W/Ch |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 1″ |
| Material | Aluminum dome |
| Tweeter connection | Flying lead with water-resistant 2-way connector, 5.9″ (150 mm) |
| Compass-safe distance | 43.3″ (110 cm) |
| Warranty | 3 years |
| Mounting Dimensions | |
| Mounting diameter clearance | 2.01″ (51 mm) |
| Mounting depth clearance | 1.22″ (31 mm) |
What’s in the Box:
- One pair of component tweeters
- 6 Phillips stainless steel mounting screws (3.5 mm x 25.4 mm (6 gauge x 1"))
- 2 water-resistant cable assembly with 2-pin connector (5.9″ (150 mm))
- Documentation
