Description

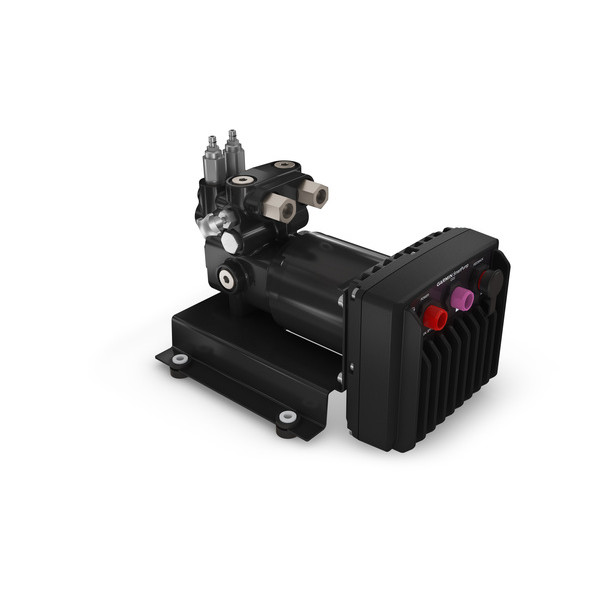

Garmin SmartPump v2
Model: 010-00705-62
Put an end to guessing which pump size will work with your particular boat. One SmartPump v2 works for most hydraulically steered boats and applications. For optimum control and confidence, you know you have the right pump for your boat. Plus, you get complete control in a smaller size with better thermal performance, higher reliability and lower power consumption. It also includes color-coded connectors to make it very easy to install.
Their SmartPump v2 features reduced overall size and weight from the previous version while maintaining corrosion-resistant components, including black dye on aluminum parts and nickel-plating on all steel parts.
Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in
Specifications
| Dimensions (H x W x D) | 6.6" x 7.5" x 10.4" (167.6 x 190.5 x 264.16 mm) |
| Weight | 16.5 lbs (7.5 kg) |
| Temperature range | From 5°F to 131°F (from -15°C to 55°C) |
| Material | Electronics Control Unit (ECU) – fully gasketed, aluminum alloy; bracket – carbon steel; manifold – aluminum alloy; motor – aluminum alloy |
| Power cable length | 9 ft (2.7 m) |
| Power input | 10-30 Vdc |
| Fuse | 40 A, blade-type |
| Main power usage | standby – less than 1 A; engaged – 5-10 A; peak – 34 A |
| Flow rate | Configurable from 0 to 2.4 L per minute |
