Description

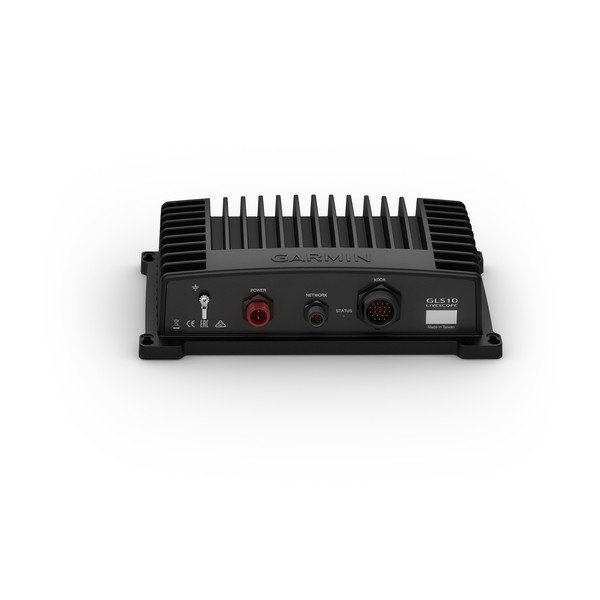

Garmin GLS10 Sonar Module
Model: 010-12954-00
The easy-to-install, networkable GLS 10 sonar black box allows you to see live, real-time scanning sonar. Add the LVS32 transducer model to see easy-to-interpret live scanning sonar images of structure, bait and fish swimming below and around your boat. And you can share sonar images seamlessly across multiple networked chartplotters.
Requires LVS32, not included
Specifications
| Physical dimensions | 9.6" x 5.9" x 2.6" (24.5 x 14.9 x 6.5 cm) |
| Weight | 4.3 lbs (2.0 kg) |
| Water rating | IPX7 |
| Garmin Marine Network™ ports | 1 (small connector) |
| Temperature range | Operating: -15 C to 70 C |
| Sonar Features & Specifications | |
| Frequencies supported | 530 – 1,100 kHz |
| Transmit power | 500 W |
| Maximum depth | Down and Forward: 200’ (61.0 m) |
| Electrical | |
| Power input | 10-32 V |
| Power usage | 21 W typical, 58 W max |
| Fuse | 7.5 A |
What’s in the Box:
- GLS 10 sonar module
- Power cable
- 2 meter Garmin marine network cable, small connector
- Network adapter cable
- Mounting hardware
- Documentation
