Description

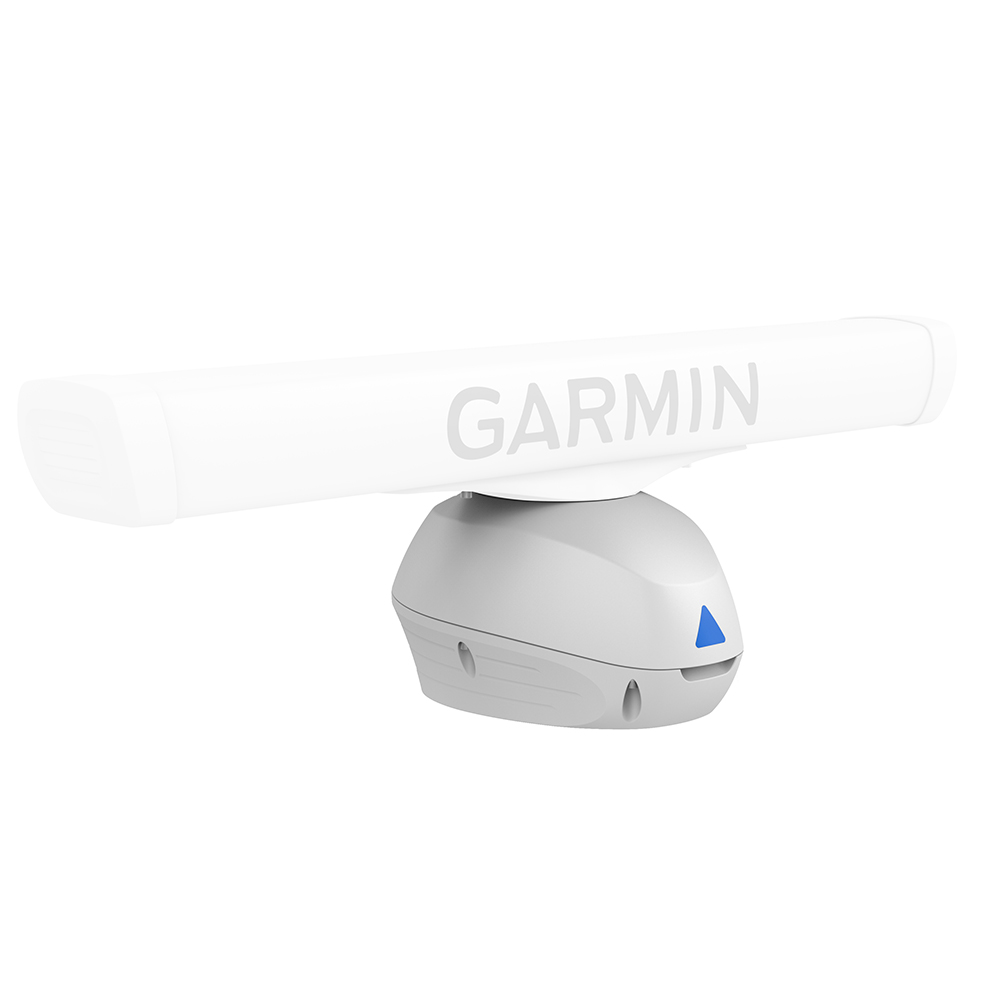

Garmin fantom 120 watt Pedestal and Cable only – White
Model: 010-01364-20
- Know what’s coming. MotionScope™ technology shows targets in color as they move toward you or away.
- GMR Fantom brings the power. 120 watts of it, actually.
- Get high resolution without wasting energy, thanks to pulse compression.
- Add even more detail to your maps with radar overlay — even in a split-screen view.
This 120-watt radar has a range from 20’ to 96 nautical miles, even in fog or rain. It offers rotation speeds of 24 RPM for reduced power consumption and 48 RPM for fast screen updates.
MotionScope uses the Doppler effect to detect moving targets and highlight them in different colors so you can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface.
This radar doesn’t have any complex user settings to deal with, so it’s easy to install and start using.
Specifications
| General | |
| DIMENSION | Pedestal: 16.6″ x 14.3″ x 10.7″ |
| WEIGHT | 34.7 lb (15.7 kg) |
| WATERPROOF | IPX6 |
| ROTATION SPEED (RPM) | 24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower) |
| MAXIMUM RANGE | 96 nm |
| MINIMUM RANGE | 6 meters |
| Electrical Features | |
| POWER INPUT | 10-32 V DC |
| TRANSMIT POWER | 120 W |
| Radar Features | |
| DUAL RANGE | Yes |
| OVERLAY | Yes |
| DUAL RADAR SUPPORT | Yes |
| AUTO BIRD GAIN | Yes |
| AUTO GAIN | Dynamic |
| MARPA TARGET TRACKING | yes (requires heading sensor, sold separately) |
| ECHO TRAILS | Yes |
| MOTIONSCOPE | Yes |
| PROGRAMMABLE ANTENNA PARKING | Yes |
| TARGET SIZE | Yes |
| SCAN AVERAGING | Yes |
| Antenna | Sold Separately |
What’s in the Box:
- GMR Fantom 50 watt Pedestal – White
- Mounting hardware kit and template
- Right angle power cable (15 meters)
- Right angle network cable (15 meters)
- Documentation
