Description

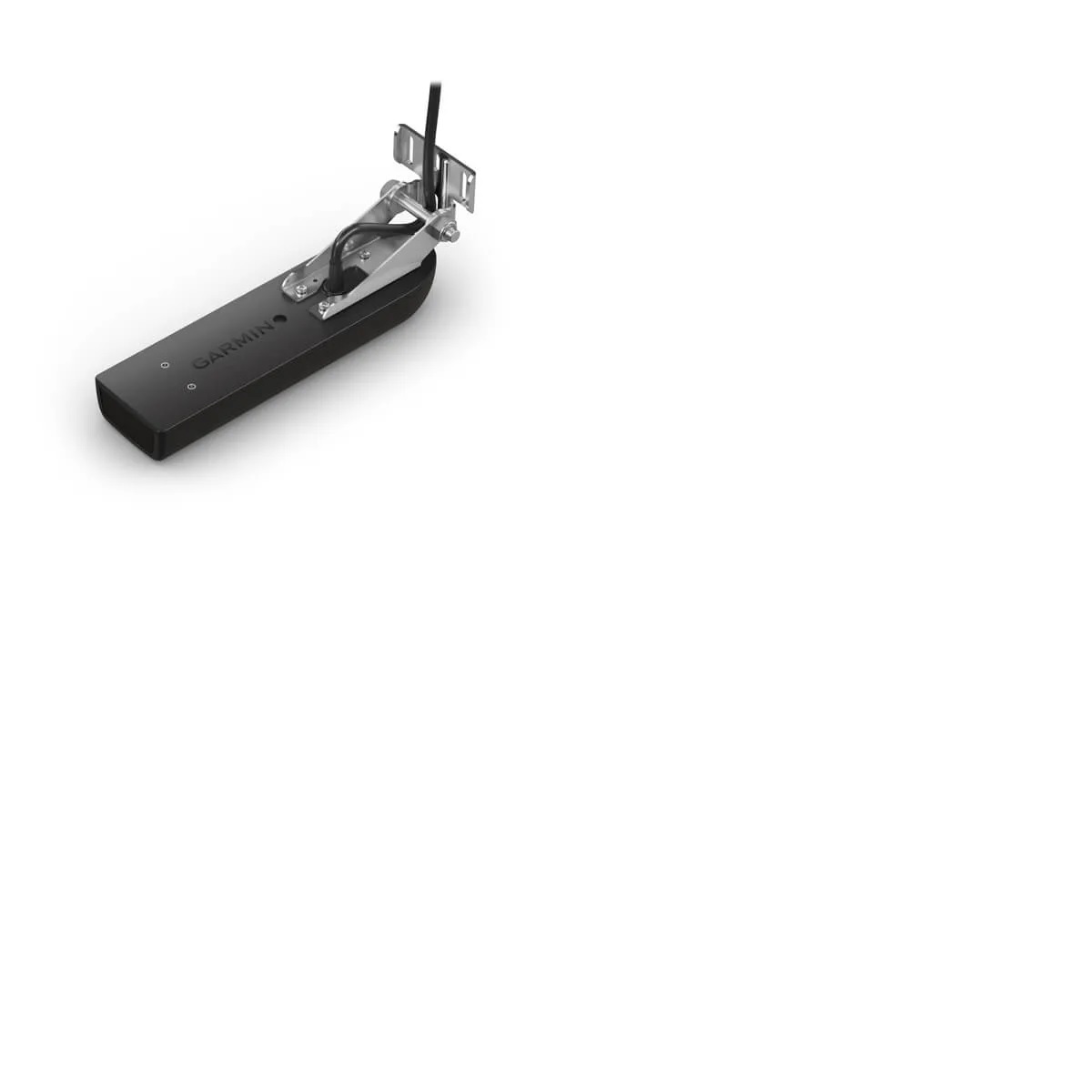

Garmin GT23M-TM Plastic, Transom Mount Transducer, Mid-Band CHIRP (80-160 kHz, 600 W)/CHIRP DownVü (260/455 kHz, 500 W) (8-pin)
Model: 010-12404-00
UPC: 753759148591
GT23M-TM transducer is perfect for coastal and offshore fishermen who want CHIRP traditional sonar and CHIRP DownVü scanning sonar. This transom mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.
The 8-pin transducer features mid-band CHIRP traditional sonar (80-160 kHz) and has a power rating of 600 W. The CHIRP DownVü (260/455 kHz) element has a power rating of 500 W.
For installation, follow the included instructions carefully to avoid damaging your boat.
Specifications
| Frequencies | Traditional: CHIRP 80-160 kHz DownVü: CHIRP 245-275 kHz and CHIRP 445-465 kHz |
| Beam width | Traditional: 24/13 DownVü: 2.0×51@260 1.4×29@455 |
| Maximum depth | Traditional: 1,800 ft DownVü: 1,000 ft |
| Transmit power | Traditional: 600 W DownVü: 500 W |
| Connector | 8 pin |
| Cable length | 30 feet |
What’s in the Box:
- GT23M-TM transducer
- Transom mount
- Mounting hardware
- Documentation
