Description

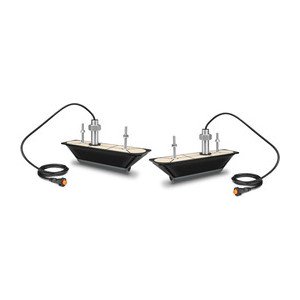

Garmin GT30-THP Thru Hull Pair
Scanning Transducer
Model: 010-01961-11
Perfect for the shallow water fisherman who want CHIRP ClearVü and CHIRP SideVü scanning sonar with stainless steel stems, this pair of 12-pin thru-hull transducers consistently displays clear definition of objects, structure and fish below and to each side of the boat.
These transducers with built-in fast response temperature sensors have a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVü) and 500 ft left and right (SideVü); an operating frequency of CHIRP 455/800 kHz ; for hull deadrises from 5 degrees to 25 degrees. Pair them with your GCV™ 10 scanning sonar module.
Includes 12-pin port and starboard transducers with stainless steel stems, isolation bushings, fairing blocks, Y-cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.
Specifications
| General | |
| Frequency | |
| ClearVü/SideVü CHIRP | 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz) |
| Power | |
| ClearVü/SideVü | 500 W |
| Beamwidth | |
| ClearVü | 1.4°x53° @ 455 kHz and 0.8°x30° @ 800 kHz |
| SideVü | 1.1°x53° @ 455 kHZ and 0.7°x30° @ 800 kHz |
| Maximum depth | |
| ClearVü | 750 ft |
| SideVü | 500 ft. |
| Depth/Speed/Temperature | Depth and Temperature |
| Number of pins | 12-pin |
| Cable length | 5 ft. + 30 ft. y-extension cable |
| Supported deadrise/Transom angles | Up to 25° deadrise |
