Description
Garmin GT8HW-TM Plastic, Transom or Trolling Motor Mount Transducer, High Wide CHIRP (150-240 kHz, 250W) (8-pin)
Model: 010-12401-00
UPC: 753759148553
GT8HW-TM transducer is perfect for shallow water fishermen who want clear bottom definition under the boat as well as crisp, clear and wide fish arches with excellent target separation. The wider beam width — up to 24 degree beam angle — provides a larger coverage area in the water.
The 8-pin transducer features high wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. It can be mounted on the transom or a trolling motor. Follow the included installation instructions carefully to avoid damaging your boat.
Specifications
| Frequency | CHIRP 145-240 kHz |
| Transmit power | 250 W |
| Max Depth | 800 feet |
| Beam Width (°) LF/HF (-3dB): | 24/16 |
| Read water Temperature | Yes |
| Connect | 8 pin |
| Cable Length | 20 feet |
What’s in the Box:

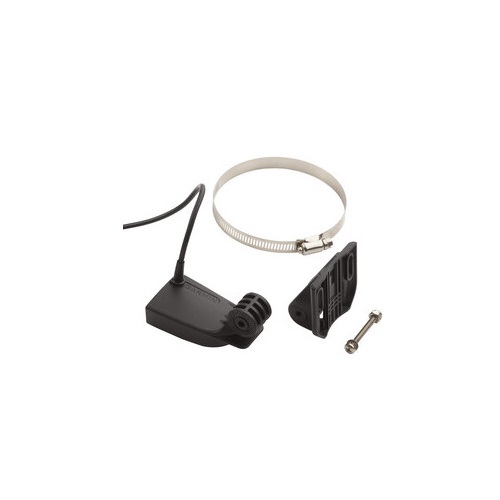

- GT8HW-TM transducer
- Transom mount
- Trolling motor mount
- Mounting hardware
- Documentation
