Description

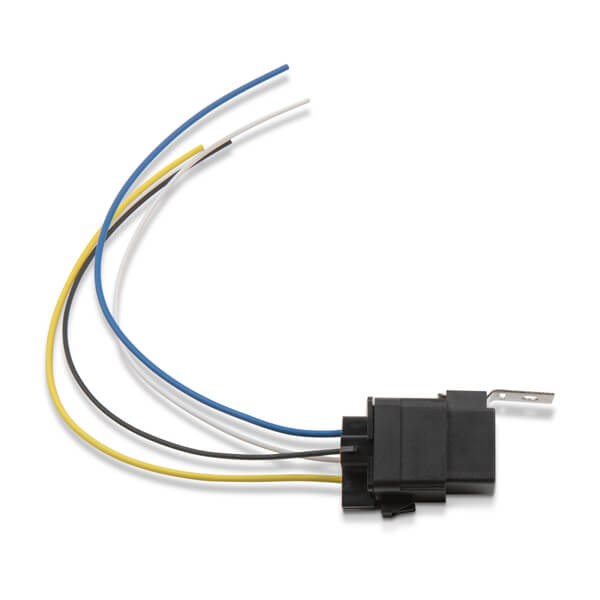

Garmin OnDeckTM Relay Switch (24 Vdc)
Model: 010-13009-07
Control your vessel remotely using the OnDeckTM Hub and a relay switch. Add up to five switches to your OnDeck Hub to stay in control.
Verify that the input power for your OnDeck Hub operates between 15.6 Vdc and 31.2 Vdc to ensure compatibility with your system.
Specifications
| From -15 deg to 85 degC (from 5 deg to 185 degF) | |
| Storage temperature range | From -40 deg to 155 degC (from -40 deg to 311 degF) |
| Control voltage (coil) | 15.6 to 31.2 Vdc |
| Load power min. (contacts) | 0.1 A |
| Load power max. (contacts) | Up to 9 A at 10 to 16 Vdc Up to 8 A at 20 to 32 Vdc |
