Description
Garmin Reactor™ 40 Kicker Autopilot Without GHC™ 20 Autopilot Display
Model: 010-00705-95
- Specially designed for boats with small gasoline outboard motors up to 20 horsepower
- Helps maintain heading hold and route to keep you on course — even against wind, waves or heavy current
- Includes convenient floating handheld remote control with a bright, sunlight-readable display
- Easily fine-tune autopilot throttle setting with the touch of a button to quickly drop to idle speed when netting a fish
- Easy to install and integrate with included GHC 20 autopilot display, compatible Garmin chartplotters or NMEA 2000® network-compatible GPS system
Whether you’re going for salmon, trout, walleye or some other species or just taking your sailboat out of the marina, your Reactor 40 kicker autopilot can help you maintain heading hold and route to keep you on course — even against wind, waves or heavy current.
The Reactor 40 kicker autopilot includes a convenient floating handheld remote control with a bright, sunlight-readable display. Quickly and easily fine-tune your autopilot throttle setting with the touch of a button, and quickly drop to idle speed when netting a fish or coming up to a mooring. Enjoy easy integration with our GHC 20 autopilot display, compatible Garmin chartplotters or NMEA 2000 network-compatible GPS system for a seamless onboard setup.
Specifications
| ECU-14 | |
| Dimensions | 6.9" x 5.6" x 2.6" (17.5 x 14.2 x 6.5 cm) |
| Supply voltage range | 10 to 32 volts |
| Operating temperature range | -20° to 70° C |
| Typical power consumption | 1 to 2 amps average depending on weather conditions |
| Water rating | IPX7 |
| Throttle Actuator | |
| Dimensions | 6.0" x 2.5" x 1.1" (15.1 x 5.9 x 2.8 cm) |
| Operating temperature range | 0° to 70° C |
| Water rating | IPX6 |
| Steering Actuator | |
| Dimensions | |
| Motor side | Extends 4" (10.3 cm) from end of tilt tube |
| Motor | 2.5" (6.2 cm) diameter |
| Overall length | Closed 17.5" (44.5 cm); Extended 25.3" (64.4 cm) |
| Steering Acuator General | |
| Operating temperature range | -20° to 70° C |
| Water rating | IPX7 |
| Reactor Remote | |
| Physical dimensions (W x H x D) | 6.0" x 2.0" x 1.3" (15.2 x 5.2 x 3.2 cm) |
| Weight | 3.8 oz (109 g) without batteries |
| Display type | Sunlight-visible, transflective memory-in-pixel (MIP) |
| Display size | 1.2" (3.0 cm) diameter |
| Display resolution | 240 x 240 pixels |
| Power | 2 x AA batteries (sold separately) |

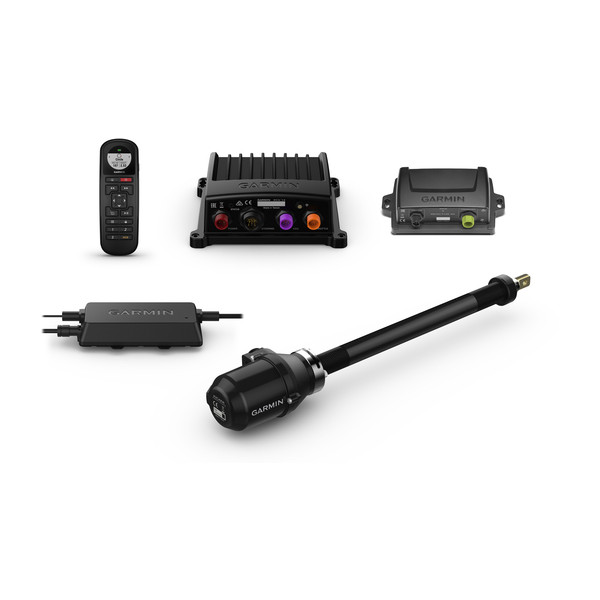

What’s in the Box:
- Autopilot Remote
- CCU (Course computer unit)
- ECU (Electronic control unit)
- ECU power cable
- ECU to CCU interconnect cable
- Steering actuator
- Throttle actuator
- Documentation
