Description

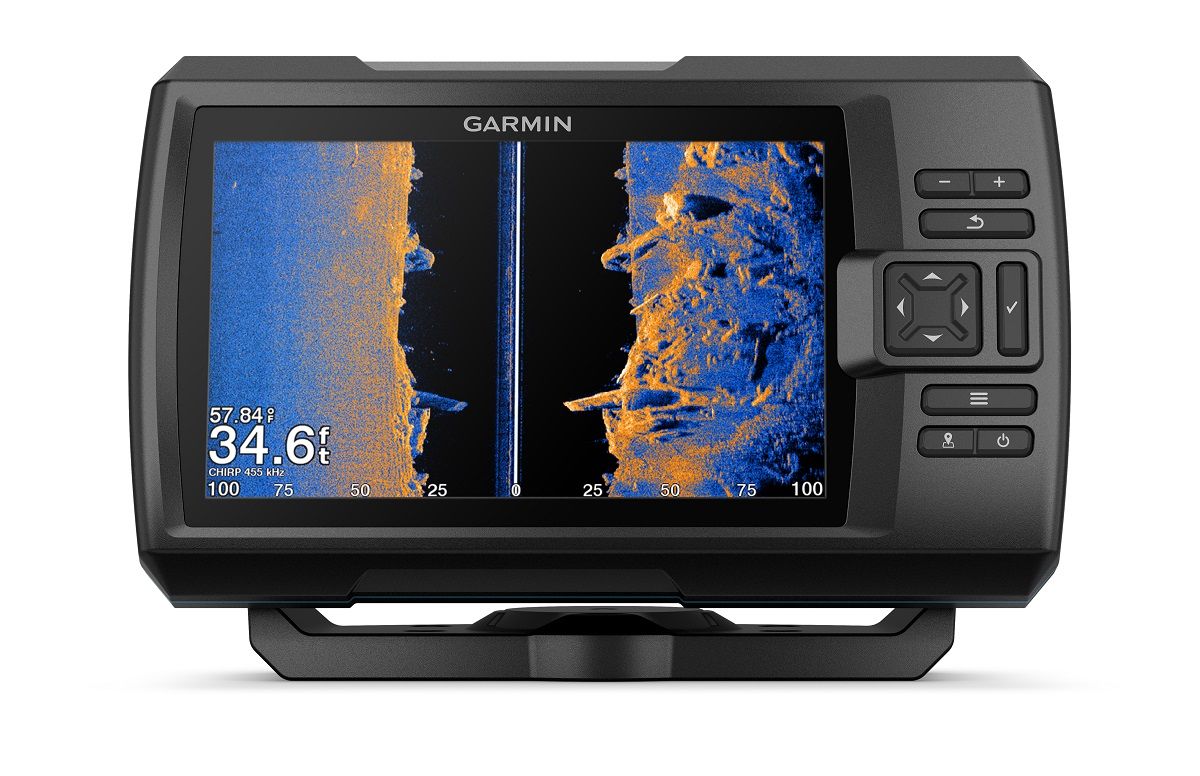

Garmin STRIKER™ Vivid 7sv without Transducer
Model: 010-02553-02
- The sonar color you pick says a lot about your fishing style. Good thing there are 7 new vivid options.
- What a view. This fishfinder supports 3 different types of CHIRP sonars when you pick up a transducer separately.
- Never lose a hot spot again. Use waypoint marking to find your way back.
- What’s under the water’s surface looks pretty good as 1" contours, just saying.
- Wi-Fi® connection1 on land opens up a world of possibilities on the water.
See fish and structure in maximum detail when you pick your display color, your location and your sonar for your day on the water with the STRIKER Vivid 7sv fishfinder.
Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 5" fishfinder.
To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.
Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.
Nobody knows the waters you fish better than you. With the STRIKER Vivid 7sv fishfinder, you can store up to 2 million acres of maps with 1’ contours.
The STRIKER Vivid 7sv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.
Connect to the ActiveCaptain® app1 to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw™ Community.
Specifications
| General | |
| DIMENSION | 9.3" x 5.5" x 2.3" (23.5 x 14.0 x 5.8 cm) |
| WEIGHT | 1.7 lbs (0.8 kg) |
| WATER RATING | IPX7 |
| DISPLAY TYPE | WVGA color |
| DISPLAY RESOLUTION | 800 x 480 pixels |
| Maps & Memory | |
| NAVIGATION ROUTES | 100 |
| MAPS | Not Applicable |
| Sonar Features | |
| FREQUENCY | Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü and SideVü 260/455/800 kHz |
| TRANSMIT POWER | 500 W (RMS) |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) | Yes |
| WATER TEMPERATURE LOG | Yes |
| Fishfinder Features | |
| SPLIT-SCREEN ZOOM | Yes |
| FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS) | Yes |
| AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER; MAXIMIZES TARGETS) | Yes |
| ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS) | Yes |
| A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM) | Yes |
| WATER TEMPERATURE SENSOR INCLUDED | Yes |
| Additional | |
| One 4-pin transducer port | Yes |
| One 4-pin SideVü transducer port | Yes |
| Wireless Connectivity | Yes |
| Quickdraw Contours | Yes |
| Integrated GPS | Yes |
| Mark Waypoints | Yes |
| Course over Ground (COG) | Yes |
| Current draw @ 12V | 0.67A |
| Waypoints | 5,000 |
| Track Log | 50,000 points; 50 saved tracks |
| Routes | 100 |
What’s in the Box:
- STRIKER Vivid 7sv fishfinder
- Power/data cable
- 12-pin to dual 4-pin transducer adapter cable
- Tilt/swivel mount
- Hardware
- Garmin bumper sticker
- Documentation
