Description

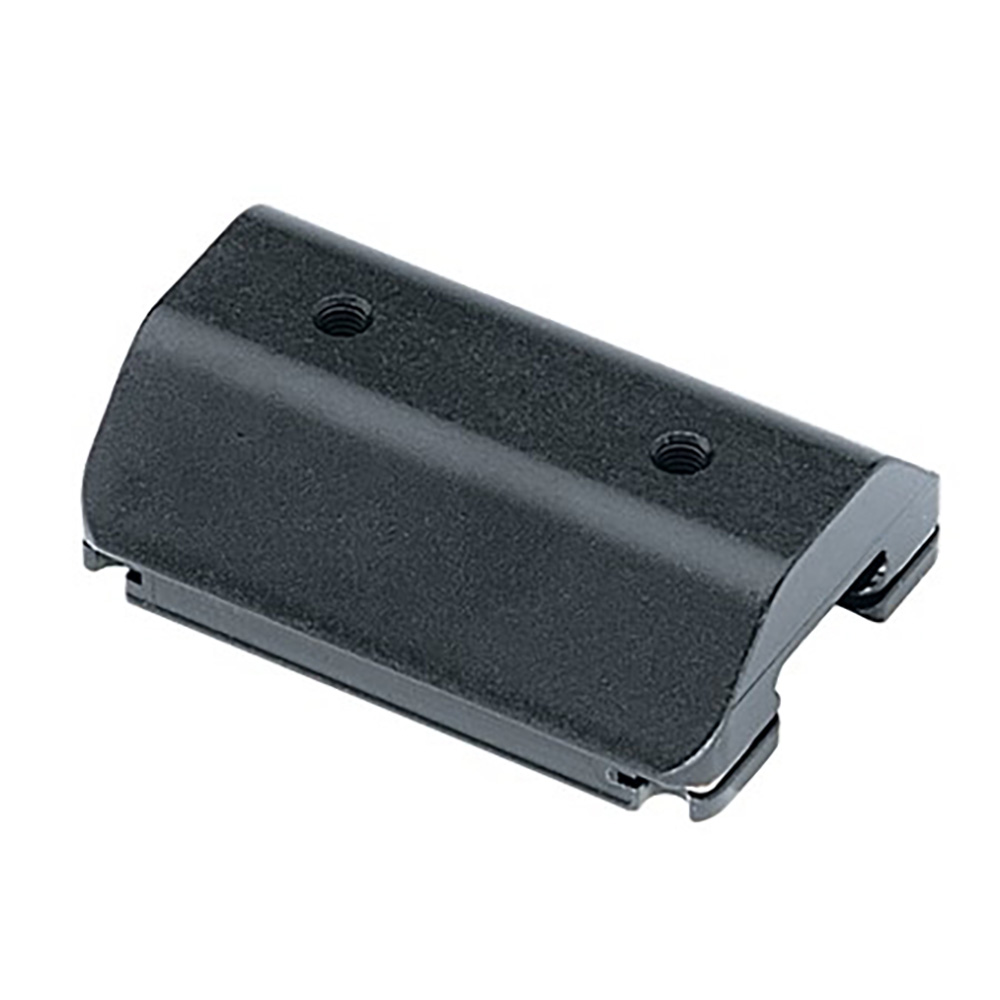

13mm High-Load Trolley with 2X M4 Tapped Holes
This trolley features recirculating ball bearings housed in strong, lightweight, corrosion-resistant aluminum for dependable, low-friction linear travel. Use for moving loads and equipment, hoisting, and moving stage equipment, and architectural solutions.
Features:
- High-load trolley with two M4-tapped holes on top
- Torlon® ball bearings handle high loads, reducing friction so the trolley moves smoothly along the rail
- Retaining clips keep ball bearings captive when the trolleys are removed for maintenance
Specifications:
- Length (mm): 56 mm
- Length (in): 2-3/16 in
- Width (mm): 40 mm
- Width (in): 1-9/16 in
- Weight (g): 57 g
- Maximum Rated Load (kN): 1.4 kN
- Height (mm): 19 mm
- Height (in): 3/4 in
- Weight (oz): 2.01 oz
- Breaking Load (kN): 6.7 kN
