Description

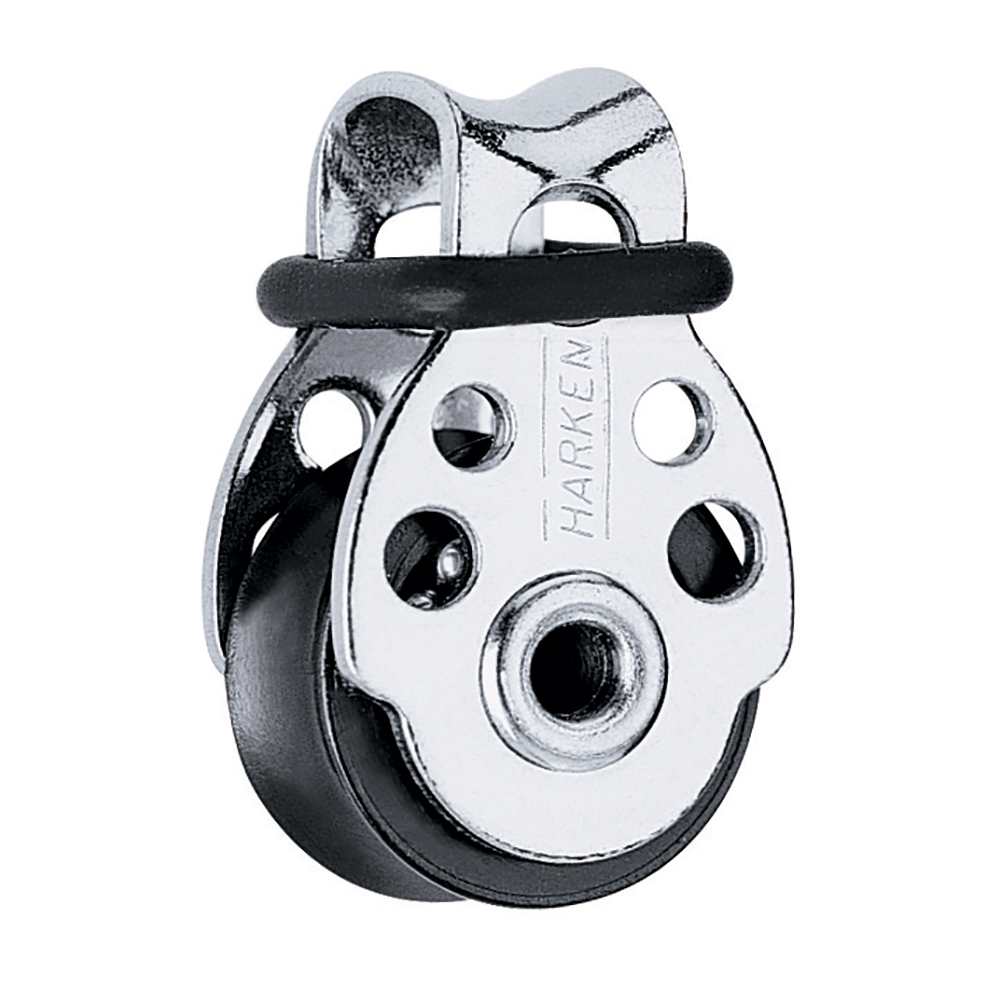

16mm Block

The 16 mm is Harken’s® smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load. The 404 uses an O-ring to keep the line in the sheave during intermittent loading.

Specifications:

• Sheave: 16mm / 5/8in.
• Length: 29mm / 1-1/8in.
• Weight: 10g / .33oz
• Maximum line: 5mm / 7/32in
• Maximum working load: 113kg/ 250lb
• Breaking load: 544kg / 1200lb
