Hawkeye DepthTrax In-Dash Digital Depth & Temp Gauge – Thru-Hull

85613
HawkEye

$179.99 $135.45

0 in stock
Qty :

Description

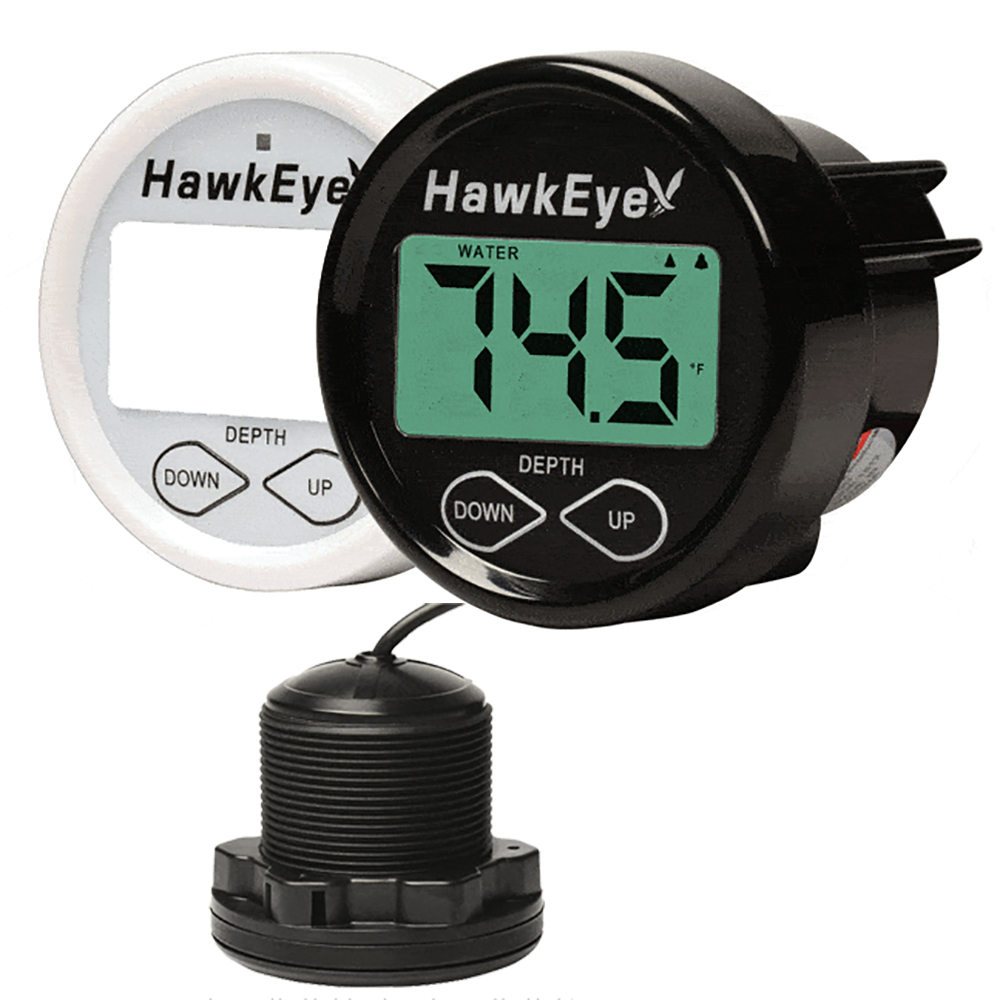

DepthTrax Dash Digital Depth and Temp Gauge – Thru-Hull

The DepthTrax 2BX includes all the advanced sonar, depth alarm, and keel offset capabilities of the DepthTrax 2B, but also integrates dual temperature displays and an AIRMAR®, ultra-sensitive, high-performance thru-hull  transducer.  With a simple press of a button on the DepthTrax 2BX display produces instant access to water or air temperature readings via integrated sensors in both the head unit and the transducer.

The DepthTrax 2BX delivers a combination of performance and affordability unrivaled in any other depth sounder.

Features:

  • Algorithmic programming significantly reduces false readings and produces unmatched precision
  • EasyTouch programming allows one-touch access to the user settings
  • User programmable keel offset automatically adjusts depth readings for vessels’ draft requirements
  • Selectable Imperial or Metric readout
  • Dual Upper and Lower depth alarms can be set throughout the full depth range
  • 3-Stage Advanced Warning System™ clearly signals an alarm condition with an audible alarm, LED and LCD indicators with one-touch alarm muting
  • Displays air & water temperature in °F or °C
  • Automatic memory retention of all user settings
  • Removable face system – includes White & Black faceplates and White/Black trim rings
  • No glare, polarized LCD icon display with storage sun cover
  • SoftGlow™ backlit display and programming keys – low intensity, low temperature lighting prevents eye strain and condensation while providing unparalleled nighttime viewing

Technical Specifications:

  • Gauge Dimensions (Diameter x Depth) – 2″ x 1.75″ (51 x 45mm)
  • Screen Dimensions (Height x Width) – 1.65″ x .87″ (42 x 22mm)
  • Gauge Cut-out Size – 2″
  • Operating Temperature – 0 to 160° F (-18 to 71°C)
  • Depth Range – 2.5′ to 600′ (.7 to 180 M)
  • Transducer Type – Thru-Hull
  • Transducer Cut-out Size – 2″
  • Transducer Frequency – 200kHz
  • Transducer Beam Angle – 14°
  • Transducer Cable Length – 30′ (9 M)
  • Power Requirement – 12 – 14 VDC

In the Box:

  • Gauge
  • Bezel/Faceplate – Black and White
  • Display sun cover
  • Mounting hardware
  • Transducer – thru-hull w/30′ cable
  • Instruction manual

*Sold as an Individual

Owner Manual

Voltage - Input Range (Volts) = 12 - 14 | Series = NONE | Gauge Type = Depth Sounder | Gauge Size = 2" | Box Set = No

https://www.youtube.com/embed/0UZbEnsR6m8|https://www.youtube.com/embed/6lWhHQrFIbA

Additional information

Weight 2.15 lbs
Dimensions 10 × 7 × 4 in
Model Number DT2BX-TH
