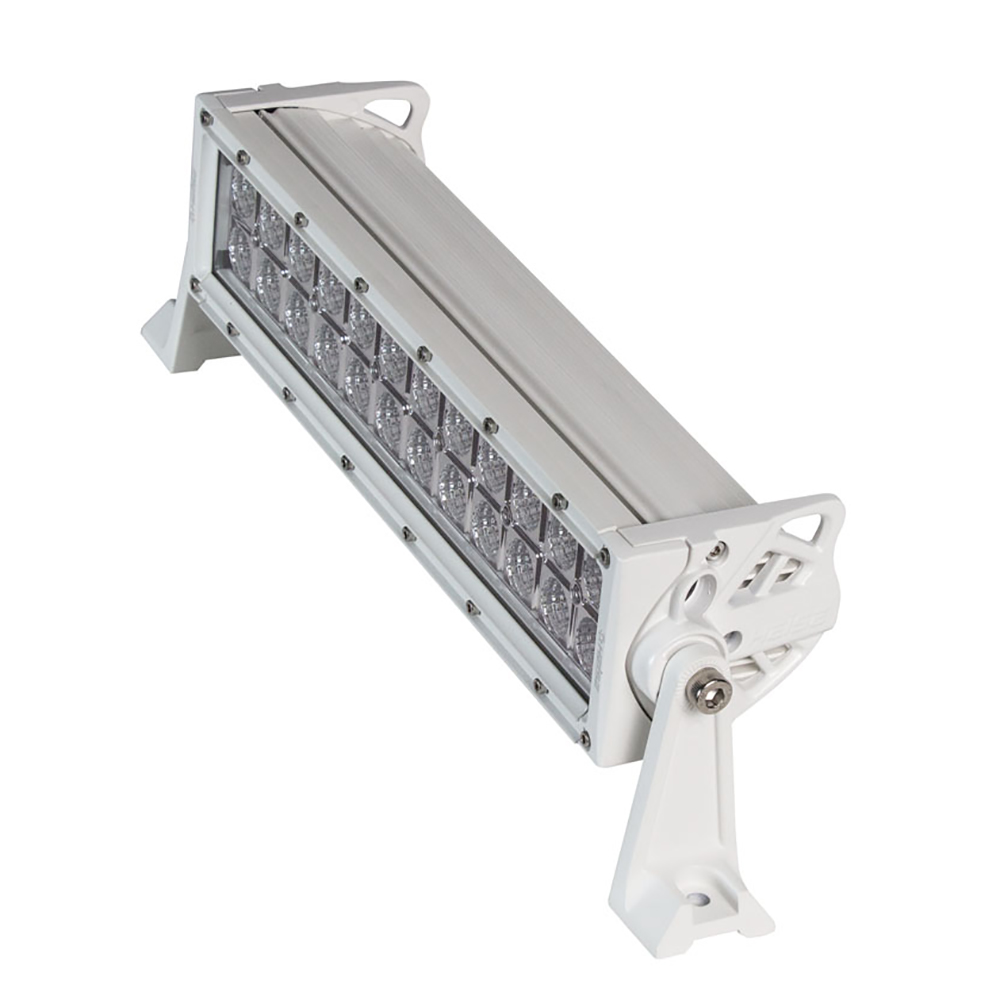

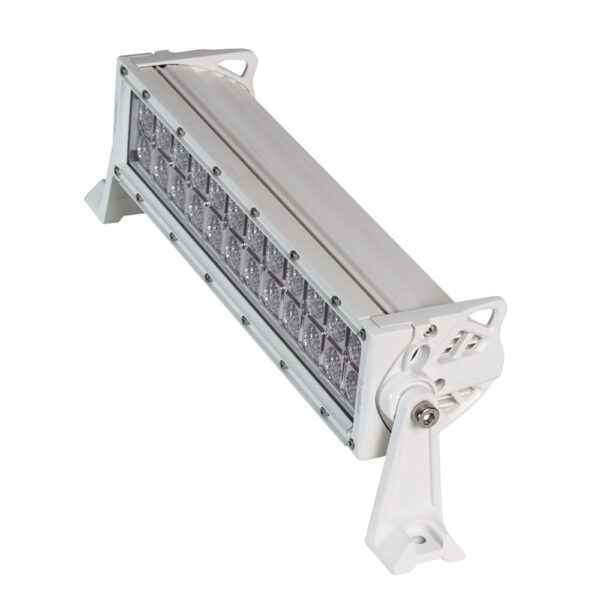

HEISE Dual Row Marine LED Light Light Bar – 14″

69771
HEISE LED Lighting Systems

$249.99

(MAP Pricing)
Place in cart to see Sale Price

3 in stock
Qty :
, , ,

Description

Dual Row Marine LED Light Light Bar – 14″

SPECS

  • Input Voltage: 10-30V DC
  • Wattage: 72W (24-3W CREE LEDs)
  • Raw Lumens: 5400
  • Color Temperature: 6000K
  • Beam Pattern: Combo/Flood(90deg)/Spot(8deg)

CONSTRUCTION

  • Housing Material: Die-cast Aluminum Housing
  • Housing Color: White Coating with UV Inhibitors
  • Membrane: Gore™
  • Lens Material: PC
  • Mounting Bracket: Die-cast Aluminum
  • Hole Dimensions: Brackets turned inward – 13.50in
  • Brackets turned outward – 14.75in
  • Mounting Bolt Drill – .25in
  • Electronics: Integrated-Epoxy Encapsulated
  • Hardware: Stainless 316

OPERATION

  • Operating Temperature: -40degC to +60degC
  • Current Consumption: 3.7amps at 13.8 volts
  • IP Rating: IP68
  • Protections: Reverse Polarity

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Beam Pattern = Spot-Flood Combo | Length (Inches) = 14" | Housing = White | Voltage - Input Range (Volts) = 10-30v

Additional information

Weight 5.2 lbs
Dimensions 19 × 6 × 6 in
Model Number HE-MDR14
UPC 086429312894
