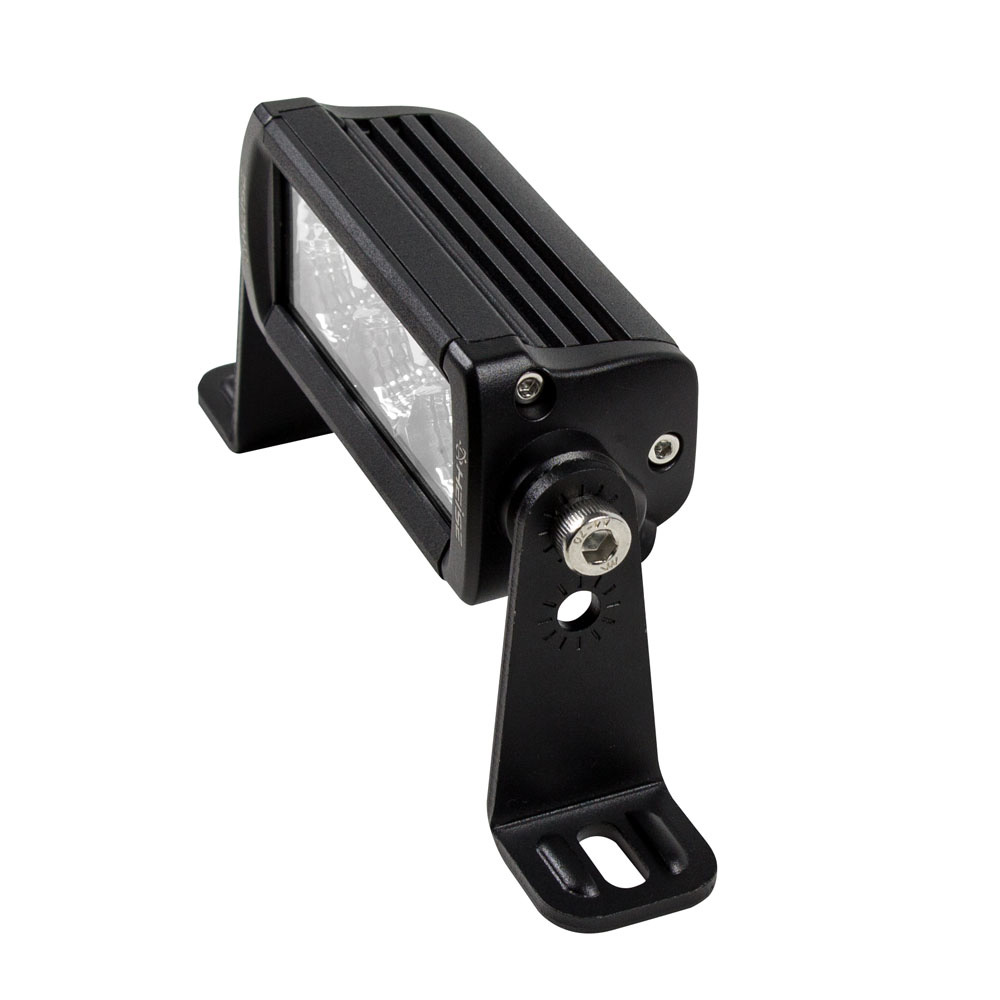

HEISE Single Row Slimline LED Light Bar – 5-1/2″

69741
HEISE LED Lighting Systems

$123.99

(MAP Pricing)
Place in cart to see Sale Price

1 in stock
Qty :
, , ,

Description

Single Row Slimline LED Light Bar – 5-1/2″

SPECS

  • Input Voltage: 10–30V DC
  • Wattage: 9W (3–3W OSRAM LEDs)
  • Raw Lumens: 720
  • LUX @ 10M: 10
  • Color Temperature: 6000K
  • Beam Pattern: 90° Flood

CONSTRUCTION

  • Housing Material: Powder Coated Aluminum
  • Housing Color: Black
  • Membrane: Gore™
  • Lens Material: PC
  • Mounting Bracket: Die–cast Aluminum
  • Mounting: Side and Bottom
  • Hole Dimensions:
  • Brackets turned inward – 5.25″
  • Brackets turned outward – 7.25″
  • Mounting Bolt Drill – .25″
  • Height of Light Bar Itself: 2″
  • Depth of Light Bar Itself: 2″
  • Electronics: Integrated–Epoxy Encapsulated
  • Hardware: Stainless 316

OPERATION

  • Operating Temperature: –40°C to +60°C
  • Current Consumption: .4 amps @ 13.8 volts
  • IP Rating: IP67
  • Protections: Reverse Polarity

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Beam Pattern = Flood | Length (Inches) = 5.5" | Housing = Black | Voltage - Input Range (Volts) = 10-30v

Additional information

Weight 2.15 lbs
Dimensions 16 × 5 × 5 in
Model Number HE-SL550
UPC 086429317400
