Hella Marine Easy Fit Step Lamp – Red w/Chrome Cap


$26.67 $15.95

2 in stock
Qty :

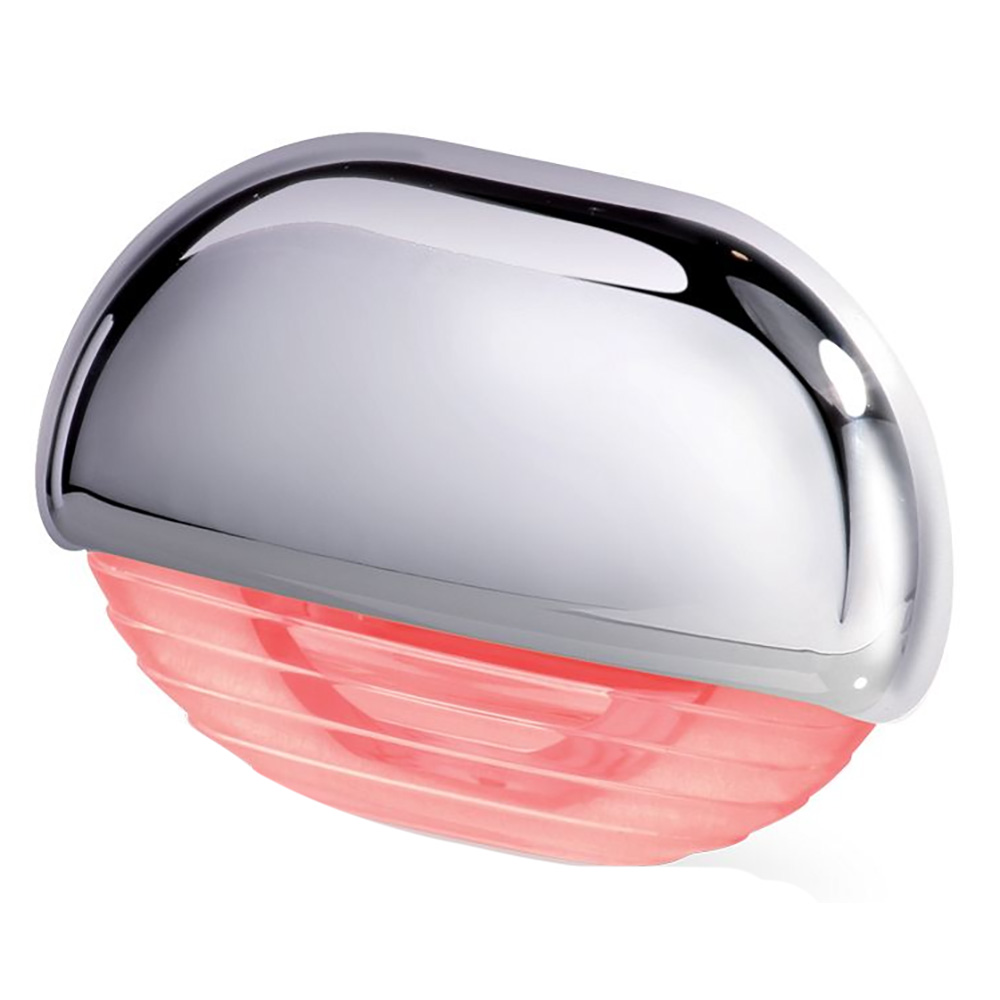

Easy Fit Step Lamp – Red with Chrome Cap

Attractive and timeless LED courtesy lighting for a wide variety of interior and exterior lighting applications.

Light is radiated downward at an angle of 30°. This lamp is ideal for illuminating onboard areas such as steps, stairs, toe kicks, storage areas, companion ways, deck fittings, signs, and switches without shining in the eyes.


  • The lamp is pre-wired with 100mm of marine cable and supplied with stainless steel screws
  • The optic appears clear until illuminated
  • Multivolt electronics ensure constant light output in 12V or 24V DC systems
  • Easy Fit Gen 2 series lamps are completely sealed, shock and vibration-resistant, and represent reliable ‘fit and forget’ technology


  • Lens Material: UV-resistant enhanced impact acrylic
  • Cap Material: Chrome-plated plastic
  • Light Color: Red
  • Cable: Pre-wired with 100mm of twin-core marine cable
  • Operating Voltage: Multivolt for optimum brightness in 12 and 24-volt systems
  • Power Consumption: 0.5W ( < 0.04A@12V / < 0.02A@24V )
  • Degree of Protection: IP 67 – Completely Sealed
  • Weight: Stainless Cap – 30g (including cable). Plastic Cap – 15g (including cable)
  • Approvals: CE, RCM

Quick Guide Litreture

Brochure Litreture

Bulb Type = LED | Dimming = NONE | Housing = Chrome | LED Color = Red | Voltage - Input Range (Volts) = NONE

Additional information

Weight 0.1 lbs
Dimensions 5 × 3 × 1 in
Model Number 958126201
UPC 9416325238331
