Description

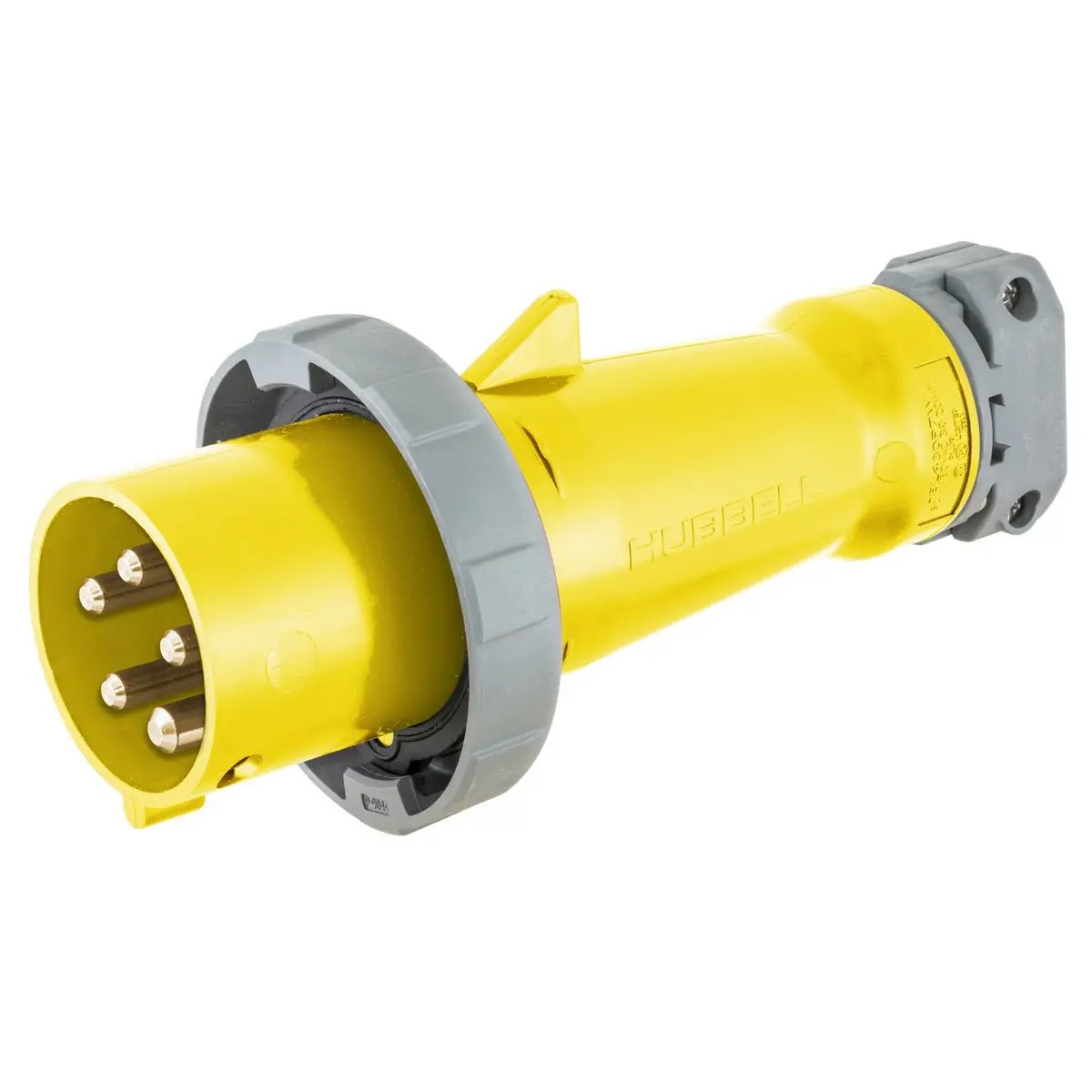

Hubbell M5100P7 5-Wire 100 Amp 480 Volt Male Plug
Model: M5100P7
- Solid one-piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal
- Raised collar surrounds each phase pin
Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Male, Plug, 100A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Yellow
Specifications
| Number of Poles | 4 |
| Amperage Rating | 100 |
| Connectivity | Pressure Terminal Screws |
| Current Rating | 100 |
| Phase | Three Phase |
| Voltage Rating | Three Phase Y 277 VAC Three Phase Y 480 VAC |
| Number Of Wires | 5 |
| Wire Size | #3 To #1/0 AWG copper wire only |
| Mates with | M5100C7 |
