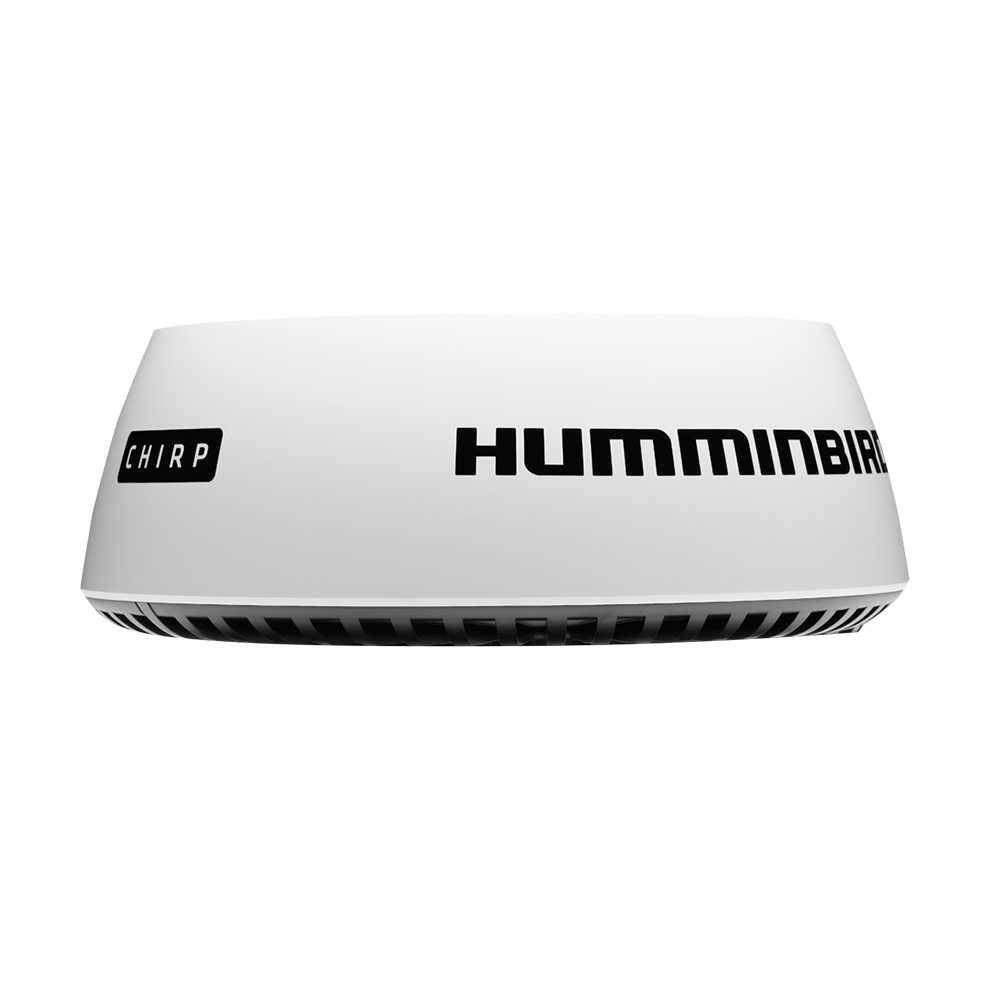

HB2124 CHIRP Radar

Compatible with select networking HELIX models and ONIX, Humminbird CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid state radar. It delivers superior RADAR imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify birds and floating obstacles for clues to where gamefish are located. You can also track weather and vessels with amazing definiton.

Features:

• Antenna Dimension – 21″ Enclosed Dome

• Antenna Type – Patch Array

• Peak Power Output – 20W

• Transmit Frequency – 9354 to 9446 MHz

• Beam width (nominal) – 4.9° Horizontal and 20° Vertical

• Input Voltage – 12 or 24 VDC (Miniumum – 10.8 Volts, Maximum – 31.2 Volts)

• Networking – Ethernet

• Maximum Range Scale – from 1/16 to 24 nautical miles

• Power Consumption – Transmit mode – 17W; Standby Mode – 7W; Sleep Mode – 2W

• Duplexer – Circulator

• Pulse Widths @ 3 dB – 40 ns to 14.7µs

• CHIRP Lengths – 400 ns to 20µs

• CHIRP Bandwidth – Up to 32 MHz

• IF Bandwidth – 26 MHz

• Noise – Less than 4 dB

• Polarization – Horizontal

• Waterproofing – IPX6

• Weight – 12.3 lbs (5.6 kg)

• Compatibility Networking HELIX models and all ONIX models
