Description

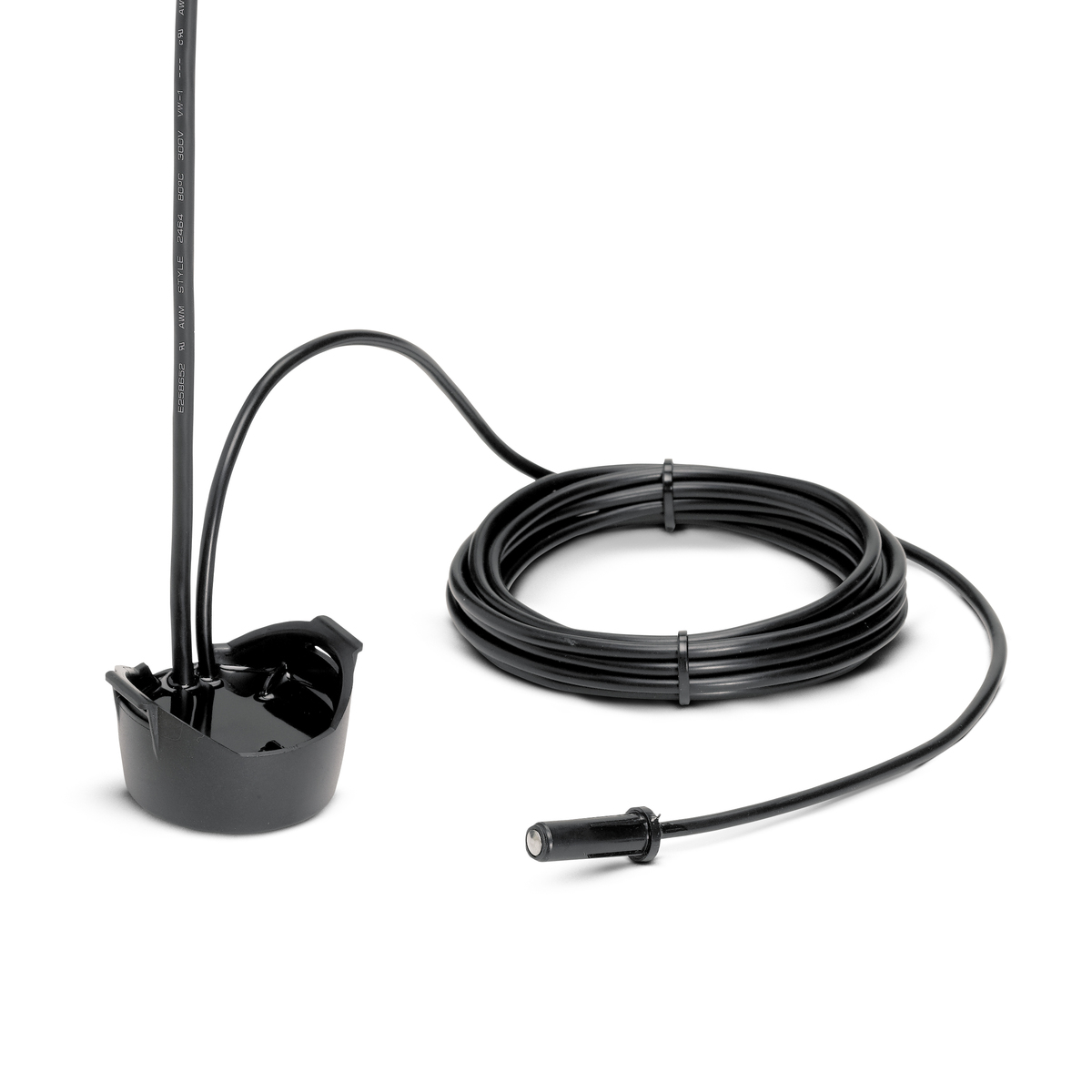

Humminbird XP-9-HW-T Puck

Model: 710276-1

• This accessory is compatible with the following Humminbird products: HELIX 5 CHIRP G2 — GPS-equipped models only, HELIX 7 CHIRP G2/G3 — GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N — All models, HELIX 8 CHIRP G3N — All models, HELIX 9 CHIRP G2N/G3N — All models, HELIX 10 CHIRP G2N/G3N — All models, HELIX 12 CHIRP G2N/G3N — All models, ICE HELIX CHIRP G2 — All models (In Open Water Mode).
• Side Imaging™ and Down Imaging™ units can support the XP 9 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging.
• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)

In-Hull Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Intended for glue-in installation inside single layer fiberglass hulls. Includes built-in temperature sensor, epoxy kit and 20’ cable.

Specifications
