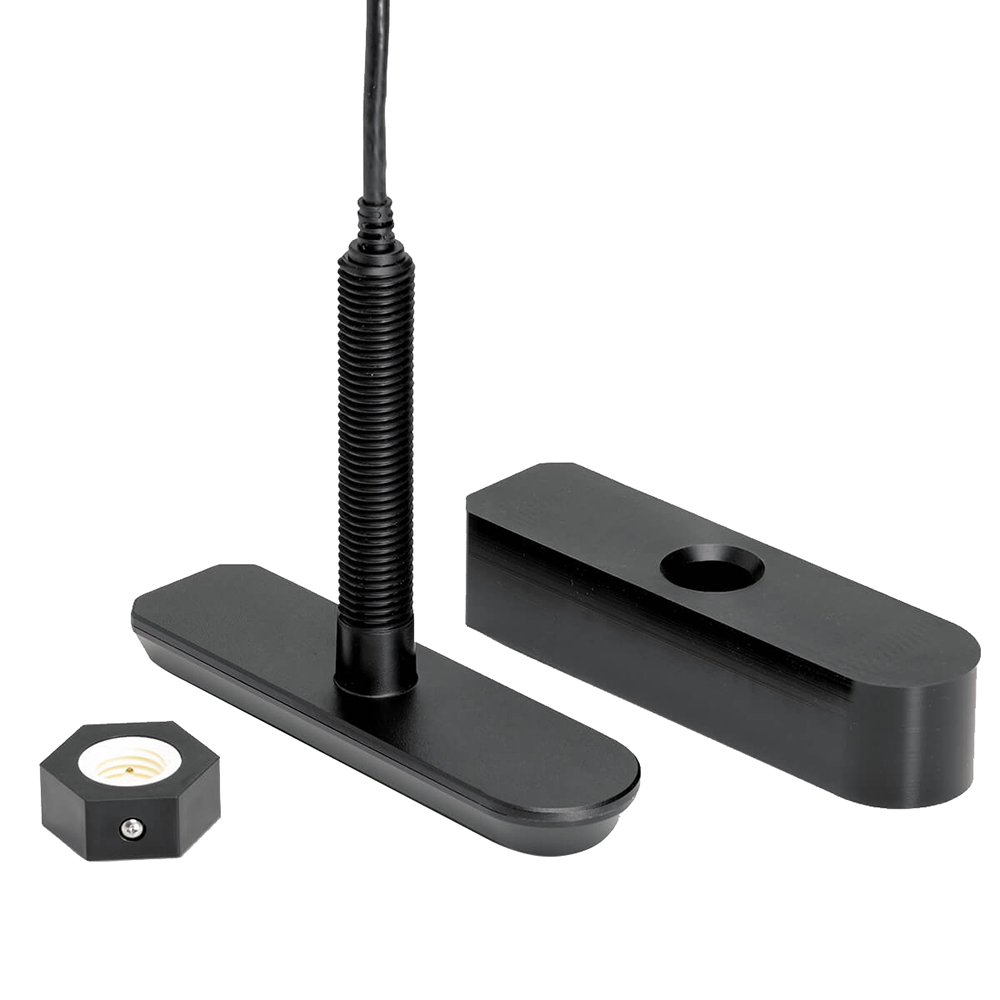

Humminbird XPTH 14 HW MSI T Plastic Thru Hull Transducer

80808
Humminbird

$479.99 $381.84

1 in stock
Qty :
,

Description

XPTH 14 HW MSI T Plastic Thru Hull Transducer

SOLIX MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP plastic thru hull transducer. This transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 30’ cable.

Features:

  • This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2
  • MEGA Side Imaging Frequencies – Max Range (side-to-side): 455kHz: 440-500 kHz – 800ft (244m), 800kHz: 790-850 kHz – 250ft (76m), MEGA SI+: 1075-1150 kHz – 400ft (122m)
  • MEGA Down Imaging Frequencies – Max Depth: 455kHz: 440-500 kHz – 400ft (122m), 800kHz: 790-850 kHz – 250ft (76m), MEGA DI+: 1075-1150 kHz – 200ft (61m)
  • Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
  • Dual Spectrum CHIRP Max Depth: 1200ft (365m)
  • Dimensions: L 8.4″ x W 2.3″ x D 1.0″ – Stem Length 5″, Stem Diameter 1″
  • 1-Year Limited Warranty

Imagining = Standard/Down/Side | Chirp = High Wide | Cable Length (Feet) = 30' | Speed Included = No | Mounting Style = Thru-Hull | Temperature = Yes | Pins = 14

Additional information

Weight 2.9 lbs
Dimensions 15 × 10 × 4 in
Model Number 710294-1
UPC 082324053283
