Description

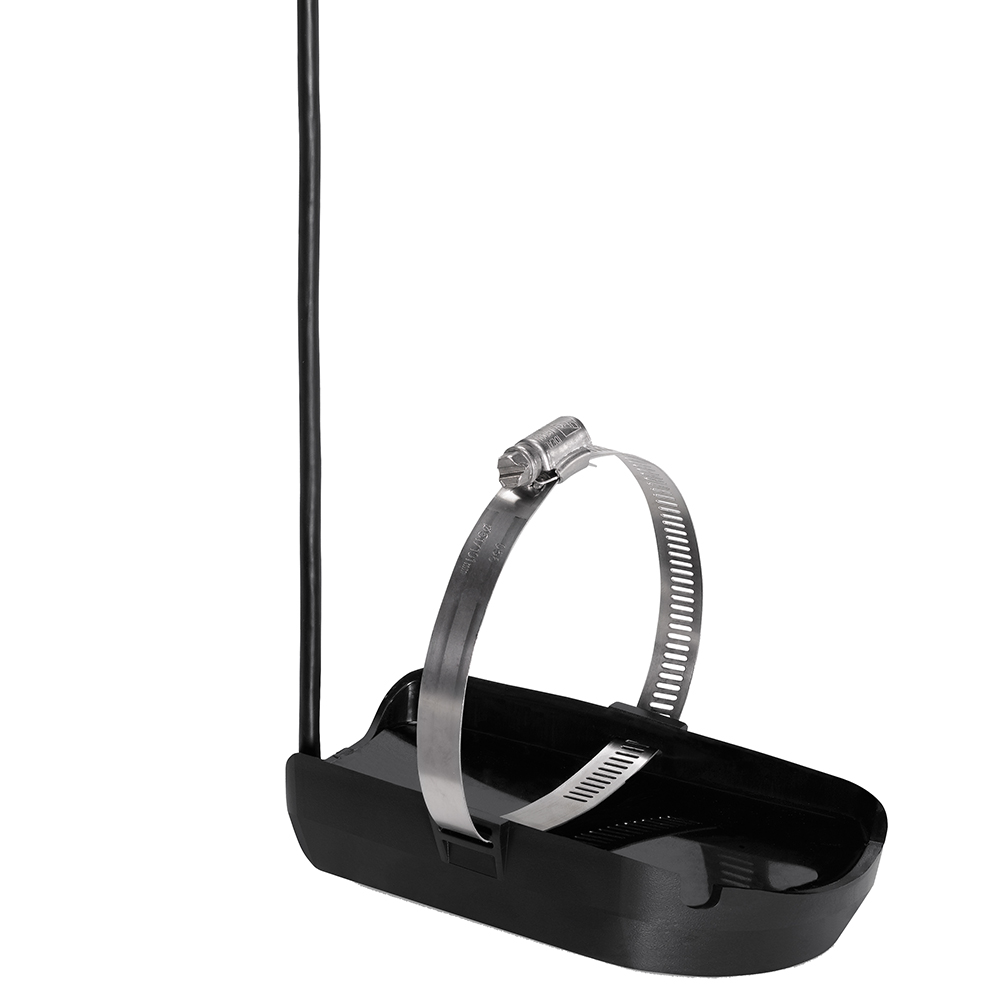

XTM-9-HW-MDI-75-T MEGA DI Dual Spectrum CHIRP Trolling Motor Transducer with Temp for HELIX® 7/8 MEGA DI

MEGA Down Imaging Trolling Motor Transducer supports MEGA Imaging/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 20’ cable.

Features:

• This accessory is compatible with the following Humminbird products: HELIX 7 CHIRP MEGA DI GPS G3, HELIX 7 CHIRP MEGA DI GPS G3N, HELIX 8 CHIRP MEGA DI GPS G3N.
• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)
• MEGA Down Imaging Frequencies – Max Depth: 455kHz: 440-500 kHz – 350ft (107m), MEGA DI: 1075-1150 kHz – 125ft (38m)

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Owner Manual

Mounting Style = Trolling Motor | Cable Length (Feet) = 20' | Imagining = Standard/Down | Chirp = High Wide | Temperature = Yes | Speed Included = No | Pins = NONE
