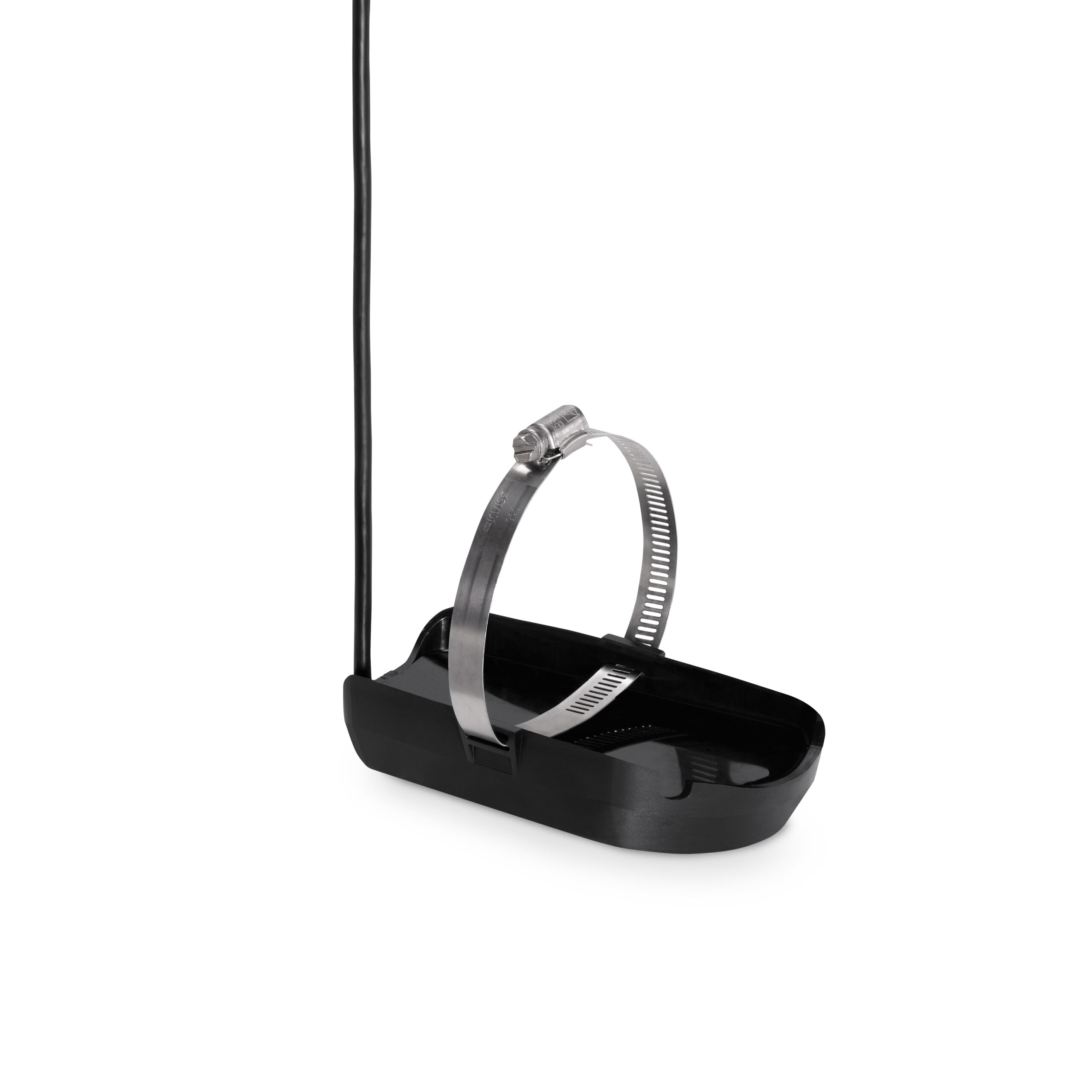

Humminbird XTM-9-HW-MSI-150-T Transducer W/Temp

HUM7102981
Humminbird

$209.99 $166.85

5 in stock
Qty :

Description

Humminbird XTM-9-HW-MSI-150-T

Model: 710298-1

  • This accessory is compatible with the following Humminbird products: HELIX 7 CHIRP MEGA SI GPS G3, HELIX 7 CHIRP MEGA SI GPS G3N.
  • Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
  • Dual Spectrum CHIRP Max Depth: 1200ft (365m)
  • MEGA Side Imaging Frequencies – Max Range (side-to-side): 455kHz: 440-500 kHz – 480ft (146m), MEGA SI: 1075-1150 kHz – 250ft (76m)
  • MEGA Down Imaging Frequencies – Max Depth: 455kHz: 440-500 kHz – 125ft (38m), MEGA DI: 1075-1150 kHz – 75ft (23m)

MEGA Side Imaging Trolling Motor Transducer supports MEGA Imaging/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 20’ cable.

Specifications

Mount Type Trolling Motor
Sonar Type MEGA Imaging, Dual Spectrum
Current Models HELIX 7, HELIX 8

Additional information

Weight 3.00 lbs
Model Number 710298-1
UPC 082324053511
