Description

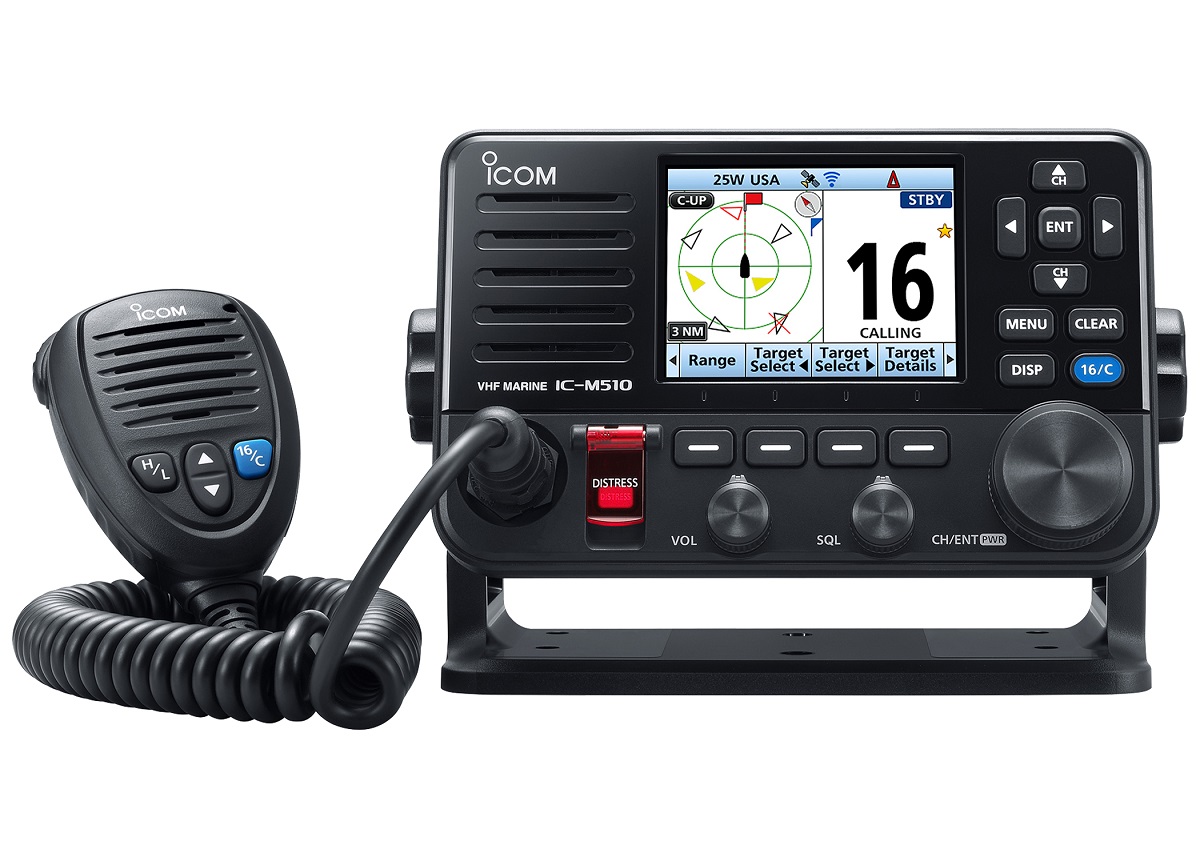

Icom M510 PLUS AIS VHF Radio
Model: M510 PLUS 21 USA
- Active Noise Canceling
- NMEA 0183/HS connectivity
- Integrated GNSS receiver (Selectable from either internal receiver or use UX-241 GNSS antenna)
- IP68 advanced waterproofing (1 m depth of water for 60 minutes)
- Automatic Foghorn function (CT-M500 required)
- Voice Scrambler with optional UT-112A
- AquaQuake™ prevents audio degradation from a water-logged speaker
- Supplied speaker-microphone, HM-205RB can be connected to the rear panel
- External speaker connection
- Controlled with COMMANDMIC™ HM-195GB/GW
- Supports 4-digit channels
Icom’s new Class D DSC fixed mount VHF marine transceiver, the M510 is a tech-laden powerhouse. The M510 is nearly half the depth of the M506, allowing installation in more confined spaces. The large color display has a simple user interface allowing casual and serious boaters alike with plenty of options to communicate. Additionally, command and control using iOS® and Android™ smart devices with class leading features such as wireless calling.
The M510 includes a full color 3.5″ TFT LCD screen with a near 180-degree viewing angles. The standard marine user interface is enhanced with animated functions and night mode for optimal viewing in the dark.
The RS-M500 app allows you to connect three iOS® or Android™ smart devices to function as a wireless command speaker/microphone. Use the push-to-talk features, scroll/scan channels, as well as use the M510’s intercom function from the comfort of the captain’s seat. Additionally, one COMMANDMIC™ can connect while 3 other smart devices are linked.
Connect to NMEA 2000 with the optional CT-M500 wireless interface box. If the NMEA connection is on a different part of the boat, the CT-M500 can wirelessly connect with the M510, providing flexibility on placement. Additionally, with the optional SP-37 horn speaker, the CT-M500 can access the two-way hailer/PA functions.
With its integrated AIS receiver or external NMEA sentence (third party AIS receiver, transponder), the IC-M510 can show real-time AIS vessel traffic information on the display. You can directly make an individual DSC call to selected AIS targets from the AIS screen.
Specifications
| General | |
| Usable channels | USA, INT, CAN, WX channels |
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)* |
| Power supply requirement | 13.8V DC (11.7—15.9V DC) |
| Current drain TX (25W output) | 5.0A |
| Current drain RX (Max. Audio) | 3.3A |
| Operating temperature range | —20°C to +60°C; —4°F to +140°F |
| Antenna impedance | 50 Ohm |
| Transmitter | |
| Output power (at 13.8V DC) | 25W, 1W |
| Max. frequency deviation | +/- 5.0 kHz |
| Frequency tolerance | +/- 0.5 kHz |
| Spurious emissions | Less than -70 dBc (at 25W) |
| Residual modulation | More than 40 dB |
| More than 40 dB | More than 70 dB |
| Receiver | |
| Sensitivity (at 12dB SINAD) DSC (1% BER) | 0.32 µV typical 0.89 µV emf typical |
| Adjacent channel selectivity DSC (1% BER) | More than 75 dB More than 73 dBµ emf |
| Spurious response DSC (1% BER) | More than 75 dB More than 73 dBµ emf |
| Intermodulation DSC (1% BER) | More than 75 dB More than 68 dBµ emf |
| Hum and noise | More than 40 dB |
| Audio output power at 10% distortion | More than 15W with a 4Ω external speaker |
| Wireless LAN | |
| Wireless LAN standard | IEEE 802.11 b/g/n |
| Authentication and Encryption | WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES) |
| Channels | 1 to 13 (2.4 GHz band)** |
| Output power | Less than 10 mW/MHz |
What’s in the Box:
- M510 PLUS AIS VHF
- Speaker microphone, HM-205RB
- Microphone hanger
- DC Power Cable
- Mounting Bracket Kit
