Description

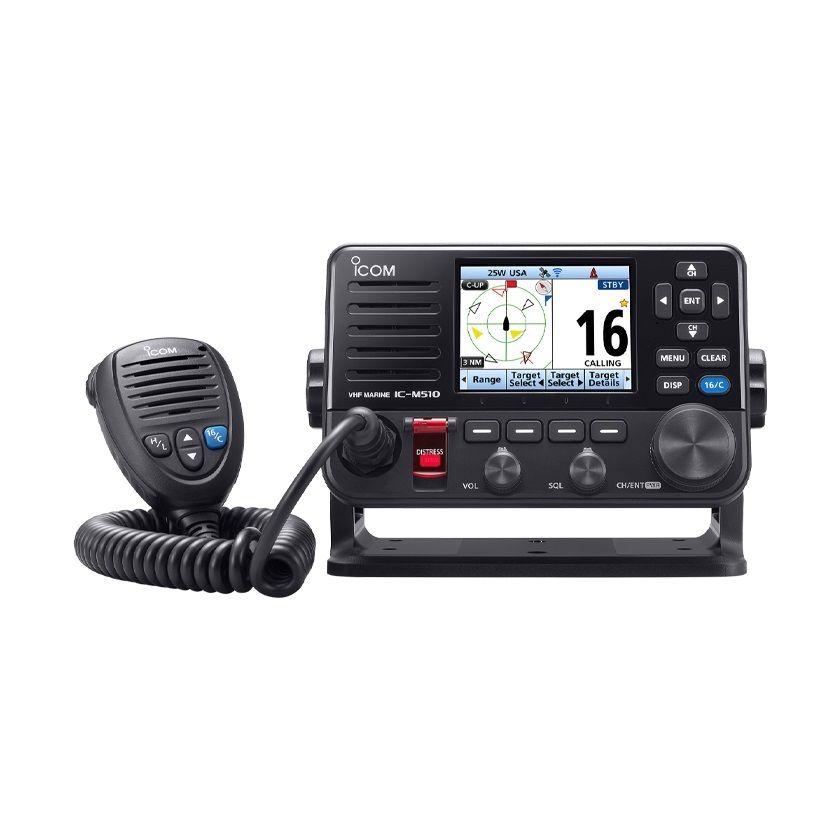

ICOM M510 Plus EVO Class-D DSC VHF Marine Radio with AIS and NMEA 2000™ and WLAN Function
Model: M510 PLUS EVO 51 USA
- Integrated GNSS receiver (selectable from either internal GPS antenna or use optional UX-241 GNSS antenna)
- IP68 advanced waterproofing (1 m depth of water for 60 minutes)
- Voice Scrambler with optional UT-112A
- AquaQuake™ prevents audio degradation from a water-logged speaker
- Supplied HM-205RB speaker-microphone can be connected to either the front or rear panel to meet to user’s requirement
- External speaker connection
- Optional HM-195 CommandMic™ are available
- Supports 4-digit channels
- Supplied waterproof flash mount gasket for panel mount
The IC-M510 EVO is a multifunctional and stylish VHF marine transceiver that also features innovative smartphone operation technology. Its built-in class D DSC provides essential maritime communication, supporting safety on the water. Integration with built-in NMEA 2000™ connectivity and two-way hailer/RX hailer functions enhances your experience at sea even more. Simple remote control through a smart device enables an unprecedented onboard communication experience. In addition, the product features a color display, navigation functions, and a stylish design that won an iF design award. It can be used for pleasure boats, fishing boats, sailing, as well as in rescue and public safety.
The NMEA 2000™ network provides plug-and-play data communication to inter-connect with other marine equipment such as an MFD (Multi-Function Display.) The radio can send GNSS (GPS) position, AIS information*, DSC call, and radio channel data to other equipment.
When connected to the optional SP-37 speaker horn, you can talk with the crew on the deck or shore via the radio’s microphone and hear any reply via the horn speaker. The RX hailer function lets you to listen the radio traffic on the deck or tower through the hailer speaker. You can also sound foghorn patterns from the hailer speaker.
Use the RS-M500 app (for iOS/Android) to wirelessly control the IC-M510 EVO through the radio’s WLAN feature. You can use up to three smart devices as a wireless microphone, intercom between a device and the M510, and a simple remote control for specific functions.
The IC-M510 series (including IC-M510 EVO) is a winner in the world-renowned iF DESIGN AWARD 2022. The radio can be installed in either panel or trunnion mounting and has a sleek design that looks great on a boat’s black glass cockpit dashboard.
The color TFT LCD provides nearly a 180-degree viewing angle. The wide-viewing angle display has high-resolution characters and function icons. Hold down the DISP key to switch the Night mode screen, ensuring good readability in low light conditions.
With just a press of the "DISTRESS" button, the built-in DSC (Digital Selective Calling) system can digitally transmit distress information to the Coast Guard and/or other vessels. The DSC watch function continuously monitors the DSC channel (Ch. 70) for added safety and security.
The built-in waterproof speaker enhances the received audio and provides powerful, clear audio.
With its integrated AIS receiver*1 or external NMEA sentence*2, the IC-M510 can show real-time AIS vessel traffic information on the display. You can directly make an individual DSC call to selected AIS targets from the AIS screen.
Specifications
| General | |
| Usable channels | USA, CAN, INT, WX channels |
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (AIS)*1 |
| Power supply requirement | 13.8 V DC (11.7 ~ 15.9 V DC) |
| Current drain | |
| TX 25 W output | 5.0 A |
| RX Max. audio | 1.6 A 2.0 A (with HM-195) 4.0 A (with extSP) 7.3 A (with ext SP, RX hailer, and HM-195) |
| Antenna impedance | 50 Ohm |
| Dimensions (W x X x D) | 175 x 110 x 53 mm, 6.8 x 4.3 x 2.1 in |
| Weight (approx.) | 730 g, 1.6 lb (not including microphone) |
| Transmitter | |
| Output power (at 13.8 V DC) | 25 W, 1W |
| Max. frequency deviation | ±5 kHz |
| Frequency tolerance | ±0.5 kHz |
| Spurious emissions | Less than ?70 dBc (at 25 W) |
| Residual modulation | More than 40 dB |
| Adjacent channel power | More than 70 dB |
| Receiver | |
| Audio output power (at 10% distortion with 4 ?) | More than 15 W (external speaker) 20 W typical (RX Hailer) 25 W typical (Hailer) |
| Wireless LAN | |
| Wireless LAN standard | IEEE802.11 b/g/n |
| Authentication and Encryption | WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES) |
| Channels | 1 to 13 (2.4 GHz band)*2 |
| Output power | Less than 10 mW/MHz |
What’s in the Box:
- M510 PLUS EVO 51 USA
- Speaker microphone, HM-205RB
- Microphone hanger
- DC power cable
- Mounting bracket kit
- Flash mount gasket
