Description

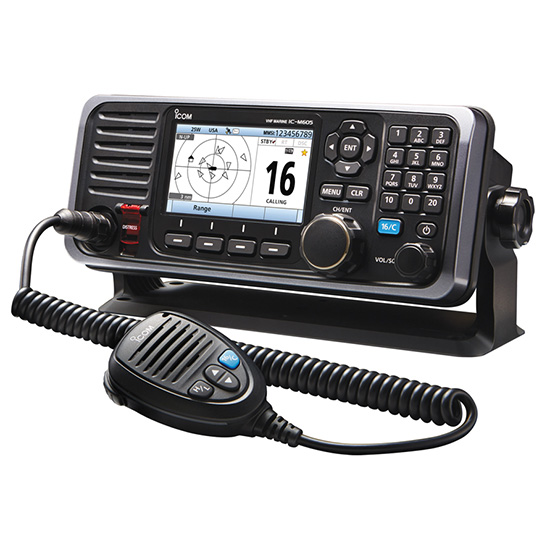

Icom M605 VHF fixed mount with color display and rear mic connector
Model: M605 31 USA
- 4.3 in wide color TFT LCD
- Night mode ensures readability in dark places
- Intuitive user interface
- NMEA2000TM and NMEA0183 connectivity
- Class D DSC
- Active noise cancelling
- Last call voice recording
- 30W listen back hailer
- Built-in horn/foghorn
- IPX8 submersible (1 m depth of water for 60 minutes)
- Dual and Tri-watch functions
- Weather channels with alert function
- DSC Multi-task function
- AquaQuakeTM draining function
- Instant-access button for Channel 16 and call channel
- Supplied speaker microphone, HM-205RB can be connected to the rear panel
All functions of the IC-M605 (including DSC and distress operation) can be
remotely controlled with up to three controllers, RC-M600 COMMAND
HEAD and/or HM-195 series COMMANDMICTM, with an intercom function
available among the main radio and controllers. The system allows
for maximum operating flexibility anywhere on your boat.
A combination of the directional keypad and soft keys provides
simple operation. Most used functions are assigned to soft keys (at
the bottom of the display) for quick one push function access. The large
ten-key pad enables you to smoothly enter channel numbers, MMSI numbers
with ID names and so on.
The IC-M605’s internal speaker enhances intelligibility of received
calls. The waterproof, paper speaker-cone provides superior
sound quality with a wide frequency range and a flat frequency response for
powerful, yet clear audio.
A weak signal adjacent to a strong signal can be clearly received by
the IC-M605. Its commercial grade receiver performance (selectivity
and IMD: more than 80 dB) provides reliable communication at all times.
The GNSS (GPS, GLONASS and SBAS) receiver is integrated
in the IC-M605. Position information can be simply received
with connection to the supplied GNSS antenna with 5 m cable, UX-241.
The Active Noise Canceling digitally removes background
noise from both transmit and receive audio and provides clear
communication in a noisy maritime environment.
When connected to the optional horn speaker, SP-37, you
can talk with crews on the deck or shore from the radio’s
microphone and can hear any reply via the horn speaker. Also available
the RX hailer function and four patterns of automatic foghorn.
The last call voice recording function automatically saves up to two
minutes of an incoming call. Don’t miss any incoming messages.
Using NMEA 2000TM connectivity, the radio can exchange
GNSS, AIS reports, DSC call information data, radio frequency
and PGN list data on the network. NMEA 0183/-HS GNSS position data
can also be converted to NMEA 2000TM data for other equipment
With an optional voice scrambler unit, UT-112, the IC-M605
provides 32 tone secure conversation. This function is useful
when you want to share private information with consort ships.
Specifications
| USA, CAN, INT, WX channels | |
| Operating temperature range | -20 degC to +60 degC; -4 degF to +140 degF |
| Antenna impedance | 50 Ω (SO-239) |
| Transmitter | |
| Output power (at 13.8 V DC) | 25 W, 1 W |
| Max. frequency deviation | +/- 5 kHz |
| Frequency tolerance | +/- 5 ppm |
| Spurious emissions | Less than -70 dBc (at 25 W) |
| Residual modulation | More than 40 dB |
| Adjacent channel power | More than 70 dB |
| Receiver | |
| Intermediate frequency CH70 | 30.15 MHz, 450 kHz (1st/2nd) 21.70 MHz, 450 kHz (1st/2nd) |
| Sensitivity (at 12 dB SINAD) CH70 (1% BER) | 0.22 μV typical 0.71 μV emf typical |
| Adjacent channel selectivity CH70 (1% BER) | More than 80 dB More than 80 dBμ emf |
| Spurious response CH70 (1% BER) | More than 77 dB More than 73 dBμ emf |
| Intermodulation CH70 (1% BER) | More than 80 dB More than 73 dBμ emf |
| Hum and noise | More than 40 dB |
| Audio output power (at 10% distortion) |
More than 15 W with a 4 Ω external speaker |
| Input Voltage | 13.8 V DC (11.7-15.9 V DC) |
| Input Draw | Tx 25 W output 6A Rx Max. audio 8A |
What’s in the Box:
- M605
- Hand microphone (HM-205RB)
- GNSS antenna (UX-241)
- PC power cable
- Mounting bracket kit
- OPC2384 Adapter Cable
