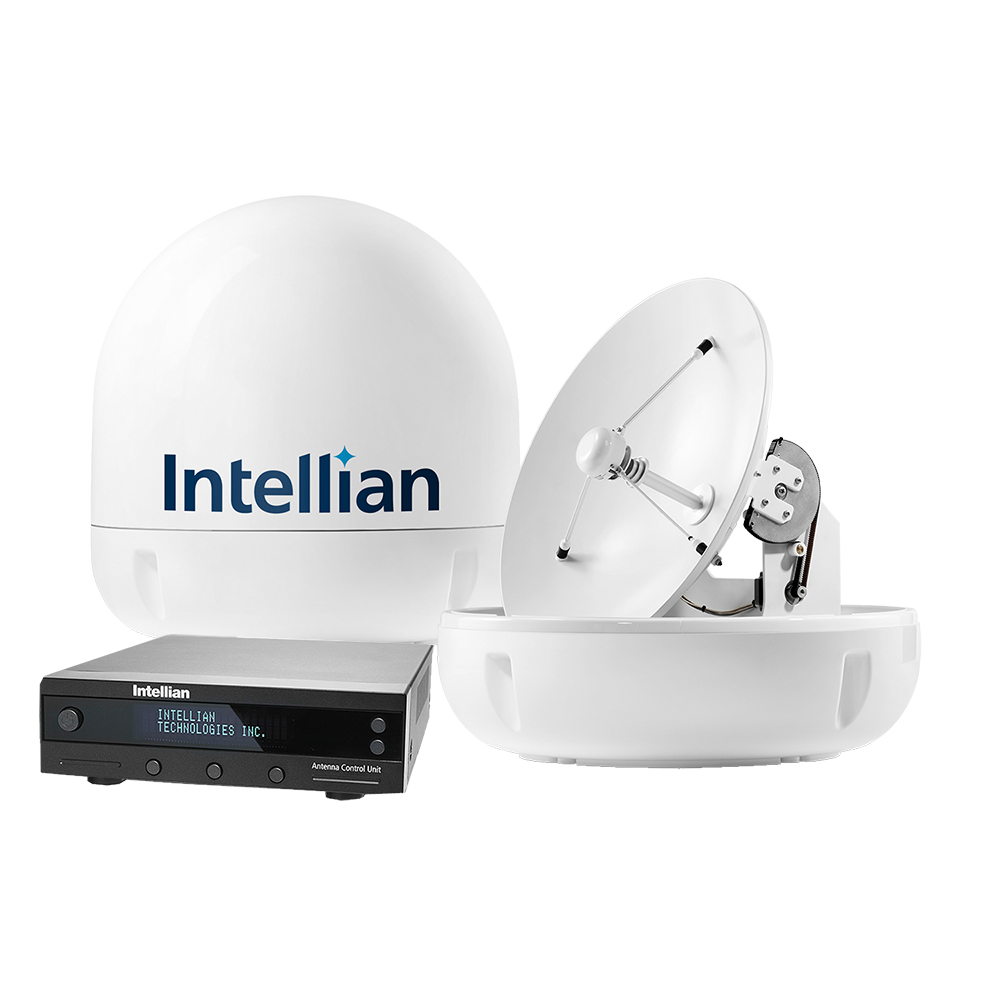

Intellian i6W 2-Axis Global System w/23.6″ Reflector & Worldview LNB Gen 2

60652
Intellian

$8795.00 $6378.14

0 in stock
Qty :

Description

i6W 2-Axis Global System with 23.6″ Reflector & Worldview LNB Gen2

*Must Ship Truck Freight

The available i6W is equipped with Intellian’s WorldView LNB, which allows for complete global operation without needing to adjust the antenna.

WorldView ready, the Intellian i6W is ideal for larger yachts or commercial
vessels traveling across different global regions. With its highly accurate
satellite tracking capability, the i6 outperforms in all conditions.

Intellian’s best-selling system, the i6W is renowned for its robustness and exceptionally strong signal gain. Great for extended offshore voyaging, the i6W is ideal for ocean cruisers, larger yachts and commercial vessels.

The i6W can operate in any global coverage area without manual intervention.

Fully Automated System
Automatic Satellite Search and Identification Function 2-axis high speed tracking system.

High Performance Antenna
60 cm (24 in) diameter parabolic antenna for receiving Ku-Band satellite signals. Circular or linear polarization depending on region and LNB selected. Built-in HD module for Ku-band HD TV reception.

Quick & Quiet Technology
Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort. The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere.
Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas.

Antenna Control Unit
Intuitive controls and digital satellite information display on the ACU.
Wireless automated updates and diagnostics via Aptus PC and Aptus Mobile DC Out Port for easy power supply to the Intellian MIM or the Shaw Decoder Module.

Multiple Receiver Capability
Multiple receivers and TVs can be connected using a Multi-Switch (M2-TD02) sold separately or the Intellian MIM (Multi-Satellite Interface Module). Using the MIM a master receiver can be selected to control the target satellite. In North America, when using Dish Network or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like you do at home.

Built-in GPS and NMEA 0183 Interface
The i6 includes a built-in GPS inside the Antenna Unit for faster signal acquisition. The ship’s GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU.

Stylish Radome Profile
70 cm (27.5 inch) antenna radome diameter
Antenna weighs less than 20 kg (44 lbs)

What’s in the box?

  • All Satellite Systems include the following parts as standard:
  • Antenna & Radome 60 cm (24?) Reflector & LNB
  • ACU (Antenna Control Unit)
  • PC Controller Program (Software CD included)
  • Installation & Operation Manual
  • Installation Template
  • Quick Installation Guide

Installation Kit:

  • ACU Table Mounting Bracket x 2EA
  • 15m (49 ft) x 1EA Antenna-ACU RG6 Coaxial Cable
  • 3m (10 ft) x 1EA ACU-IRD RG6 Coaxial Cable
  • 10m (33 ft) x 1EA DC Power Cable
  • 1.8m (6 ft) x 1EA PC Serial Cable
  • Connectors & Screws

3 Year Global Warranty
Industry leading 3-year parts and workmanship guarantee with a 2-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Owner Manual

Dome Weight (lbs) = 44 lbs | Service Coverage = DirecTV, Dish | Voltage - Input Range (Volts) = 9-30v | Antenna Dish Diameter = 24"

Additional information

Weight 111 lbs
Dimensions 44 × 34 × 33 in
Model Number B4-619W2
UPC 8863100120144
